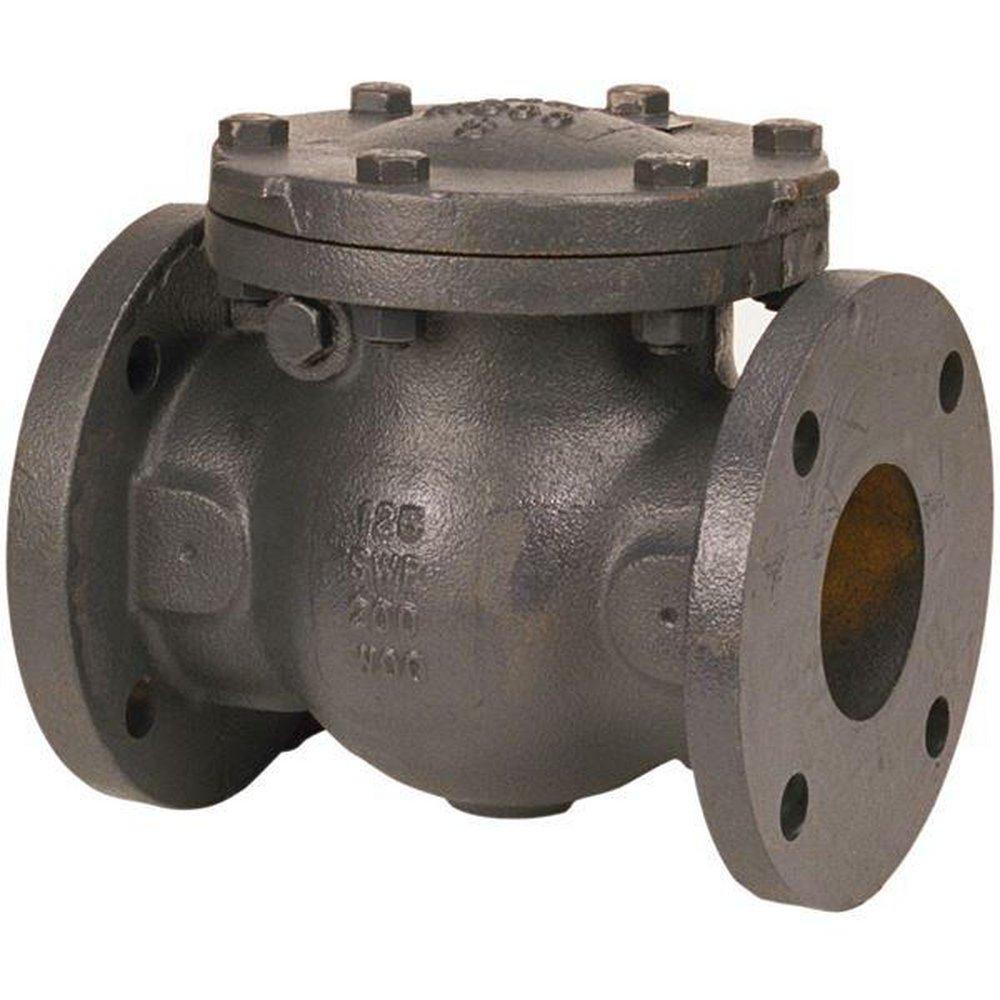

NIBCO NHE300J F-918-B 5 in Cast Iron Flanged Swing Check Valve

Product Description

The NIBCO NHE300J F-918-B is a cast iron flanged swing check valve designed for a variety of industrial applications. This valve operates under a maximum pressure of two hundred psi and is suitable for steam, water, oil, and gas. The renewable seat and disc design ensures effective backflow prevention, automatically sealing when fluid flow reverses. It is specifically designed for configurations where backflow protection is crucial.

• Flanged end style for secure connections
• Lever handle actuator for easy operation
• Bolted bonnet for simple maintenance

Product Highlights

This check valve is built from cast iron and has a bronze trim for durability. It features flanged ends for straightforward installation in commercial and industrial settings.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHE300J

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• End Style: Flanged
• Media: Steam
• Nominal Size: 5 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 150 deg F
• Inlet to Outlet Length: 13 in
• Softgoods Material: Synthetic Fiber
• Trim Material: Bronze
