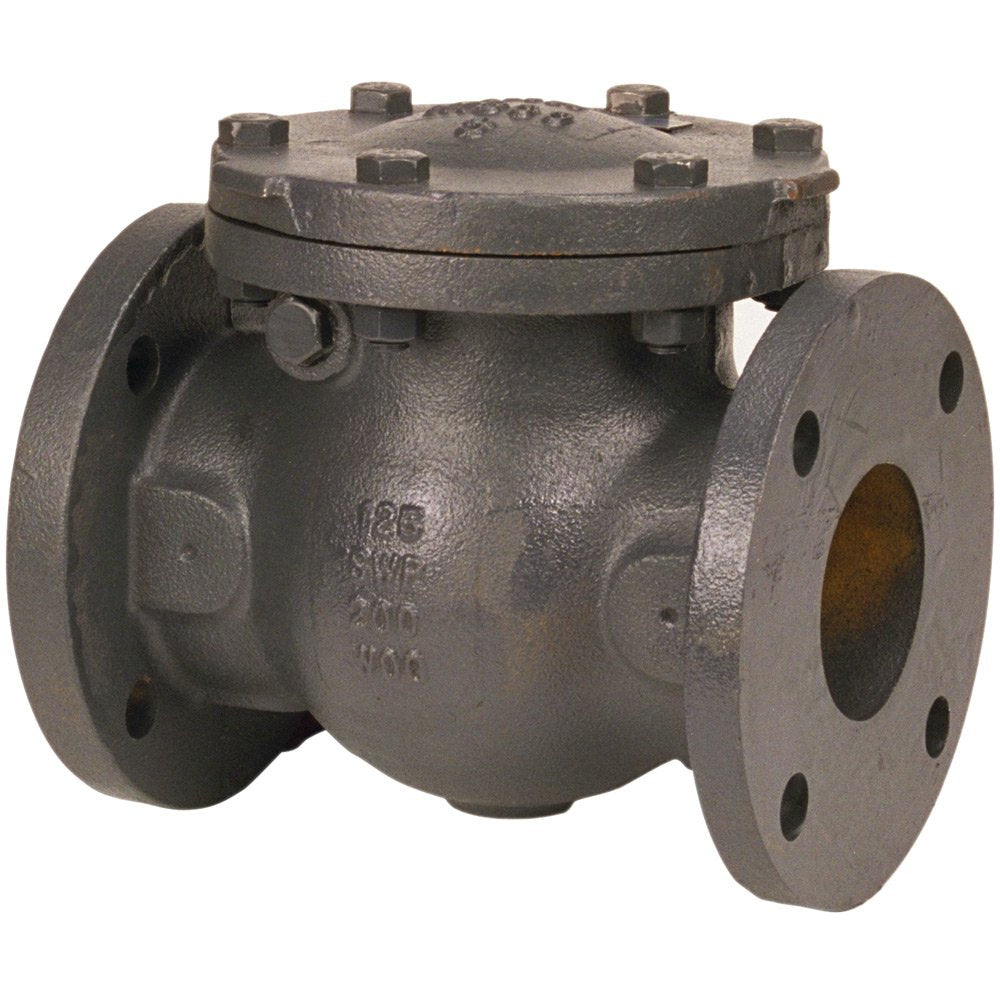

NIBCO NHE300H Cast Iron Check Valve 4 Inch Class 125 Horizontal Swing Bronze Seat Flange NF918BP

Product Description

The NIBCO NHE300H cast iron check valve is engineered for efficiency in industrial and commercial settings, ensuring a robust solution for preventing reverse flow in piping systems. This valve, featuring a horizontal swing mechanism with a bronze seat, is designed for flanged connections and is rated for Class 125.

• Horizontal swing mechanism for reliable backflow prevention.
• Bolted bonnet structure allows for easy maintenance.
• Flanged end connections facilitate simpler installation processes.

Product Highlights

Constructed with a cast iron body, the NIBCO NHE300H supports applications up to 200 psi non-shock cold working pressure and temperatures ranging from -20 to 150 degrees Fahrenheit. It is equipped with a lever handle actuator, providing ease of operation.

Product Information

Standard Information

• Material: Cast Iron
• Pressure Class: 125 lb

Technical Specifications

• Nominal Size: 4 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Trim Material: Bronze
• Applications: Suitable for water, oil, gas, and steam services
• Standards/Certifications: MSS SP-71 Type 1
