Nibco NHE300F F-918-B Check Valve 3 in Flanged

Product Description

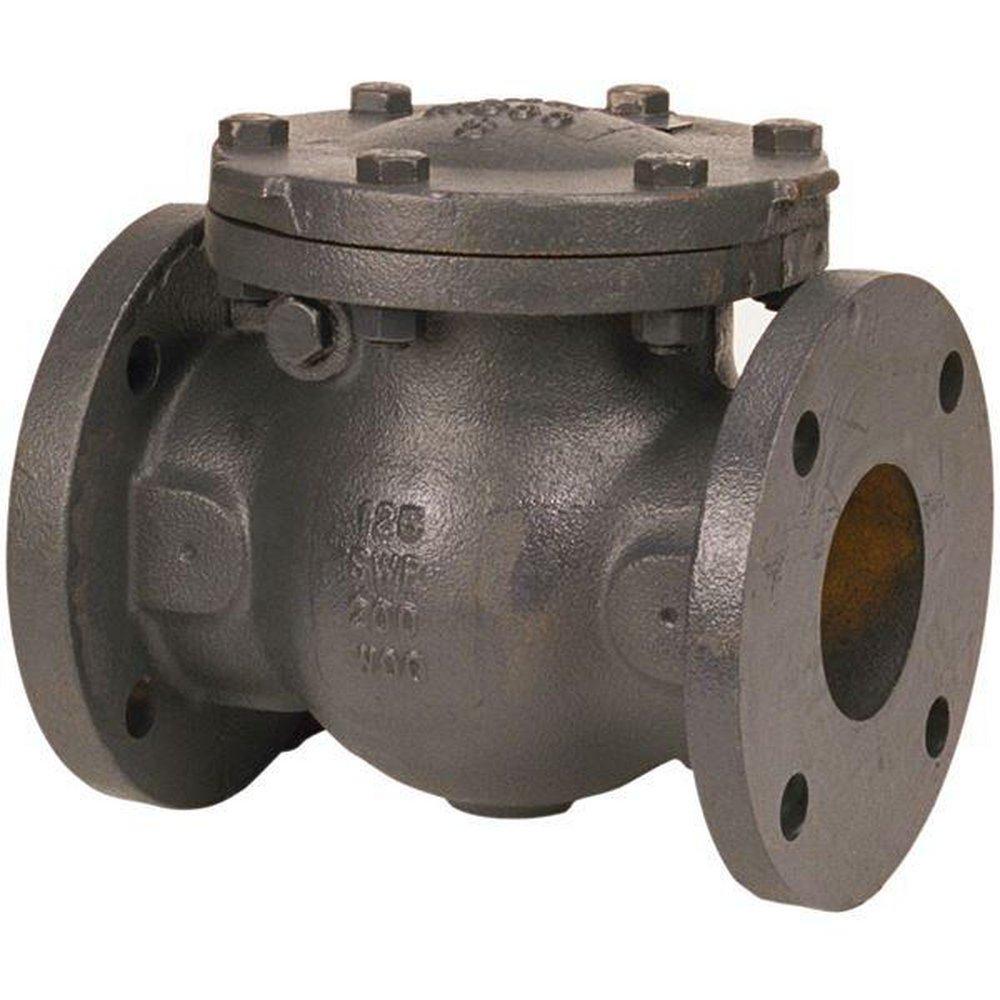

The NIBCO NHE300F cast iron horizontal swing check valve is designed with a renewable seat and disc. This swing check valve prevents backflow by automatically closing when fluid reverses direction. Recommended for commercial and industrial steam, water, oil, and gas services. Features flanged end connections for easy installation.

• Renewable seat and disc
• Prevents backflow
• Class 125 flanged iron body and bronze mounted trim (IBBM)
• Bolted bonnet for maintenance accessibility

Product Highlights

The NIBCO cast iron check valve features flanged end connections for easy installation and is equipped with a bolted bonnet for maintenance accessibility.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NHE300F
• Country of Origin: Domestic

Technical Specifications

• Valve Type: Check Valve
• Material: Cast Iron
• Class: 125
• Connection: Flanged
• Size: 3 in
• Series: F-918-B
• Nominal Size: 3 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 150 deg F
• Body Material: Cast Iron
• Trim Material: Bronze Disc
• Inlet to Outlet Length: 9-1/2 in
• Top to Inlet Center: 5.13 in
• Domestic/Import: Domestic
• Connection Type: Flanged
• Disc Material: Bronze
• Media: Steam
• Pressure Class: Class 125
• Seal Material: Synthetic Fiber
• Seat Material: Brass
• Softgoods Material: Synthetic Fiber
• Model: F-918-B
• Flow Co-Efficient: 327 Cv
• Material Specifications: ASTM A307, ASTM A126 Class B, ASTM A563, ASTM B16, C36000, ASTM A536, ASTM B584, C84400
• Applications: For commercial and industrial steam, water, oil and gas services
• Standards/Certifications: MSS SP-71, type 1 certified
• Opening Size: 7-1/2 in
• Port Type: Full
• Lead-Free/Contains Lead: Contains Lead
