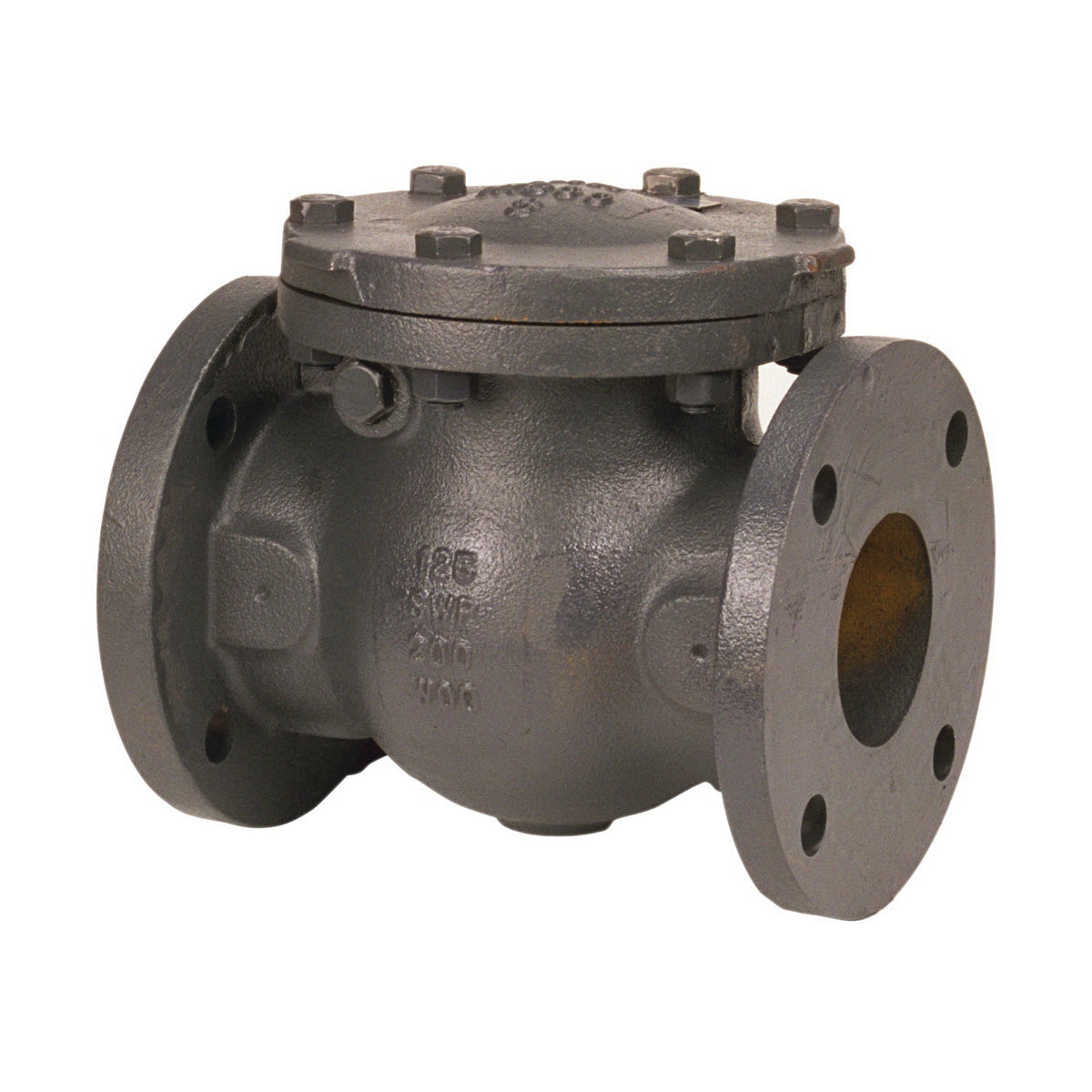

NIBCO NHE300D Swing Check Valve 2 in Nominal Flanged End Style 125 lb

Product Description

The NIBCO NHE300D is a cast iron horizontal swing check valve designed to prevent backflow in various fluid applications. It automatically closes when the fluid reverses direction, making it suitable for commercial and industrial use. This check valve is ideal for services involving steam, water, oil, and gas.

• Class 125 flanged iron body
• Renewable seat and disc
• Bolted bonnet for easy maintenance

Product Highlights

The NIBCO check valve is engineered for ease of installation with flanged end connections. It complies with various industry standards and offers a reliable performance, backed by a five-year warranty.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NHE300D

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Cast Iron
• Trim Material: Bronze
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Nominal Size: 2 in
• Temperature Rating: -20 to 150 deg F
• Inlet to Outlet Length: 8 in
• Top to Inlet Center: 3.94 in
• Softgoods Material: Synthetic Fiber
• Low Lead Compliance: No
