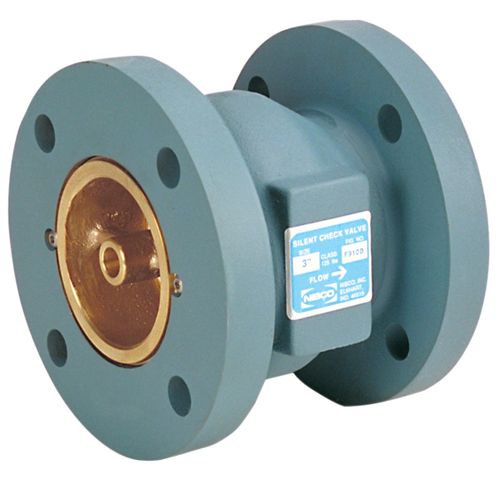

NIBCO NHDY0XE F-910-B-LF 2-1/2 in Cast Iron Flanged Check Valve

Product Description

The NIBCO F-910-B-LF is a cast iron flanged check valve, model NHDY0XE, suitable for various water applications. This valve prevents backflow in commercial and industrial settings. The valve features a spring actuated design for efficient operation and a renewable bronze seat and disc for durability.

• Lead-freecast iron construction
• Pressure rating of 200 psi and a maximum temperature of 200 degrees Fahrenheit
• 5-1/2 inches inlet to outlet length

Product Highlights

This check valve is designed to fit between standard flanges and is used in applications where backflow prevention is critical. The valve complies with industry standards, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NHDY0XE

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 2-1/2 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees Fahrenheit
• Trim Material: Bronze/Alloy/Stainless Steel
