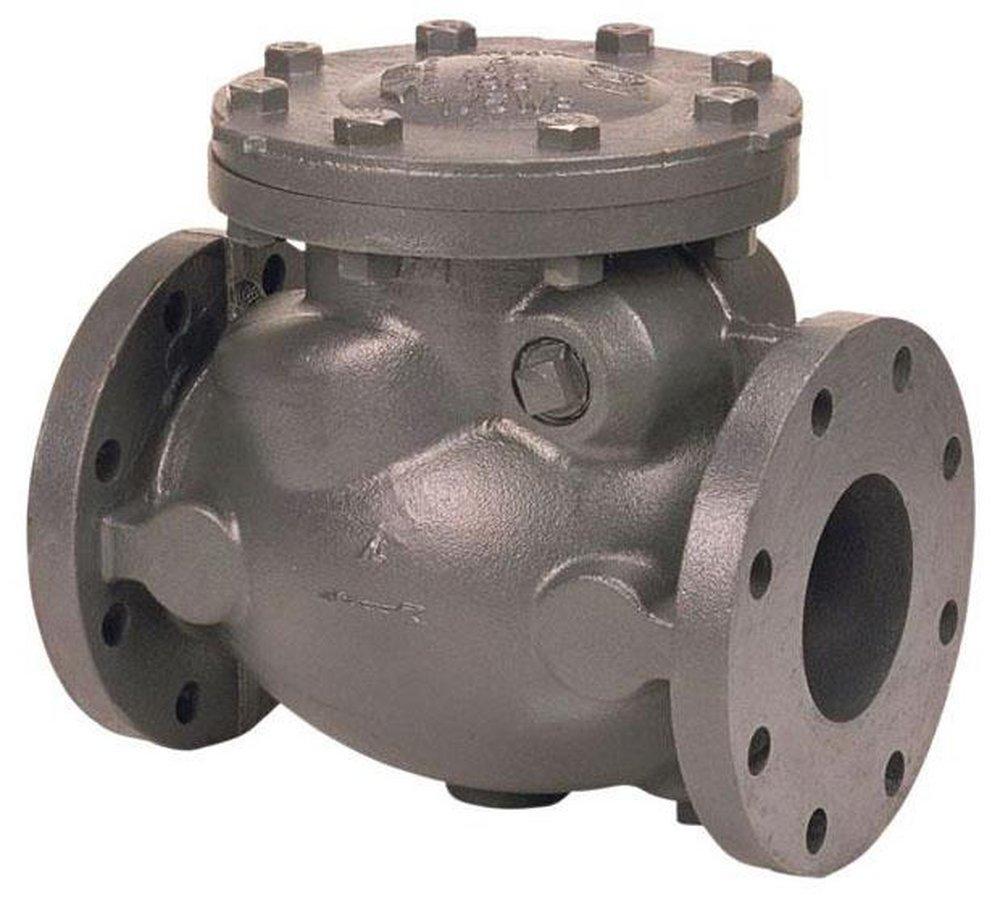

NIBCO NHDX00K F-908-W 6 in 175 psi Cast Iron Flanged Check Valve

Product Description

The NIBCO NHDX00K is a flanged cast iron check valve, with a nominal size of six inches and a maximum water working pressure of 175 psi. This valve is designed to prevent backflow in various applications. It operates on the swing check principle, allowing for effective control of water flow. This valve is commonly used in automatic fire protection systems.

• Flanged end connections for secure installation.
• Renewable seat and disc for long-term use.
• Constructed from durable cast iron to withstand high pressure.

Product Highlights

The NHDX00K is ideal for fire protection, mechanical, and industrial applications. Its robust construction and reliable operation make it a suitable choice for professionals needing dependable valve solutions.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Horizontal

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 6 in
• End Style: Flanged
• Maximum Pressure: 175 psi
• Inlet to Outlet Length: 16-1/4 in
• Media: Water
• Pressure Class: 125 lb
• Specifications Met: ASTM A126 Class B Body, FM Approved, cULus/UL/ULC Listed, MSS SP-71
• Top to Inlet Center: 10.31 in
