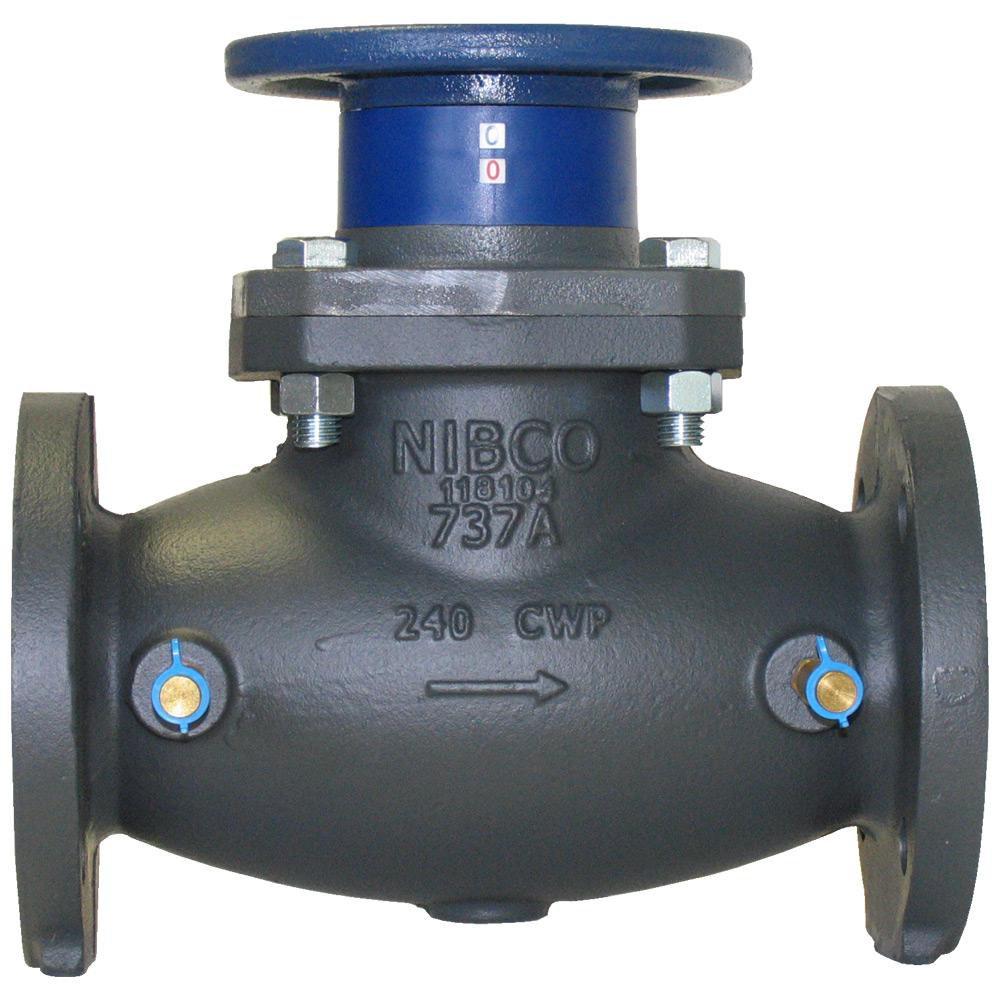

NIBCO NHC801F F-737-A 3 in Cast Iron Flanged Non-Rising Valve Stem Globe Valve

Product Description

The NIBCO NHC801F is a durable globe valve designed for use in various HVAC and plumbing applications. This model is a three-inch flanged valve made from cast iron. It operates effectively under a maximum temperature of two hundred fifty degrees Fahrenheit and a pressure rating of two hundred forty psi.

• Flanged connection for secure installation
• EPDM elastomeric coated disc for positive shut-off
• Integral internal memory stop to retain settings

Product Highlights

The NIBCO F-737-A is ideal for balancing water flow in commercial and mechanical systems, ensuring energy efficiency and optimal performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NHC801F

Technical Specifications

• Body Material: Cast Iron
• Trim Material: Cast Bronze
• Nominal Size: 3 in
• Pressure Rating: 240 psi
• Temperature Rating: 250 deg F
• Inlet to Outlet Length: 12 in
• Top to Inlet Center: 8.15 in
• Connection Type: Flanged
• Series: F737A
• Features: EPDM elastomeric coated disc, Integral internal memory stop, Durable iron body and bonnet
• Applications: HVAC and plumbing systems
