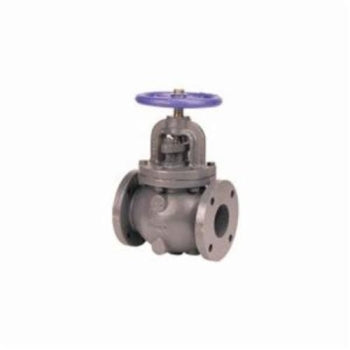

NIBCO NHC300J F-718-B Globe Valve 5 in Nominal Flanged End Style 125 lb

Product Description

The NIBCO F-718-B globe valve features a nominal size of five inches with a flanged end style. This valve is ideal for commercial and industrial applications. It is suitable for hot and cold water, HVAC, steam, and gas services. The valve is a handwheel actuator and comes with renewable seats and discs for easy maintenance.

• Flanged end style for easier installation
• Renewable seats and discs for convenience
• Bolted bonnet for quick access

Product Highlights

The globe valve is designed for throttling or regulating flow in various applications. Choose NIBCO for reliable and efficient performance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NHC300J

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• End Style: Flanged
• Hand Wheel Diameter: 10 inches
• Inlet to Outlet Length: 13 inches
• Media: Water
• Nominal Size: 5 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: F-718-B
• Softgoods Material: Synthetic Fiber
• Top to Inlet Center: 16.5 inches
• Trim Material: Brass
