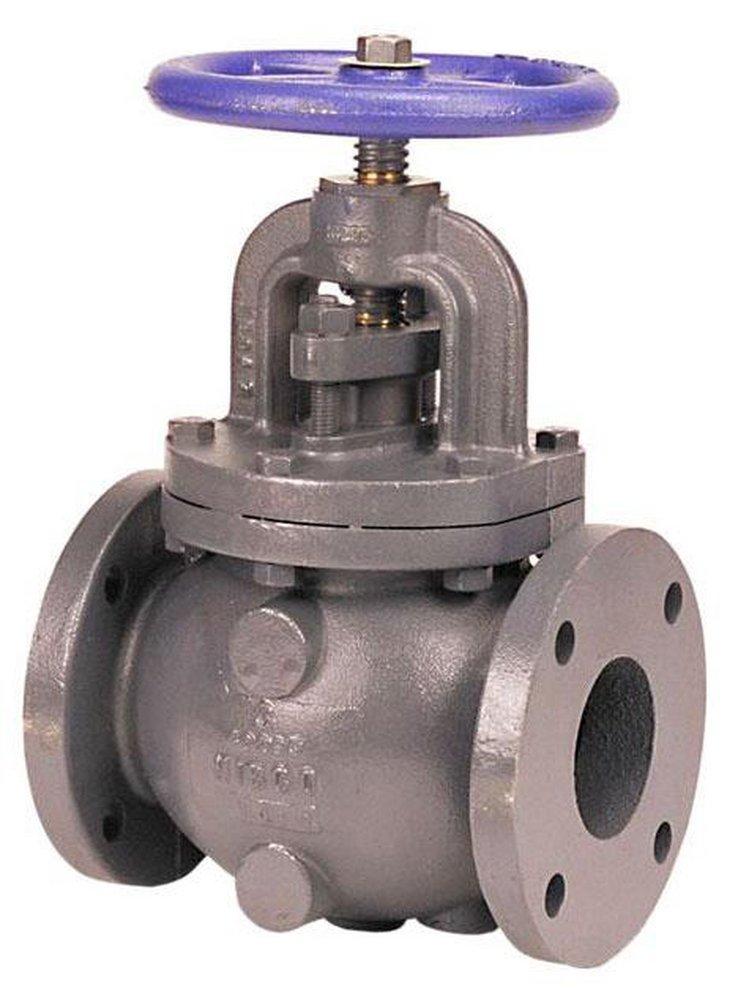

NIBCO NHC300H F-718-B 4 in Cast Iron Flanged Globe Valve

Product Description

The NIBCO® F-718-B globe valve, MPN NHC300H, is designed for commercial and industrial applications. This valve features a flanged end style and is ideal for controlling flow in systems involving hot and cold water, HVAC, steam, and compressed air.

• Bolted bonnet for easy maintenance.
• Renewable seat and disc to extend service life.
• Class 125 pressure rating and suitable for up to 200 psi.

Product Highlights

This globe valve offers reliable operation and is compatible with various media including water and gas. It is built from cast iron with brass trim, ensuring durability and performance in demanding conditions.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHC300H

Technical Specifications

• Nominal Size: 4 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Inlet to Outlet Length: 11-1/2 in
• Top to Inlet Center: 15.81 in
• Body Material: Cast Iron
• Trim Material: Brass
• Actuator Type: Handwheel
• Softgoods Material: Synthetic Fiber
