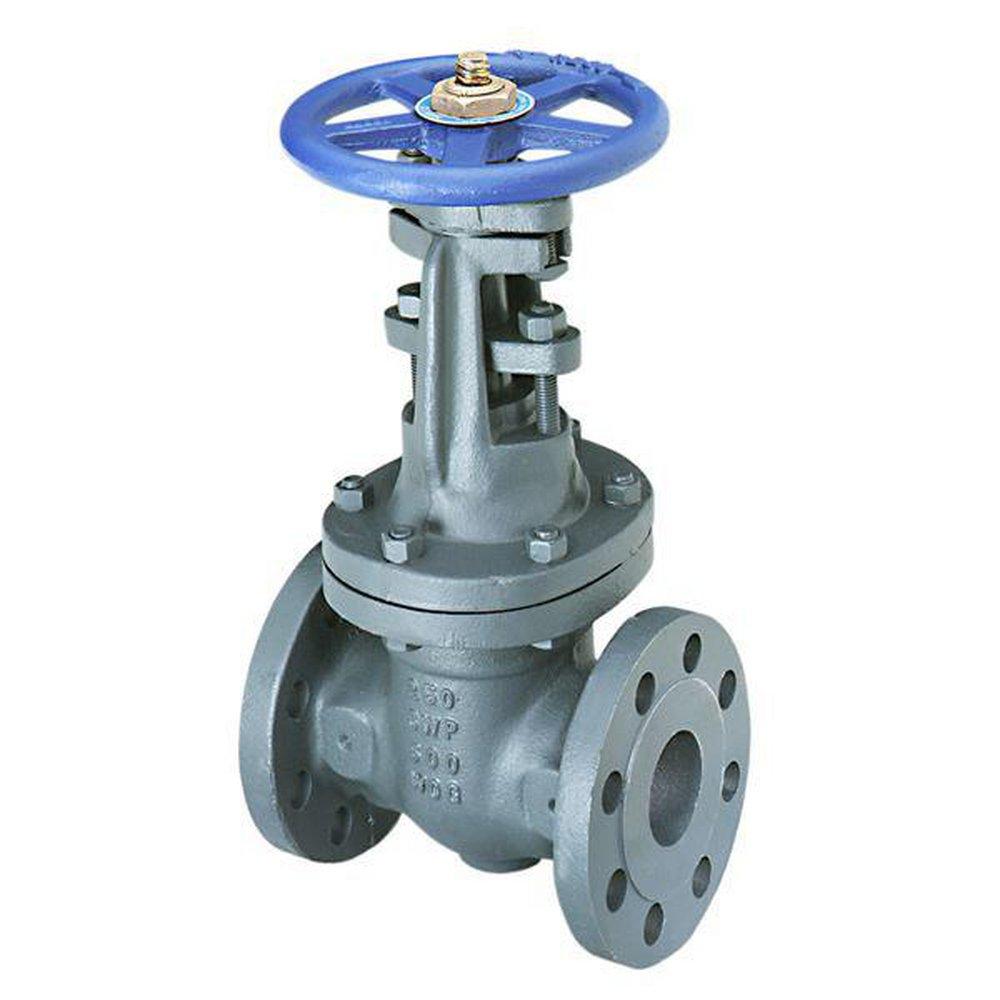

Nibco Nhaw00h F-667-O Gate Valve 4 in Flanged

Product Description

The NIBCO F-667-O cast iron gate valve provides full-flow with minimal pressure drop. Features a Class 250 flanged, raised face end connection for easy installation. Recommended when positive shut-off is required and a quick visual indicator of open/closed position is needed. Suitable for commercial and industrial applications.

• Full Port
• Flanged End Connections
• Iron Body Bronze Mounted (IBBM)
• Outside screw and yoke

Product Highlights

The Nibco gate valve features outside screw and yoke, cast iron bolted bonnet, and cast iron solid wedge.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NHAW00H

Technical Specifications

• End Connections: Class 250 flanged
• Brand: NIBCO
• MPN: NHAW00H
• Connection Size: 4 in
• Connection Type: Flanged
• Item Name: Gate Valve
• Material Specifications: ASTM B16, C36000, ASTM B584, C84400, ASTM A126-B, ASTM B584, C84400, ASTM A307/SAE J429, ASTM A536, ASTM A563, ASTM B783, ASTM B140, C31600
• Material: Cast Iron
• Model: F667-0
• Operator Type: Cast Iron Blue Handwheel
• Pressure Class: Class 250
• Pressure Rating: 500 psi CWP Non-Shock, 250 psi Saturated Steam at 406 deg F
• Seat Material: Bronze
• Stem Material: Copper
• Temperature Rating: -20 to 450 deg F
• UPC Code: 039923699886
• Type: Gate Valve
• Valve Size: 4
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Actuator Type: Handwheel
• Body Material: Cast Iron
• Domestic/Import: Domestic
• End Style: Flanged
• Hand Wheel Diameter: 12 in
• Inlet to Outlet Length: 12 in
• Media: Gas/Water
• Nominal Size: 4 In
• Series: F-667-O
• Softgoods Material: Reinforced Graphite
• Top to Inlet Center: 27 in
• Trim Material: Brass
• Valve Application: Oil, Steam, Water
• Max Pressure: 250 psi
