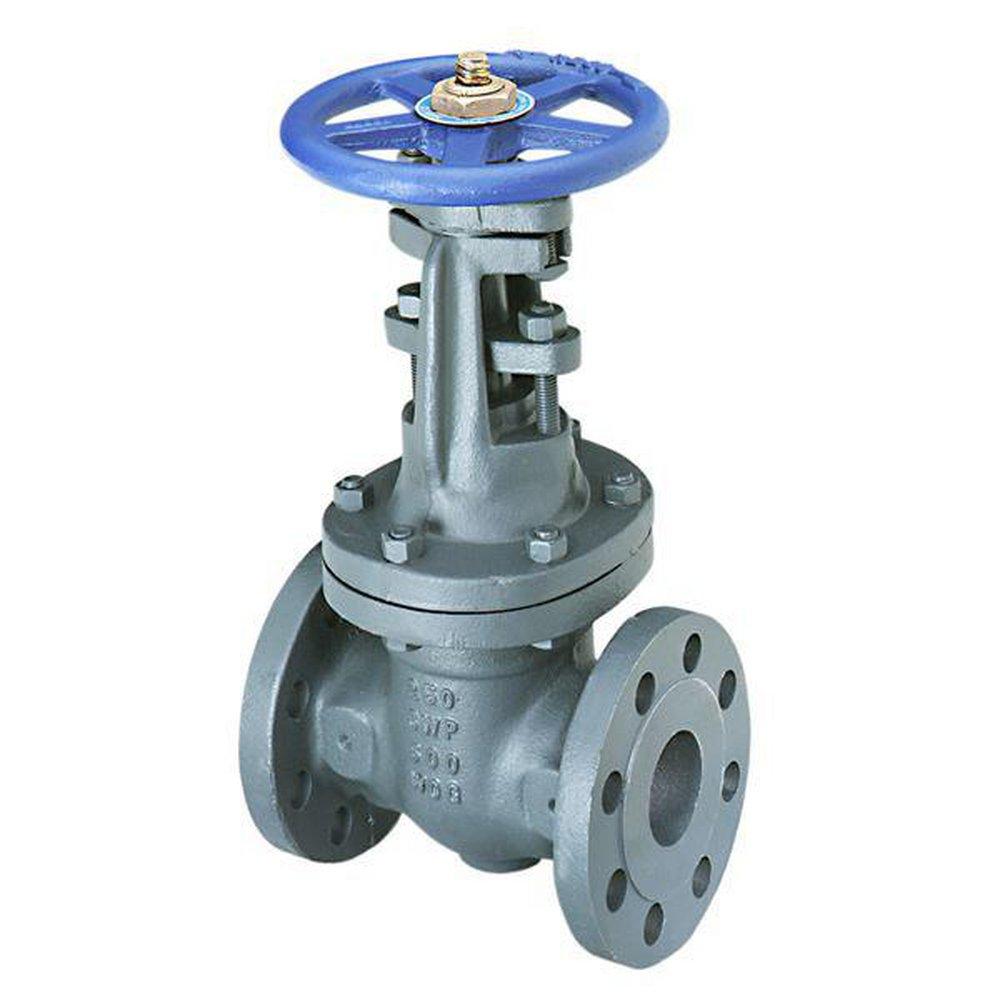

NIBCO NHAW00F F-667-O 3 in Cast Iron Full Port Flanged Gate Valve

Product Description

The NIBCO F-667-O is a three-inch cast iron full port flanged gate valve with MPN NHAW00F. This valve is designed for both commercial and industrial use, suitable for hot and cold water, HVAC systems, steam, gas, and other typical utility services. It operates under a wide range of pressures, with a non-shock cold working pressure rating of five hundred psi. The valve features a bronze mounted iron body and complies with various industry standards.

• Flanged end connections for easy installation
• Maximum temperature rating of four hundred fifty degrees Fahrenheit
• Approved for use in New York City BSA 143-69-SA at three hundred fifty psi non-shock cold water

Product Highlights

This gate valve provides full flow with minimal pressure drop, making it an ideal choice for a variety of plumbing applications.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: NHAW00F

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• Trim Material: Brass
• Pressure Rating: 500 psi
• Nominal Size: 3 in
• Temperature Rating: 450 deg F
• Top to Inlet Center: 20-1/2 in
• Inlet to Outlet Length: 11.12 in
