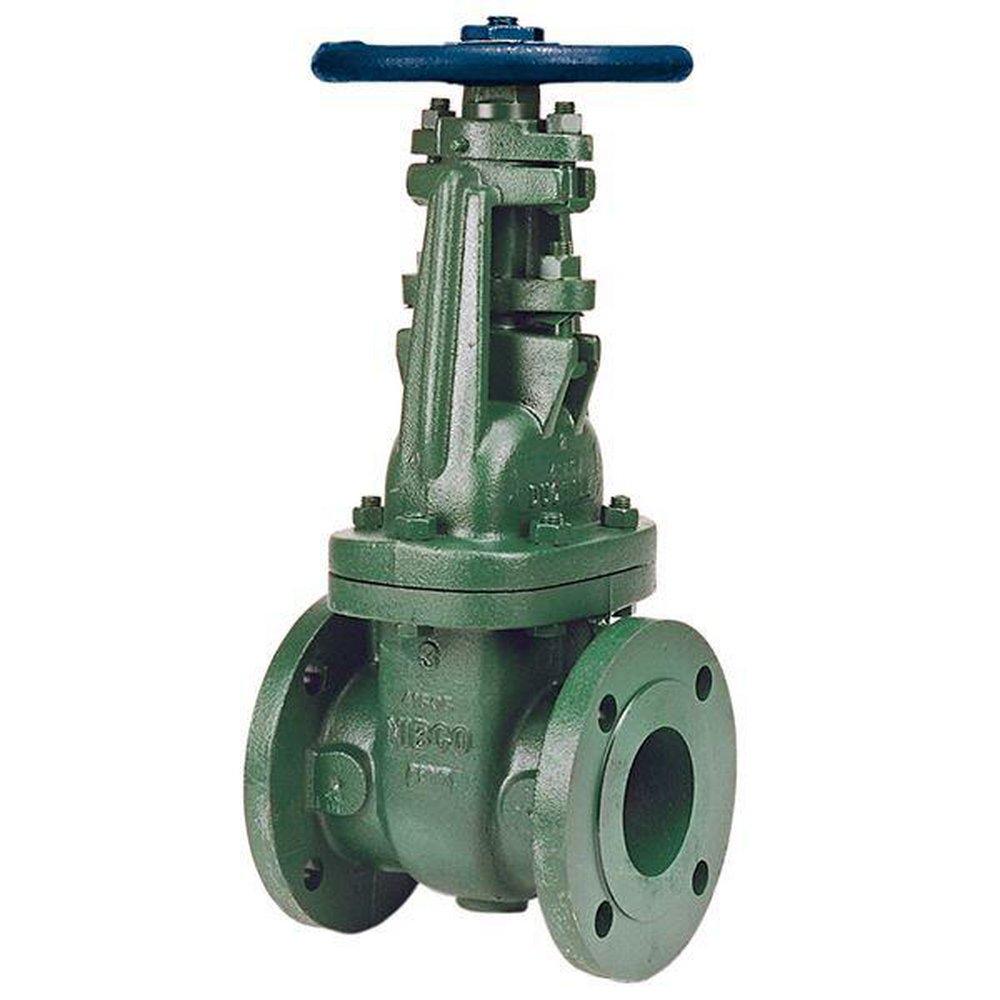

NIBCO NHAL10L F-637-31 8 in Ductile Iron Full Port Flanged Gate Valve

Product Description

The NIBCO NHAL10L is an eight-inch ductile iron full port flanged gate valve designed for various applications. It is suitable for handling gases and water in commercial and industrial settings. This valve features raised face flanges and an outside screw and yoke mechanism for easy operation. The durable ductile iron body along with bronze trim ensures reliability and longevity in demanding conditions.

• Operating pressure rating of two hundred eighty-five psi
• Features a handwheel actuator
• Ideal for HVAC systems and utility services

Product Highlights

This valve is engineered for efficient flow control in multiple environments, including hot and cold water and compressed air services.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHAL10L

Technical Specifications

• Actuator Type: Handwheel

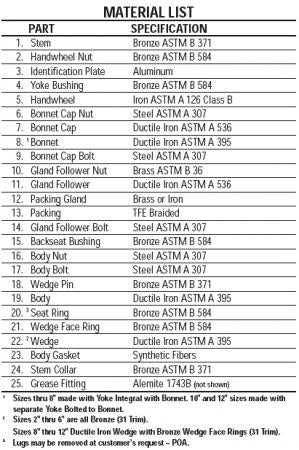

• Body Material: Ductile Iron
• Trim Material: Bronze
• Nominal Size: 8 in
• Temperature Rating: 100 deg F
• Pressure Class: 150 lb
• Media: Gas/Water

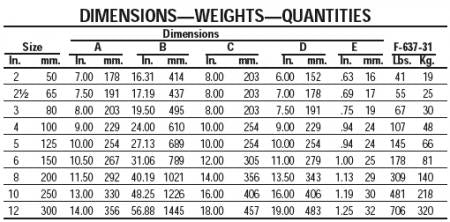

• Inlet to Outlet Length: 11-1/2 in
• Top to Inlet Center: 40.19 in
• Hand Wheel Diameter: 14 in
