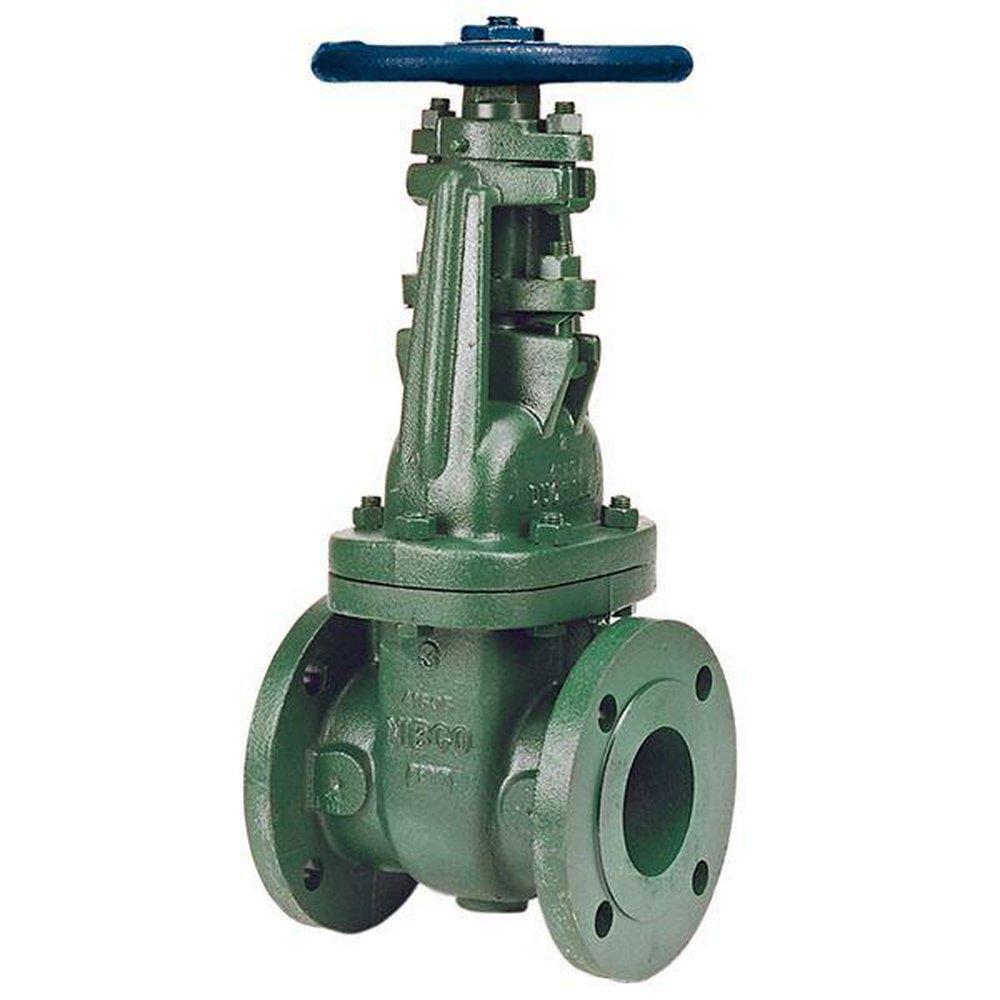

NIBCO NHAL10K F-637-31 6 in. Ductile Iron Full Port Flanged Gate Valve NF63731U

Product Description

The NIBCO NHAL10K is a six inch ductile iron full port flanged gate valve designed for various applications. This valve is suitable for both gas and water mediums. It features a bolted bonnet and outside screw and yoke design for easy operation.

• Maximum pressure rating of 250 psi in non-shock conditions.
• Ensures full flow with minimal pressure drop.
• Compliant with MSS SP-128 standards.

Product Highlights

This gate valve is ideal for commercial and industrial settings, including HVAC systems, steam, and compressed air applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 6 in

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• Trim Material: Bronze
• End Style: Raised Face Flange
• Inlet to Outlet Length: 10-1/2 in
• Top to Inlet Center: 31.06 in
• Temperature Rating: 100 deg F
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Media: Gas/Water
• Domestic/Import: Domestic
