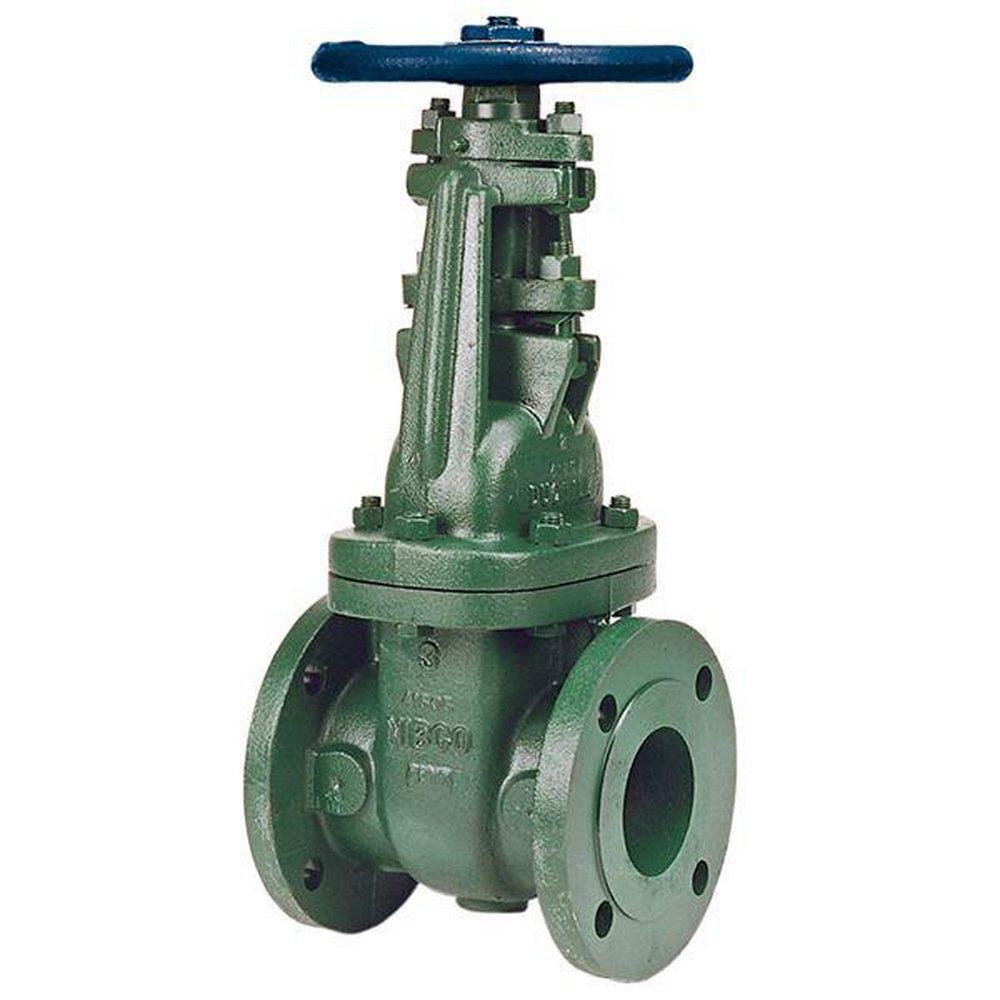

NIBCO NHAL10F F-637-31 3 in Ductile Iron Full Port Flanged Gate Valve

Product Description

The NIBCO NHAL10F is a three-inch ductile iron full port flanged gate valve. It is suitable for various applications such as gas and water management. This valve can handle saturated steam up to three hundred sixty-six degrees Fahrenheit and non-shock cold working pressure of two hundred fifty psi. Equipped with a handwheel actuator, it ensures easy operation.

• 150 psi for saturated steam
• Outside screw and yoke design
• Bolted bonnet for secure sealing

Product Highlights

Designed for commercial and industrial use, this gate valve provides reliable control in water, HVAC, and other utility services.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHAL10F

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Ductile Iron
• End Style: Raised Face Flange
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Temperature Rating: 100 deg F

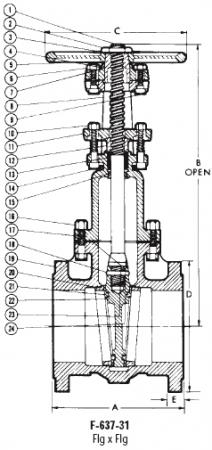

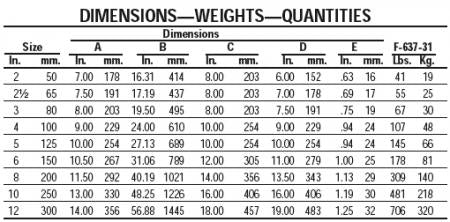

• Top to Inlet Center: 19-1/2 in
• Inlet to Outlet Length: 8 in

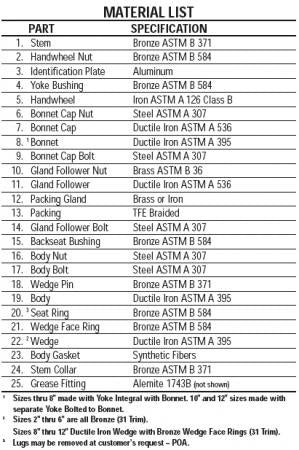

• Trim Material: Bronze
• Softgoods Material: Synthetic Fiber
• Series: F-637-31
