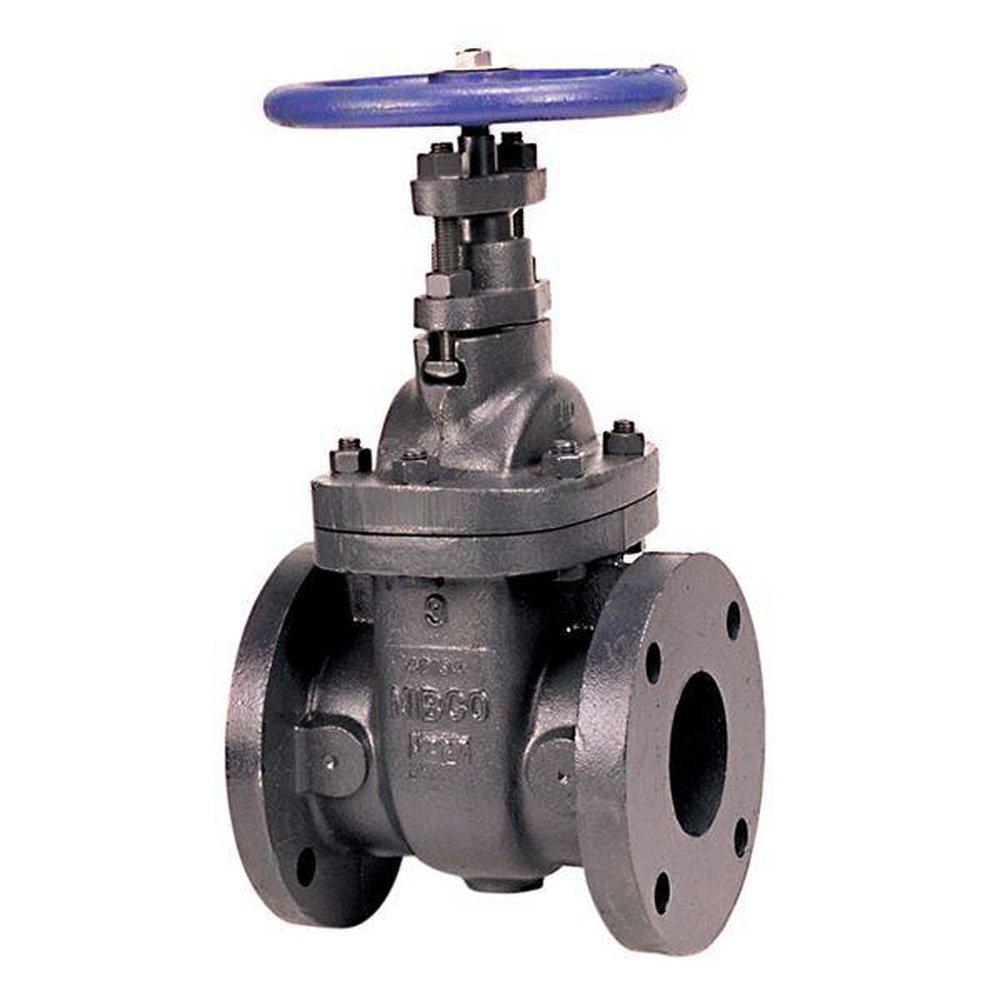

NIBCO NHAC00L F-619 8 in. Cast Iron Full Port Flanged Gate Valve

Product Description

The NIBCO gate valve with MPN NHAC00L is designed for efficient flow control in various systems. Made of cast iron, this valve features a full port design that minimizes pressure drop. The Class 125 flanged end allows for easy installation and accessibility, making it suitable for both commercial and industrial applications.

• Compatible with media: air, gas, and water
• Pressure class rated at 125 lb
• Includes bolted bonnet and non-rising stem for optimized performance

Product Highlights

Reliable for applications requiring high durability and efficiency.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHAC00L

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• Trim Material: Brass
• Nominal Size: 8 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 450 deg F
• Inlet to Outlet Length: 11-1/2 in
• Top to Inlet Center: 25 in
• Hand Wheel Diameter: 14 in
• Media: Air/Gas/Water
