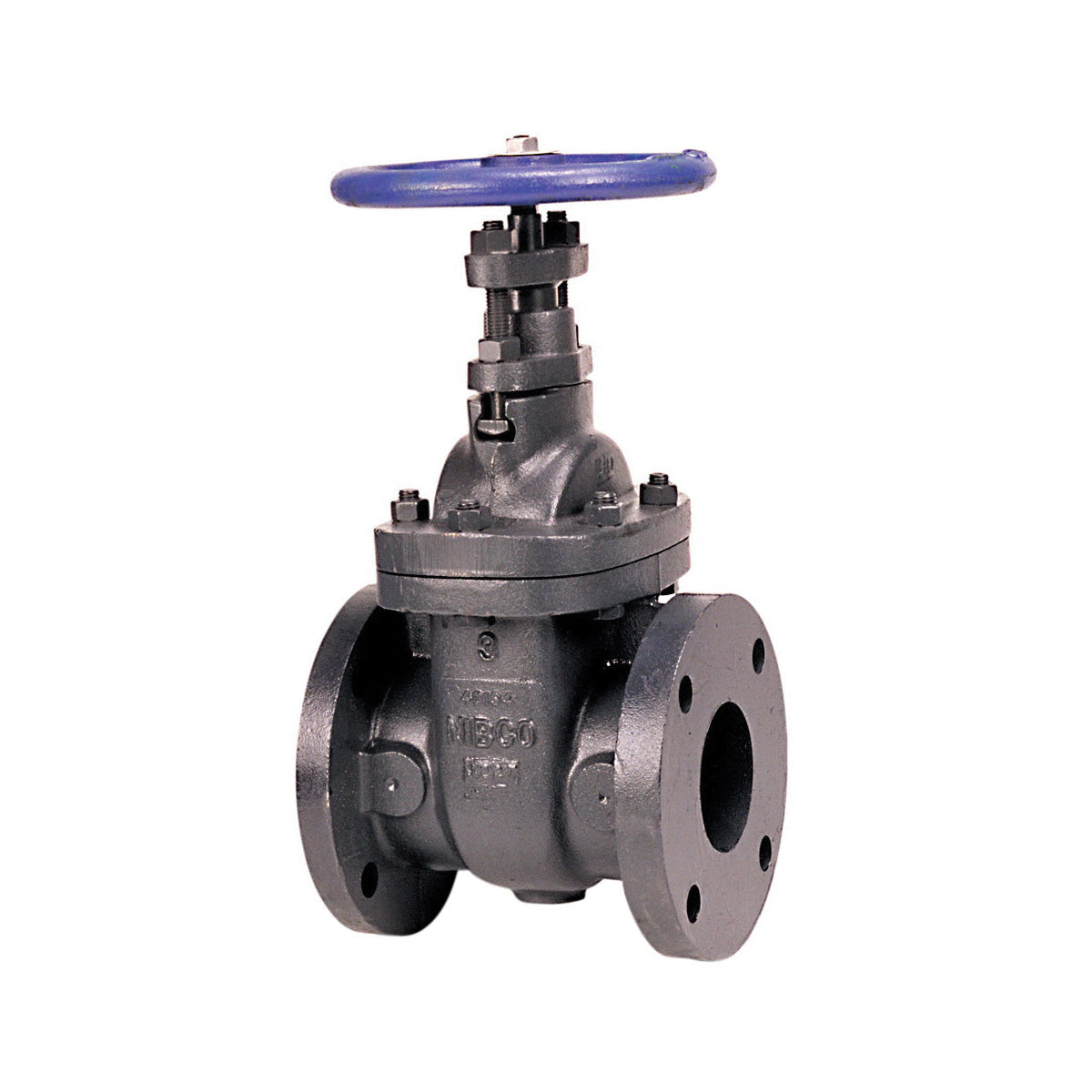

NIBCO NHAC00H Gate Valve 4 in Nominal Flanged End Style 125 lb

Product Description

The NIBCO® gate valve model NHAC00H is designed for reliable performance in various applications. This cast iron gate valve features full flow capability with minimal pressure drop. The Class 125 flanged end connection simplifies installation.

• Features a bolted bonnet
• Handles air, gas, and water
• Non-rising stem for space-saving installation

Product Highlights

The valve is ideal for commercial and industrial applications where positive shutoff is necessary.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NHAC00H

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Nominal Size: 4 in
• Temperature Rating: 450 deg F
• Inlet to Outlet Length: 9 in
• Top to Inlet Center: 15-3/4 in
• Hand Wheel Diameter: 10 in
• Softgoods Material: Graphite
• Trim Material: Brass
• End Style: Flanged
