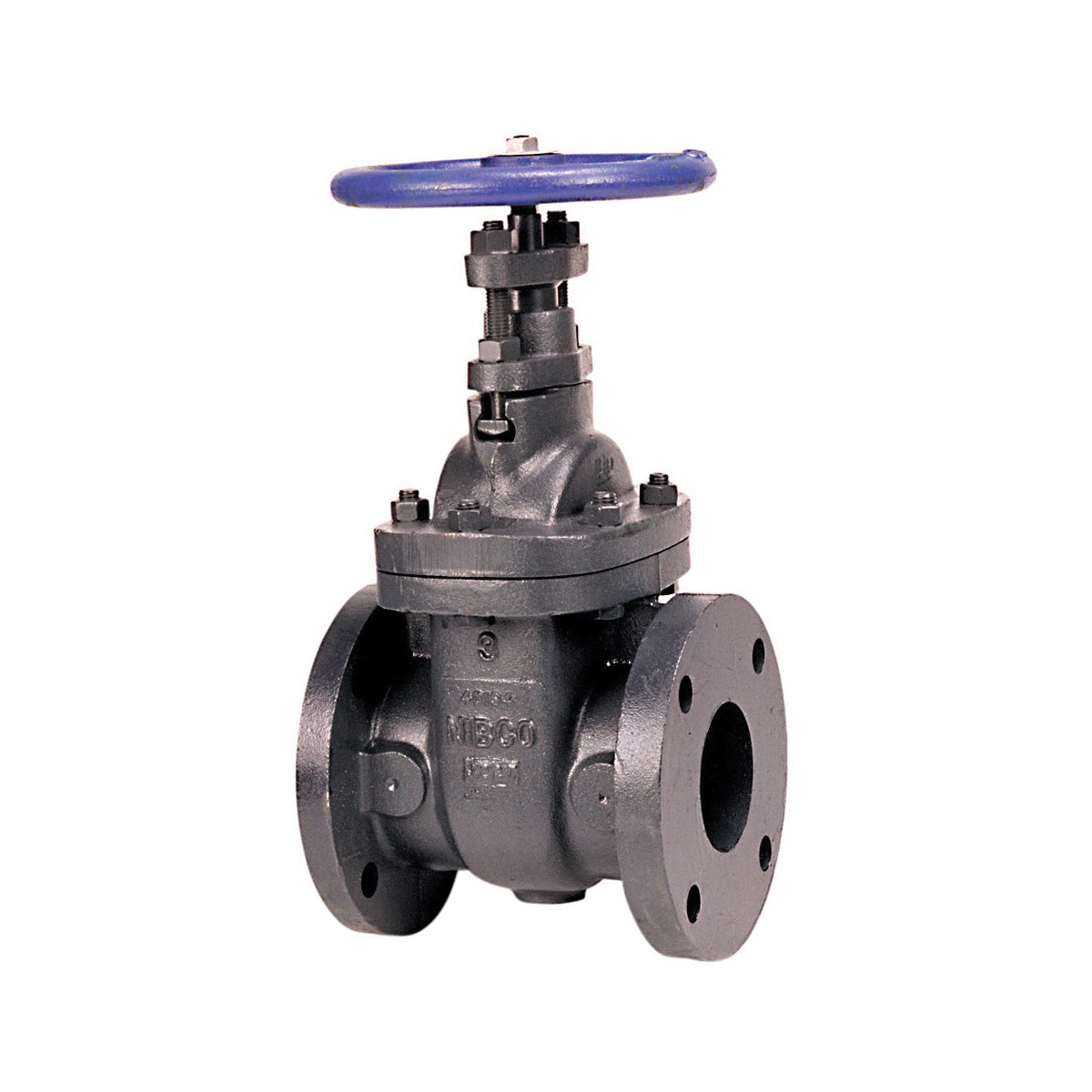

NIBCO NHAC00F Gate Valve 3 in Nominal Flanged End Style 125 lb

Product Description

The NIBCO gate valve with MPN NHAC00F offers a reliable solution for controlling fluid flow in various applications. It features a cast iron body designed for durability and efficiency. The valve has a Class 125 flanged end connection for straightforward installation. This non-rising stem valve is ideal for situations requiring tight shut-off where space is limited.

• Designed for commercial and industrial use
• Class 125 pressure rating, suitable for air, gas, and water
• Backed by a 5-year limited warranty

Product Highlights

Suitable for HVAC systems, steam lines, and general utility services, the NIBCO NHAC00F provides full flow with minimal pressure loss. It is particularly useful in applications like hot and cold water services, where reliability is crucial.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Material: Cast Iron

Technical Specifications

• Nominal Size: 3 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 450 deg F
• Actuator Type: Handwheel
• Media: Air/Gas/Water
• Inlet to Outlet Length: 8 in
• Top to Inlet Center: 13-1/2 in
• Hand Wheel Diameter: 8 in
• Trim Material: Brass
• Softgoods Material: Graphite
