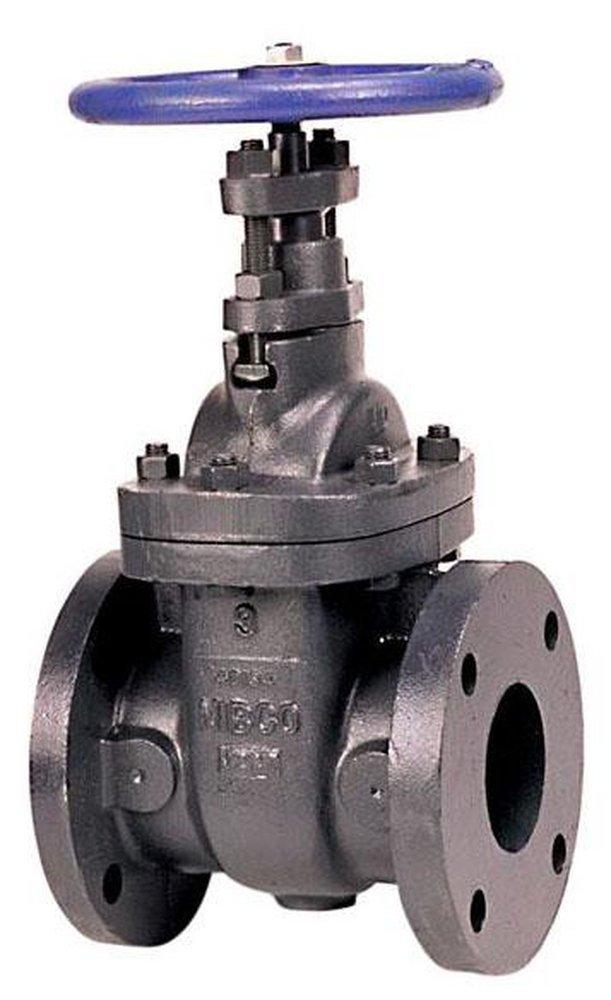

Nibco NHAC00E F-619 2-1/2 in Cast Iron Full Port Flanged Gate Valve

Product Description

The Nibco F-619 gate valve, model NHAC00E, is a 2-1/2 inch full port flanged gate valve made of cast iron. This valve features a non-rising stem design suitable for various applications, including hot and cold water, steam, and gas services. It adheres to MSS SP-70 standards, making it reliable for commercial and industrial use.

• Non-rising stem design for limited space
• Class 125 flanged connection
• Suitable for media including air, gas, and water

Product Highlights

This valve is ideal for ensuring positive shut-off in limited spaces.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHAC00E

Technical Specifications

• Nominal Size: 2-1/2 inches
• Pressure Rating: 200 psi CWP Non-Shock
• Temperature Rating: 450 degrees F
• Body Material: Cast Iron
• Trim Material: Brass
• End Style: Flanged
• Actuator Type: Handwheel
• Length Inlet to Outlet: 7-1/2 inches
• Top to Inlet Center: 12-1/2 inches
• Softgoods Material: Graphite
• Standards/Certification: MSS SP-70
