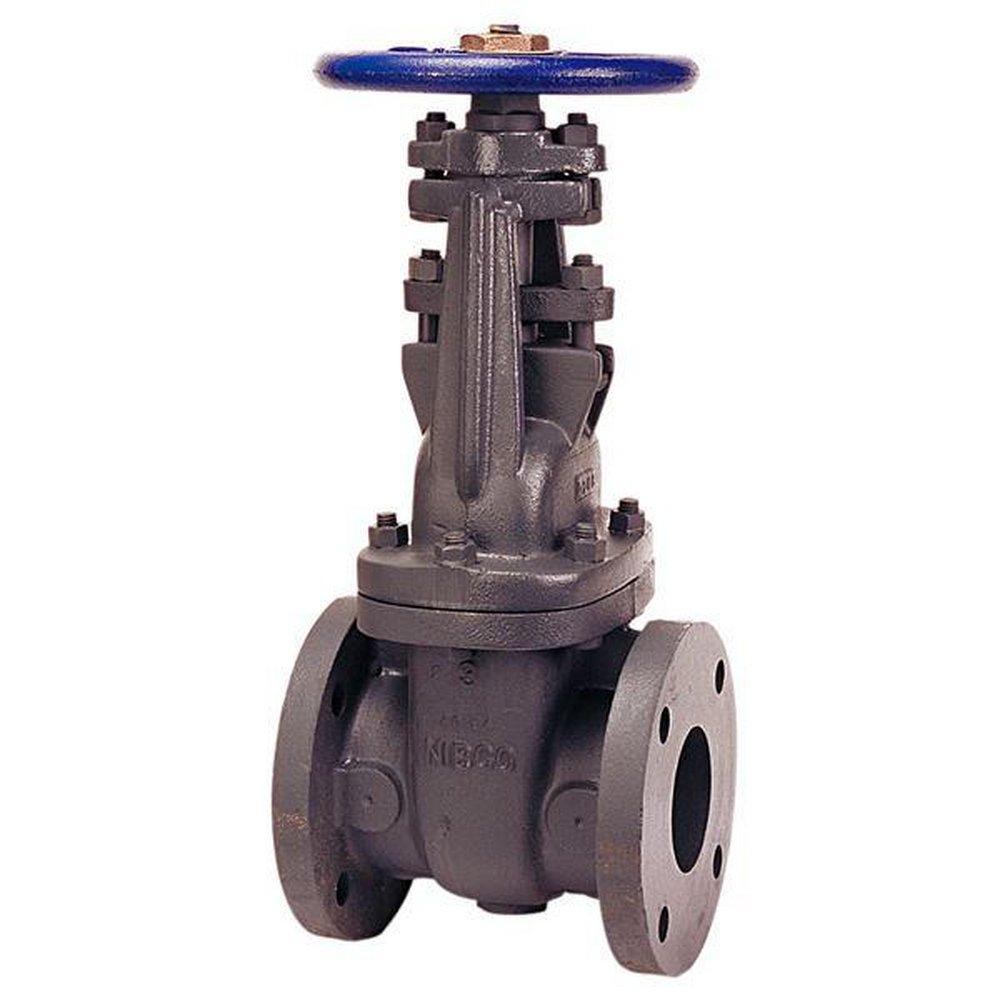

NIBCO NHA3LJH F-617-ON 4 in. Cast Iron Full Port Flanged Gate Valve NF617ONP

Product Description

The NIBCO F-617-ON is a four-inch cast iron full port flanged gate valve, model NHA3LJH. This valve is designed for general use in commercial and industrial applications, especially for gas and oil media.

• Outside screw and yoke design
• Solid wedge and bolted bonnet construction
• Suitable for media that is corrosive to bronze trim

Product Highlights

This model is built with a cast iron body and iron trim, making it durable for various applications. It conforms to the MSS SP-70 standard and is capable of handling pressures up to 200 psi.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHA3LJH

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• Trim Material: Iron
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Nominal Size: 4 in
• Media: Gas/Oil
• Top to Inlet Center: 24 in
• Inlet to Outlet Length: 9 in
• Hand Wheel Diameter: 10 in
• Softgoods Material: Synthetic Fiber/PTFE
• End Style: Flat Face Flanged
• Domestic/Import: Domestic
