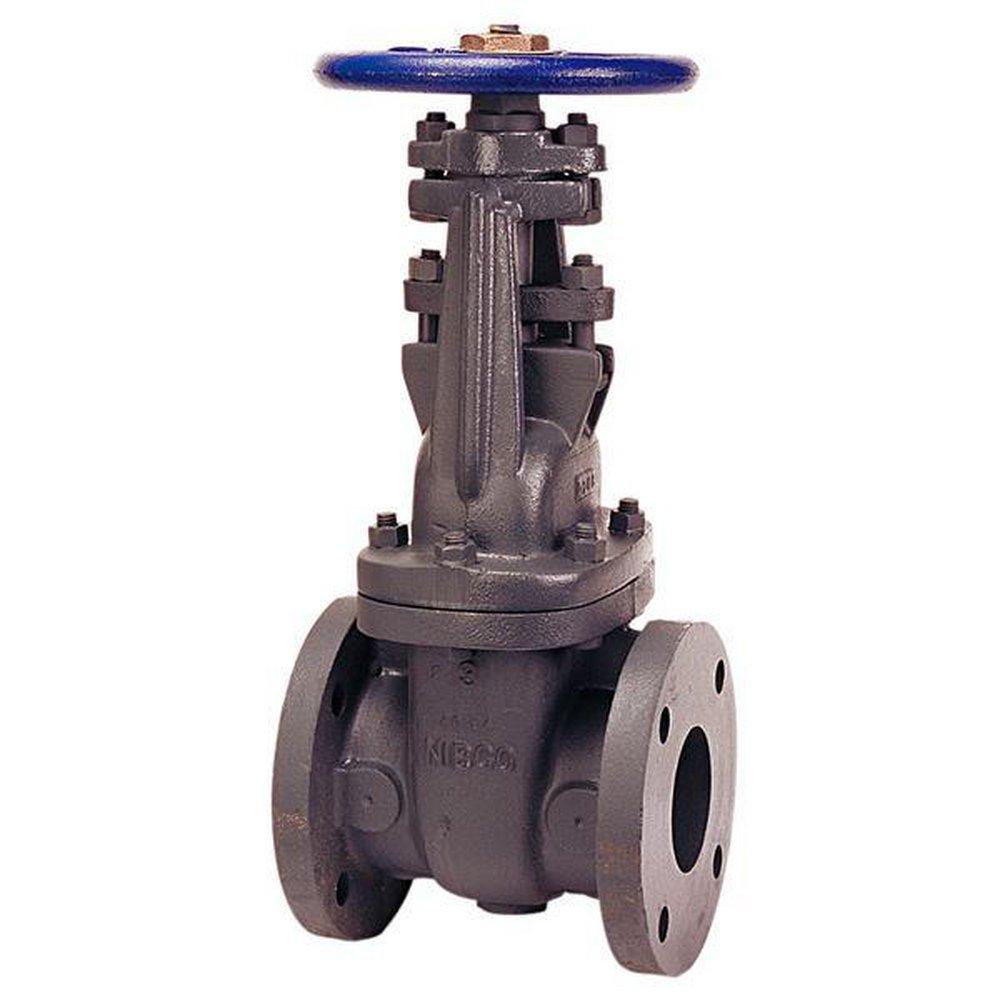

Nibco NHA300N F-617-O 12 in. Class 125 Flanged Gate Valve

Product Description

The Nibco NHA300N is a 12 inch Class 125 flanged gate valve designed from cast iron. This valve features a flat face flange end style, ensuring ease of installation. It is suitable for hot and cold water systems, HVAC, steam, gas, and other general utility services. The outside screw and yoke (OS&Y) design provides clear indication of the valve's open or closed status.

• Flanged cast iron construction.
• Outside screw and yoke design.
• Pressure class rated for 200 psi.

Product Highlights

This valve is ideal for commercial and industrial applications. It maintains flow while minimizing pressure loss. Its robust design ensures reliability and performance in various environments.

Product Information

Standard Information

• Manufacturer: Nibco
• MPN: NHA300N

Technical Specifications

• Material: Cast Iron
• Nominal Size: 12 inches
• Pressure Rating: 200 psi
• End Style: Flanged
• Actuator Type: Handwheel
• Temperature Rating: 450 degrees F
• Weight: 706.34 lbs
• Applications: Gas, steam, water
