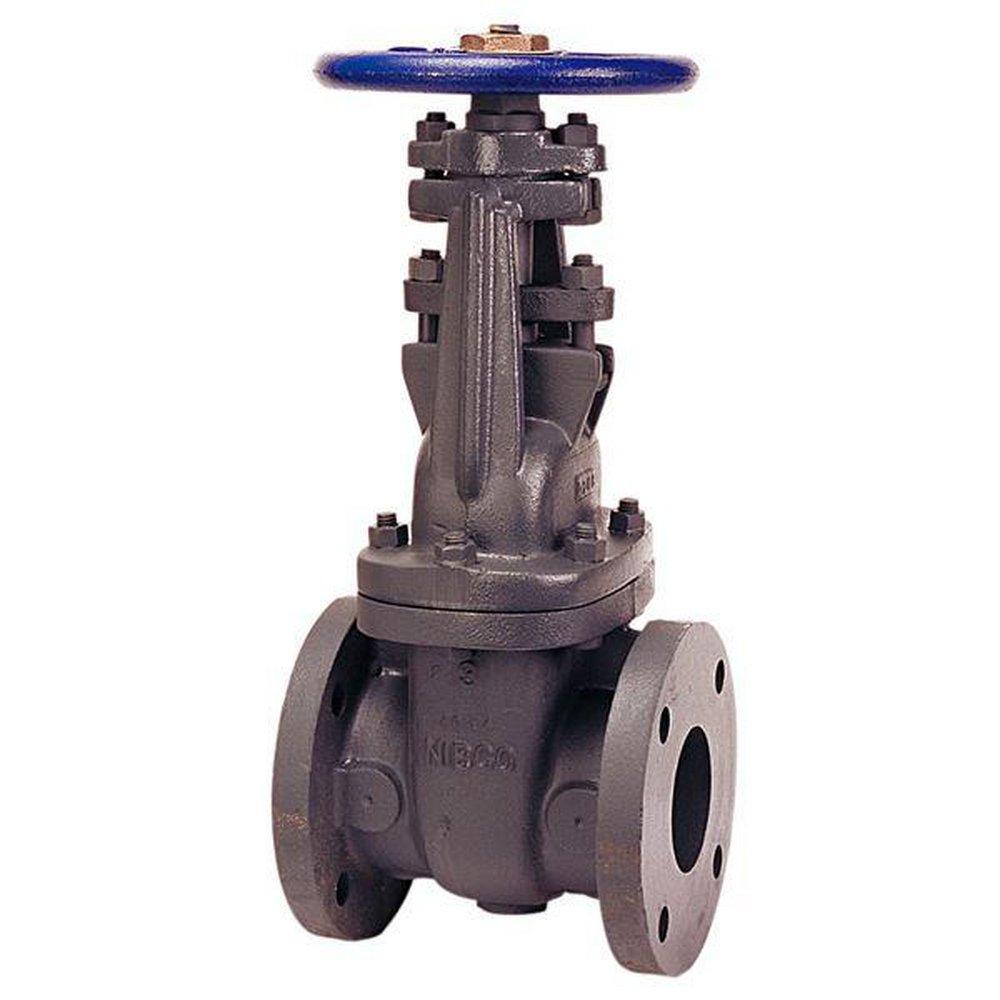

NIBCO NHA300L F-617-O 8 in Cast Iron Flanged Gate Valve

Product Description

The NIBCO gate valve, model NHA300L, is an eight inch flanged gate valve made of cast iron. This valve is designed to provide efficient flow control in various applications. It features outside screw and yoke construction, which promotes easy operation and visual confirmation of the valve’s position.

• Pressure rated for both 200 psi non-shock cold working and 125 psi for saturated steam up to 353 degrees Fahrenheit.
• Constructed with a solid wedge design ensuring a reliable seal.
• Suitable for commercial and industrial use, such as HVAC, steam, and general utility services.

Product Highlights

The NIBCO NHA300L is ideal for applications requiring dependable shut-off and maintained flow, making it an essential component for many plumbing systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHA300L

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• End Style: Flat Face Flanged
• Nominal Size: 8 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 450 degrees Fahrenheit
• Inlet to Outlet Length: 11-1/2 inches
• Hand Wheel Diameter: 14 inches
• Top to Inlet Center: 40.19 inches
• Trim Material: Brass
