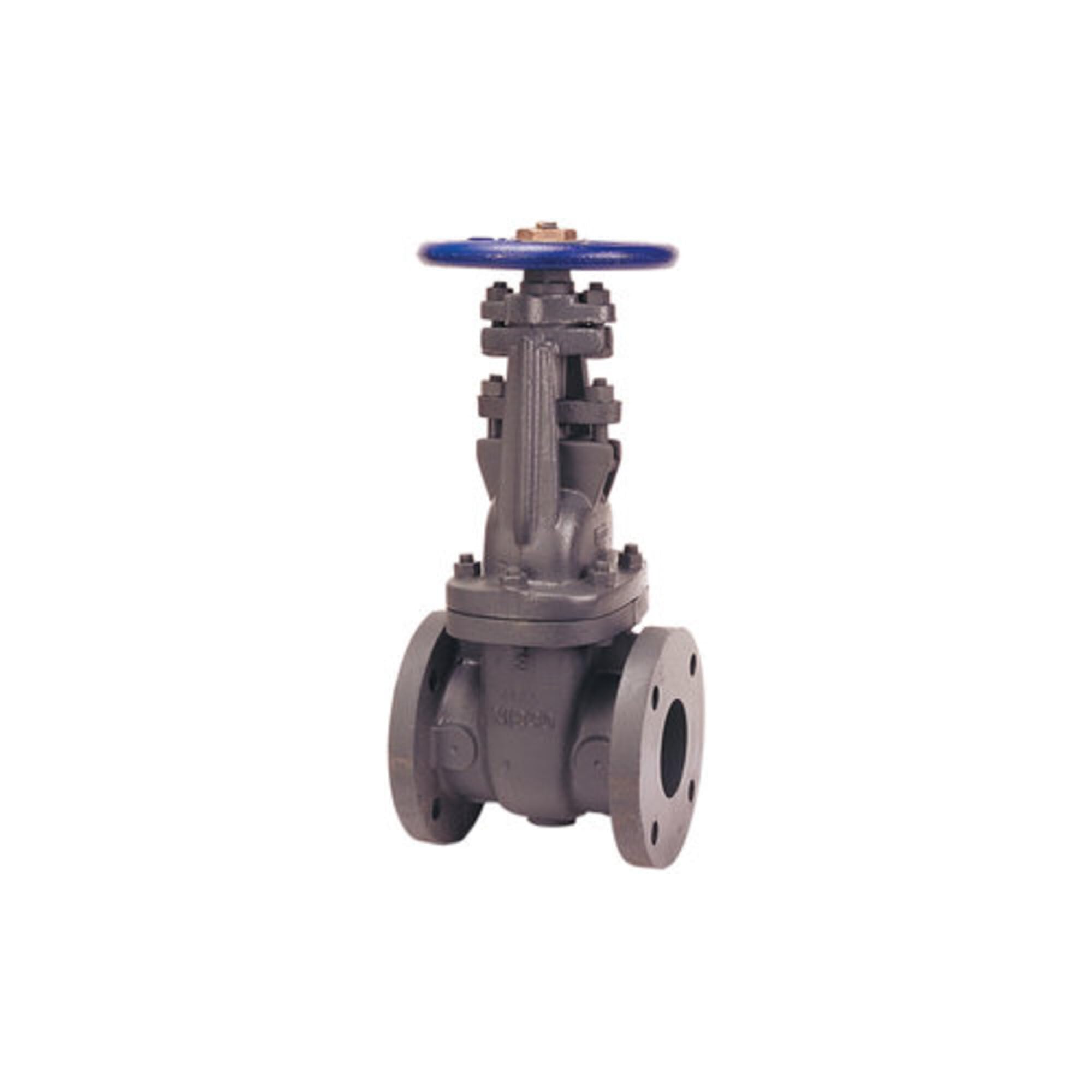

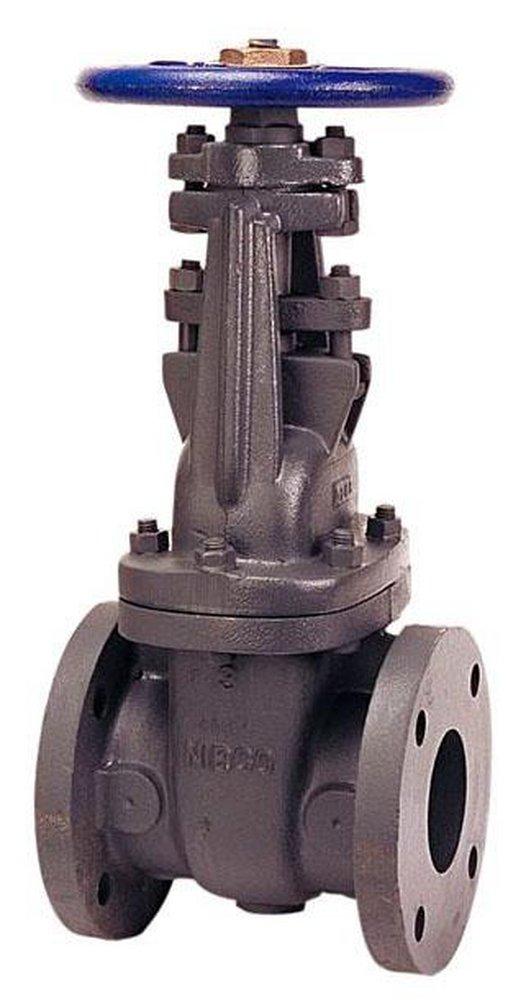

Nibco NHA300J F-617-O 5 in. Cast Iron Full Port Flanged Gate Valve

Product Description

The Nibco NHA300J model F-617-O is a 5-inch cast iron gate valve with a full port and flanged connections. It is designed for robust use in commercial and industrial settings.

• Flanged connections for easy installation
• Iron body with bronze trim
• Suitable for HVAC, steam, and other utility services

Product Highlights

This Nibco valve provides unimpeded flow with minimal pressure drop. It features a Class 125 flat face flanged end connection and an outside screw and yoke (OS&Y) configuration, protecting the stem threads from contact with the media. Recommended for positive shut-off in various applications.

Product Information

Standard Information

• Manufacturer: Nibco
• Model: F-617-O

Technical Specifications

• MPN: NHA300J
• Nominal Size: 5 inches
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Body Material: Cast Iron
• Trim Material: Brass
• End Style: Flat Face Flanged
• Actuator Type: Handwheel
• Hand Wheel Diameter: 10 in
• Inlet to Outlet Length: 10 in
• Top to Inlet Center: 27.13 in
• Softgoods Material: Synthetic Fiber/Graphite
• Media: Air/Gas/Water
• Certifications: MSS SP-70
