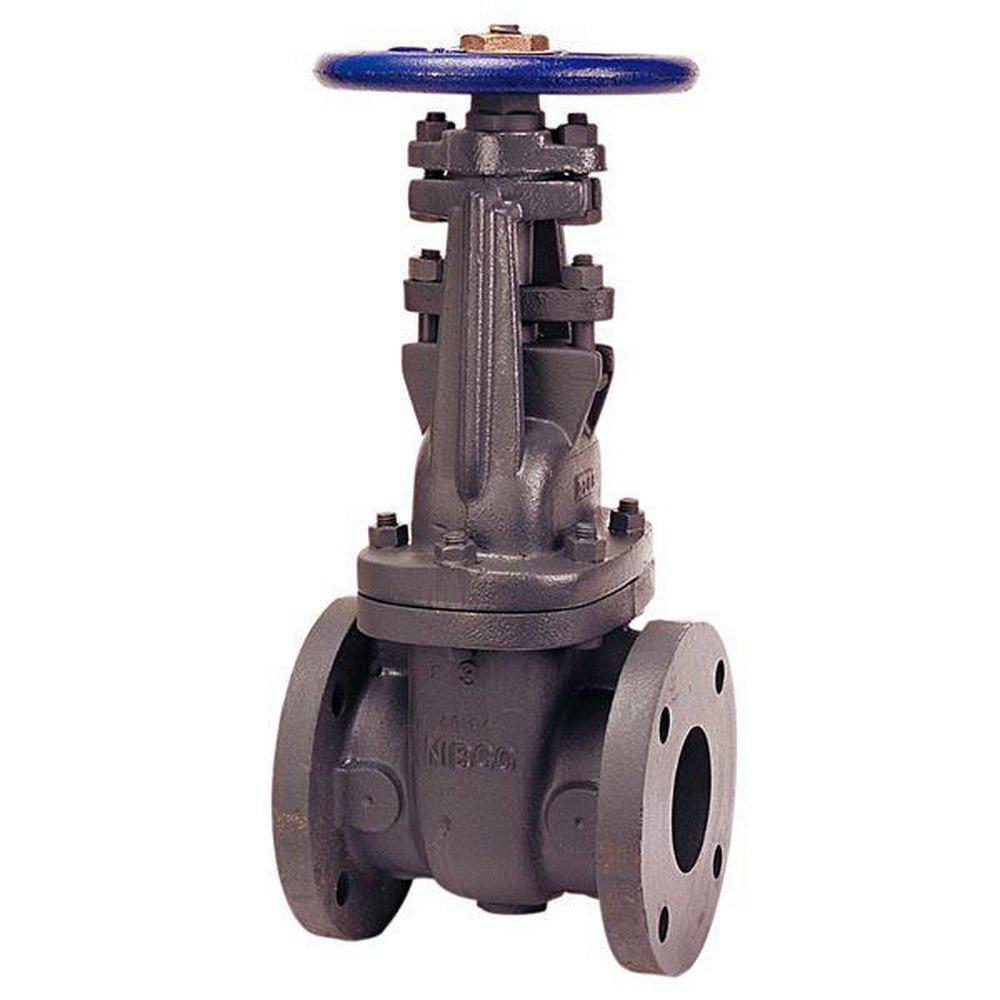

Nibco NHA300H F-617-O 4 Flanged Class 125 Cast Iron OS&Y Gate Valve

Product Description

The Nibco NHA300H, model F-617-O, is a four-inch flanged cast iron gate valve. This valve allows for full flow with minimal pressure drop, suitable for various applications including industrial and commercial use. The outside screw and yoke (OS&Y) design provides a clear visual indication of the valve's open or closed status. It is recommended for situations requiring a reliable shutoff. The connection style is flat face flanged, ensuring easy installation. This valve is designed for a maximum working pressure of two hundred psi and is suitable for media such as air, gas, and water.

• Flanged end connections for quick installation
• Handwheel actuator for easy operation
• Solid wedge design for durability

Product Highlights

This valve meets industry standards and provides reliable performance across various applications.

Product Information

Standard Information

• Brand: Nibco
• MPN: NHA300H

Technical Specifications

• Nominal Size: 4 in
• Body Material: Cast Iron
• Trim Material: Brass
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Temperature Rating: 450 deg F
• Inlet to Outlet Length: 9 in
• Top to Inlet Center: 24 in
• Hand Wheel Diameter: 10 in
• Standards/Certifications: MSS SP-70
• Applications: Hot and cold water, HVAC, steam, gas
