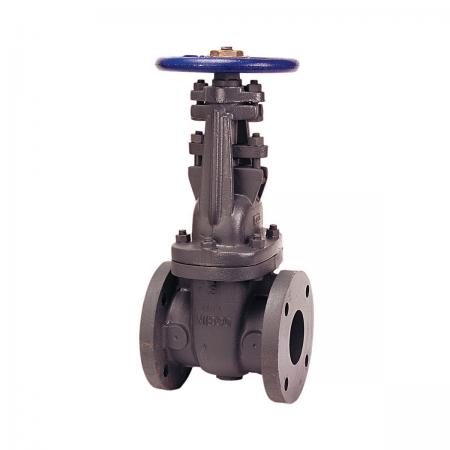

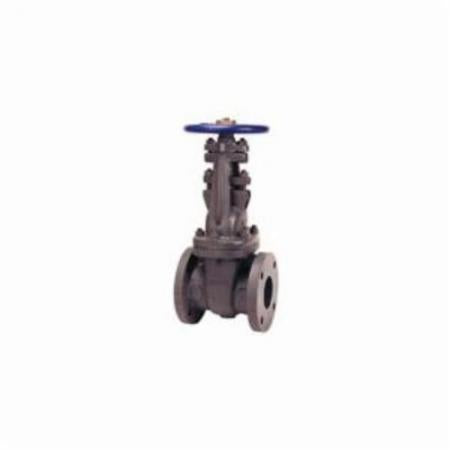

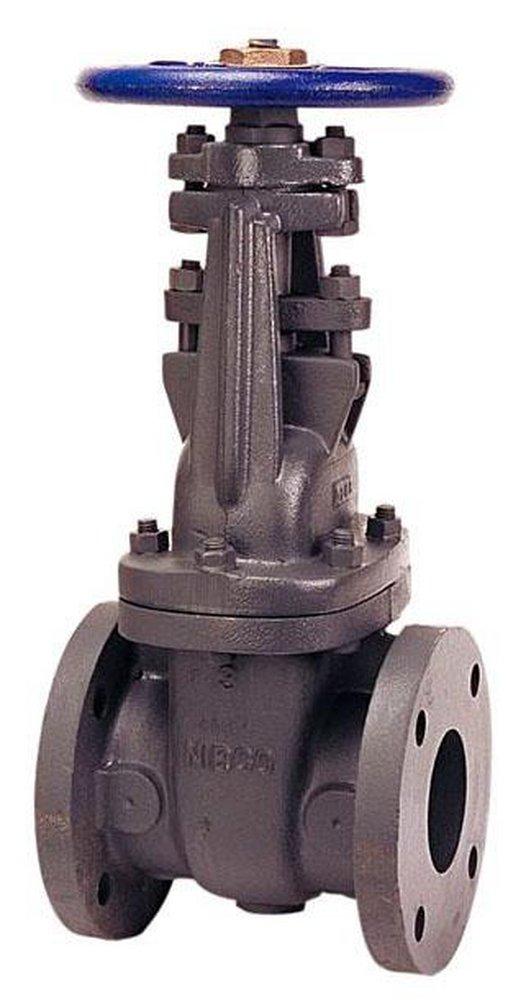

Nibco NHA300F F-617-O Class 125 Cast Iron Gate Valve 3 Inch Flanged

Product Description

The Nibco NHA300F is a three-inch Class 125 cast iron gate valve. It features an outside screw and yoke (OS&Y) design for effective shutoff and a clear indication of the valve position. This valve is suitable for various applications including hot and cold water, HVAC systems, steam, and gas.

• Full-flow with minimal pressure drop.
• Flanged, flat face end connection for easy installation.
• Conforms to MSS SP-70 standards.

Product Highlights

The NHA300F model provides reliable performance in commercial and industrial settings.

Product Information

Standard Information

• Brand: Nibco
• Model: F-617-O

Technical Specifications

• Nominal Size: 3 inches
• Body Material: Cast Iron
• Seal Material: Bronze
• Pressure Rating: 200 psi Non-Shock Cold Working Pressure
• Temperature Rating: 450 deg F
• Actuator Type: Handwheel
• Connection Type: Flanged
• Applications: Hot and cold water, HVAC, steam, gas
