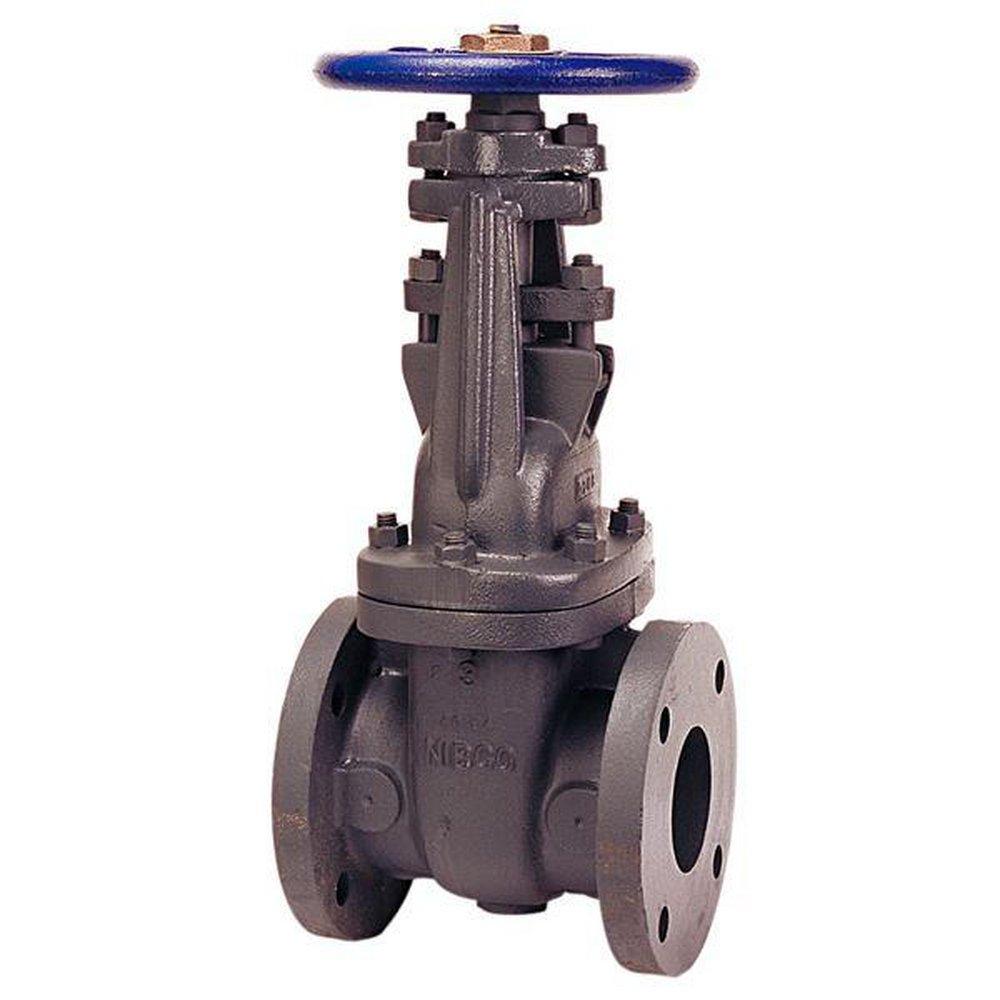

Nibco NHA300E F-617-O 2-1/2 Flanged Cast Iron Gate Valve

Product Description

The Nibco cast iron gate valve model F-617-O is a 2-1/2 inch size with a flanged connection. This valve is designed for commercial and industrial use, suitable for hot and cold water, steam, and gas applications. It features an outside screw and yoke design to provide reliable shut-off capability and a clear indication of the open or closed position. The valve's robust construction includes a cast iron body and brass trim, ensuring durability in demanding environments. It meets MSS SP-70 standards for quality and safety.

• Flanged flat face end connections for easy installation
• Pressure rated for up to 200 psi
• Temperature rating of up to 450 degrees Fahrenheit

Product Highlights

This gate valve is engineered for smooth flow with minimal pressure drop, making it an effective choice for a range of utility services.

Product Information

Standard Information

• Brand: Nibco
• MPN: NHA300E

Technical Specifications

• Nominal Size: 2-1/2 inches
• Pressure Class: Class 125
• Inlet to Outlet Length: 7-1/2 inches
• Top to Inlet Center: 17.19 inches
• Body Material: Cast Iron
• Trim Material: Brass
• Actuator Type: Handwheel
• Media: Air/Gas/Water
