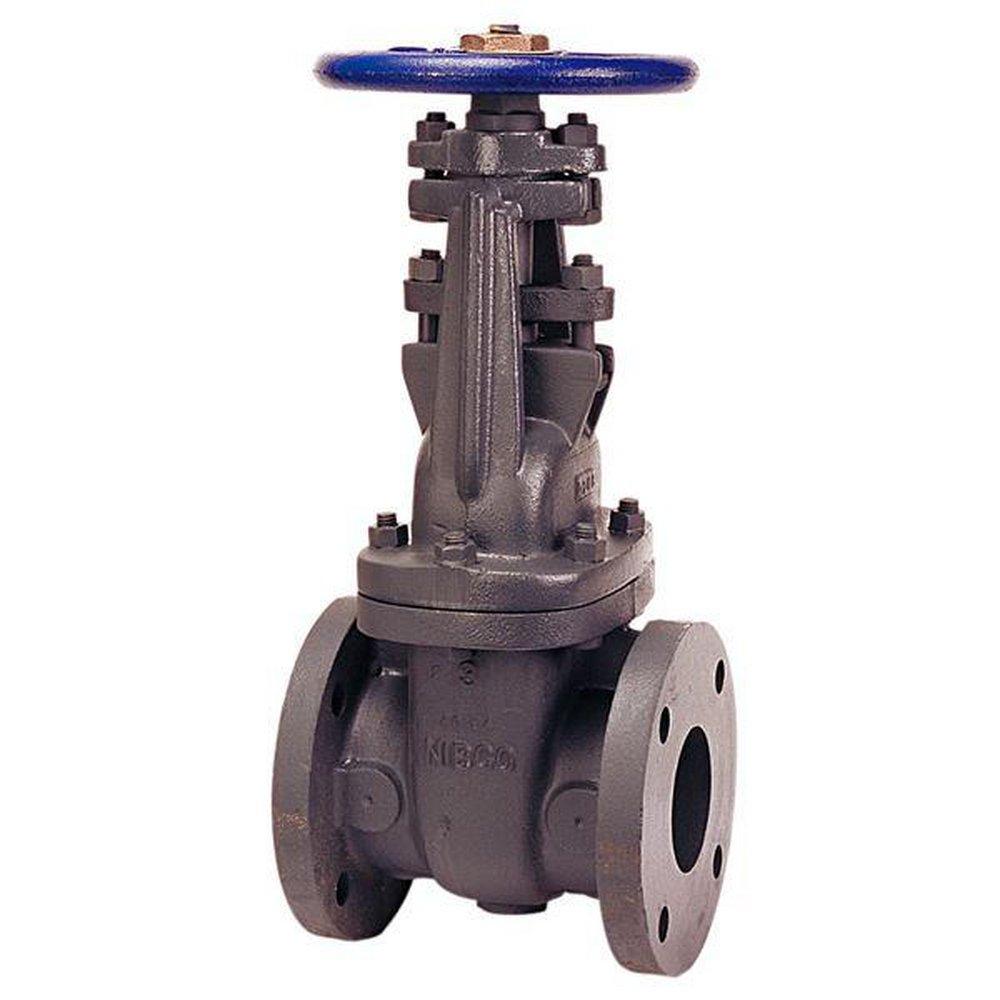

Nibco NHA300D F-617-O 2 Flanged Class 125 Cast Iron OS&Y Gate Valve

Product Description

NIBCO F-617-O gate valve, MPN NHA300D, is a two-inch cast iron full port flanged gate valve designed for efficient flow control in various applications.

• Constructed from durable cast iron material
• Features a Class 125 flanged connection for easy installation
• Ideal for use in HVAC, steam, and general utility systems

Product Highlights

This valve is suitable for commercial and industrial applications, such as hot and cold water, gas, and steam services. It ensures minimal pressure drop while allowing full flow. The valve features an outside screw and yoke (OS&Y) design for clear visual indication of its open or closed status, protecting stem threads from exposure to the media.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NHA300D

Technical Specifications

• Nominal Size: 2 in
• Body Material: Cast Iron
• End Style: Flat Face Flanged
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Temperature Rating: 450°F
• Actuator Type: Handwheel
• Top to Inlet Center: 16.31 in
• Inlet to Outlet Length: 7 in
• Trim Material: Brass
