NIBCO NH24L0H F607OTS 4 FLG UL/FM GATE

Product Description

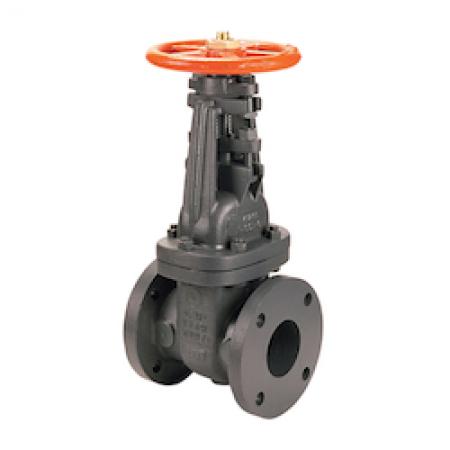

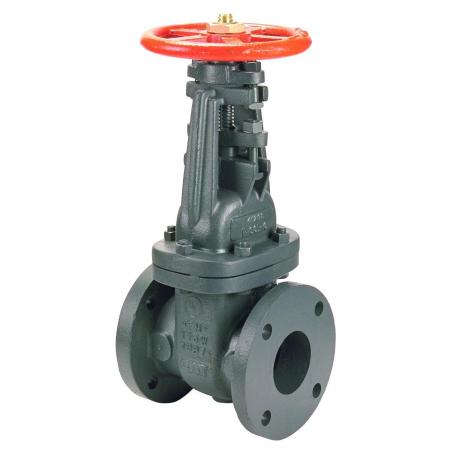

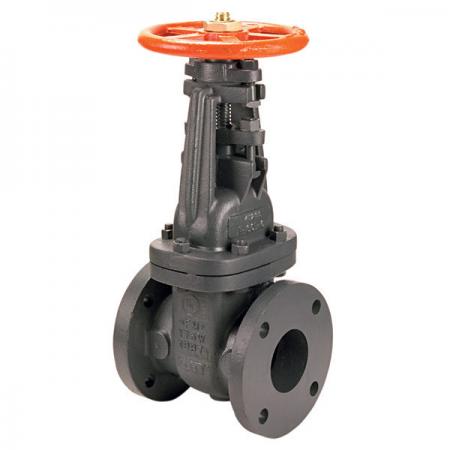

NIBCO Gate Valve, MPN NH24L0H, is a reliable option for various plumbing needs. This valve is a part of the F-607-OTS series designed for water applications. It has a nominal size of four inches and a flanged end for easy installation. The valve operates under a working pressure of 175 psi and is suitable for fire protection systems. The robust construction includes a cast iron body with brass trim, ensuring durability and reliability in service.

• Certified for UL and FM approvals for safety.
• Handwheel actuator for smooth manual operation.
• Non-asbestos softgoods material for enhanced safety.

Product Highlights

This NIBCO valve is ideal for automatic sprinkler systems, satisfying fire safety standards.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Category: Valves

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• Pressure Rating: 175 psi
• Nominal Size: 4 in
• Inlet to Outlet Length: 9 in
• Top to Inlet Center: 24 in
• Hand Wheel Diameter: 10 in
• Trim Material: Brass
• Media: Water
• Pressure Class: 125 lb
• Series: F-607-OTS
