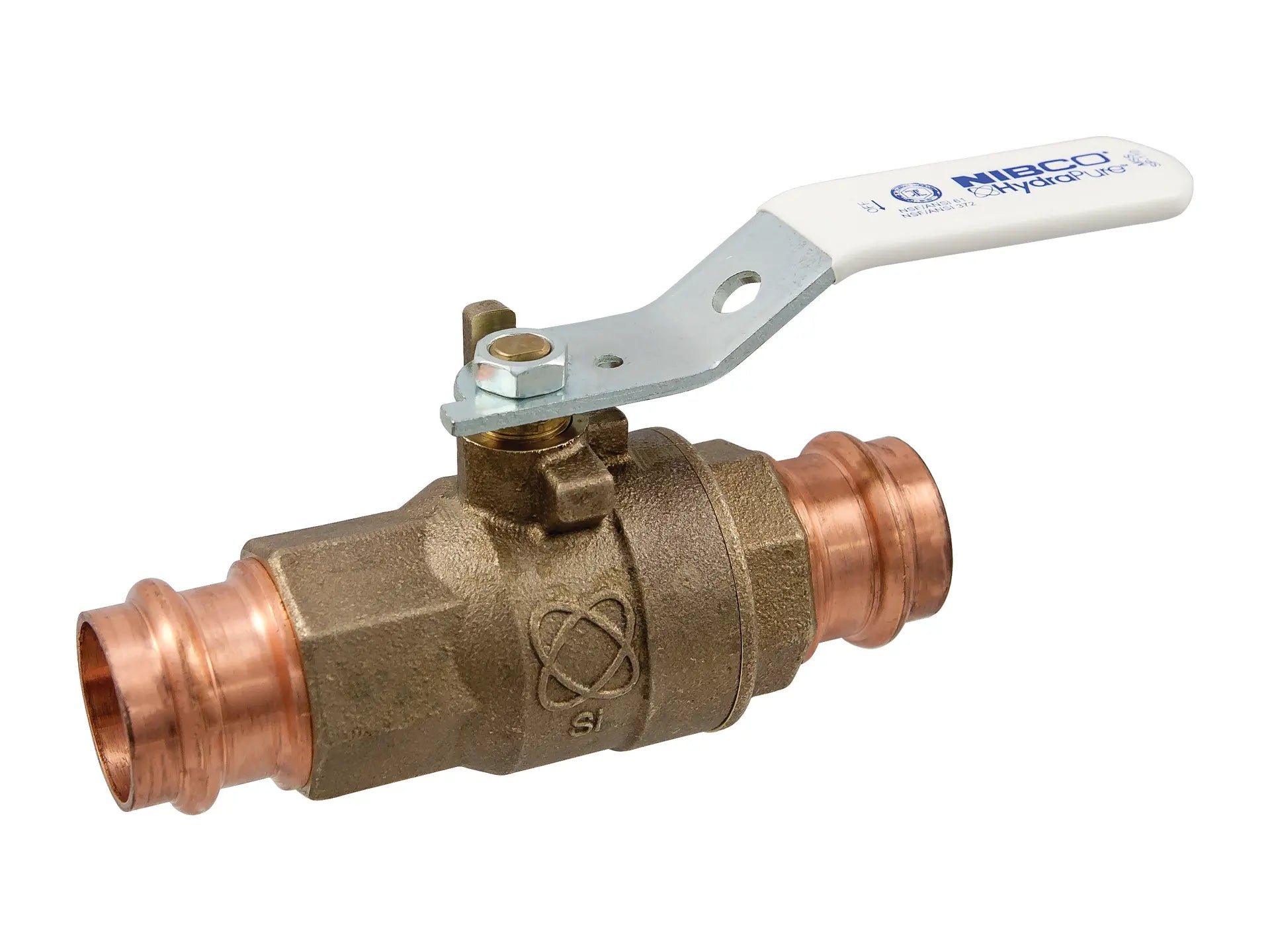

Nibco NFB84HXC pc-585-66-lf 2-Piece Valve, 1-1/2 in Nominal

Product Description

The NIBCO NFB84HXC PC-585-66-LF 2-Piece Valve features a lead-free HydraPure Performance Bronze alloy body that resists dezincification. Designed with press-to-connect copper end connections, it ensures a watertight seal without flame, solder, or flux. This valve is user-friendly, quick to install, and ideal for systems delivering water for human consumption.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Reinforced PTFE seat rings

Product Highlights

The NIBCO 2-Piece Valve features press leak-detection, multiple handle options, and a blow-out proof stem actuator.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HXC
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Female Press
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: PC-585-66-LF
• Temperature Rating: 250 deg F
• Trim Material: Stainless Steel
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NFB84HXC
• Model: PC-585-66-LF
• UPC: 039923447937
• Length (In): 10.53
• Width (In): 4.72
• Height (In): 2.84
• All Basic Material: Lead-Free Bronze
• All Type of Item: Valve
• Type of Valve: Ball Valve
• Size Dimensions: 1-1/2 in. x 1-1/2 in.
• Valve Ball Port Style: Full Port
• Valve Ball Stem Material: SS - Stainless Steel
• Valve End Connection Type: Female Press x Female Press
• End Connection: Press
• Valve Ball Operator: CS Standard Lever Handle
• Turns Operations: Quarter-Turn
• Seat Seal Material: RPTFE (Reinforced)
• Valve Trim Package: Stainless Steel Trim
• All Application(s): Lead-Free*
• Potable Water Code: LL Compliant NSF/ANSI 372
• ANSI: ANSI 372-8, ANSI 61, ANSI Z1157
• Collection: PC-585-66-LF
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Free Not Certified, Approved for Non-Potable Water Applications
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material: Silicon Bronze
• Maximum Temperature: 250
• NSF: NSF 372-8, NSF 61
• NSF Certified: Yes
• Pressure - High: 250
• Pressure Class: 250#
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1-1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
