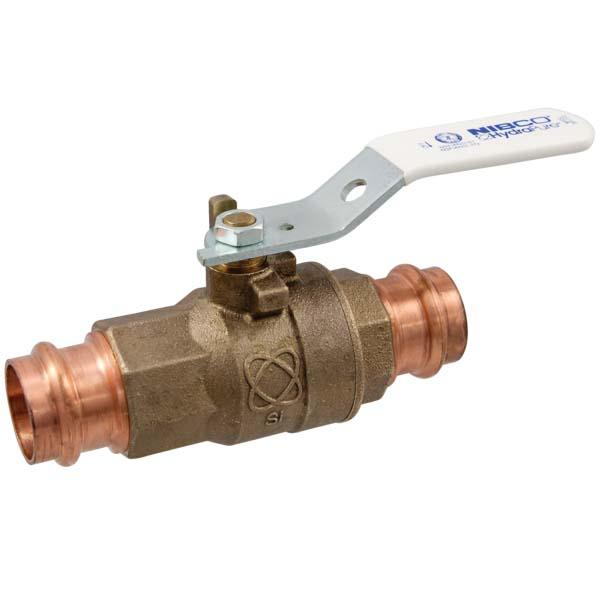

Nibco nfb84hxb 1-1/4 in Press Full Port Ball Valve Lead Free

Product Description

The NIBCO nfb84hxb is a 1-1/4 inch full port ball valve designed for press-to-connect copper piping systems. The body is manufactured from lead-free Hydrapure Performance Bronze alloy, which is dezincification resistant for long-term durability in potable water applications. An inboard bead and EPDM O-ring seat the press connection, creating a permanent, watertight seal without flame, solder, or flux. Rated at 250 psi non-shock cold working pressure with a maximum service temperature of 250 degrees F, this valve suits demanding residential and light commercial plumbing installations. Licensed plumbers and pipefitters are the primary installers.

This ball valve is intended for copper-to-copper press system installations in residential and commercial plumbing, hydronic heating, and mechanical piping where a reliable, full-flow shutoff is required. The press x press female end connections accept standard copper tube sizes and are compatible with common press-fit jaw tooling. The vented stainless steel ball provides a leak-detection feature, allowing installers to identify pressure loss before the valve reaches full close, reducing the risk of trapped pressure during service.

Key Features

• Lead-free Hydrapure Performance Bronze body — dezincification resistant and suitable for potable water service
• Press x press female end connections with inboard bead and EPDM O-ring for no-flame, no-solder installation
• Vented stainless steel ball with press leak-detection feature for safer servicing
• Full port design minimizes flow restriction through the valve
• Blowout-proof stem and reinforced PTFE seat rings for long service life
• Rated 250 psi non-shock cold working pressure at up to 250 degrees F

Compatibility

Designed for use in press-to-connect copper piping systems. Compatible with standard 1-1/4 inch copper tube and press-fit tooling that accepts standard jaws for press x press end connections. Conforms to MSS SP-110 dimensional standards.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IAPMO standards. Depressurize and drain the system before servicing or replacing any valve. Use a listed press-fit tool with the correct jaw size for 1-1/4 inch copper to ensure a complete, verified press connection. Do not apply heat or open flame near the valve body or EPDM O-ring components.

Technical Specifications

• Size: 1-1/4 inches
• Port: Full port
• Pressure Rating: 250 psi non-shock cold working pressure
• Maximum Service Temperature: 250 degrees F
• Body Material: Lead-free Hydrapure Performance Bronze (dezincification resistant)
• Ball Material: Vented stainless steel
• Seat Material: Reinforced PTFE
• Seal Material: EPDM O-ring
• End Connections: Press x press female
• Stem: Blowout-proof
• Lead-Free: Yes
• Certifications: NSF/ANSI/CAN-61, NSF/ANSI/CAN-372, IAPMO/ANSI Z1157, MSS SP-110

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: nfb84hxb
