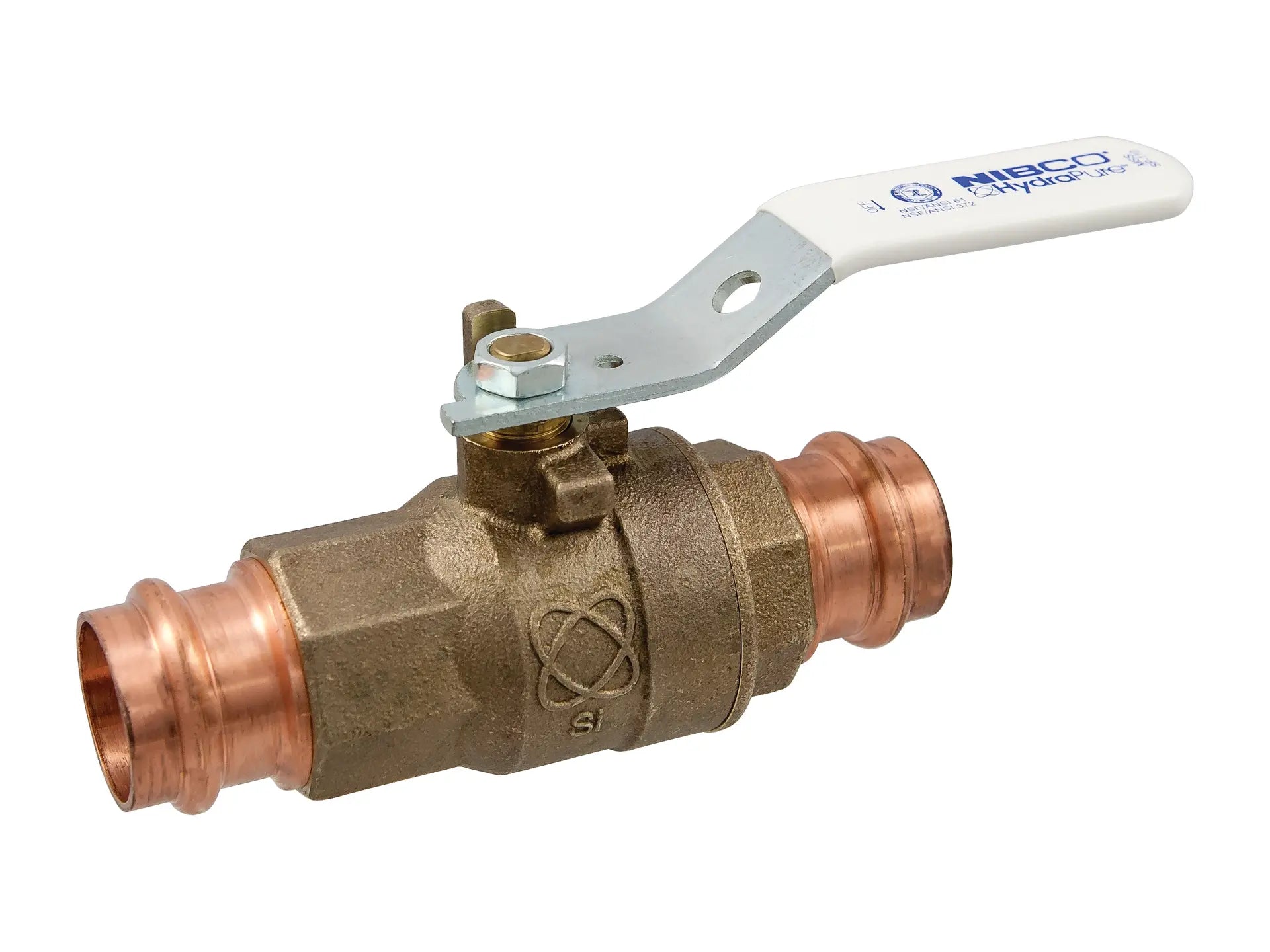

Nibco NFB84HNC pc-585-66-lf 2-piece valve, 1-1/2 in nominal

Product Description

The NIBCO NFB84HNC PC-585-66-LF 2-Piece Valve features a lead-free HydraPure Performance Bronze alloy body that resists dezincification. Designed with press-to-connect copper end connections, it ensures a clean, permanent, and watertight seal without flame, solder, or flux. This valve is user-friendly and quick to install.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Reinforced PTFE seat rings

Product Highlights

Lead-free bronze valve with press-to-connect end connections for easy, reliable installation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HNC
• Country of Origin: US

Technical Specifications

• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Female Press
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: PC-585-66-LF
• Temperature Rating: 250 deg F
• Trim Material: Stainless Steel
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NFB84HNC
• Model: PC-585-66-LF-NS
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
