Nibco nfb84hna Ball Valve 1 in Female Press Lead-free

Product Description

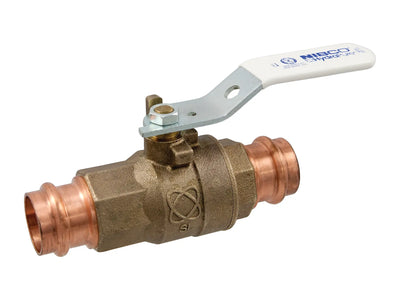

The NIBCO nfb84hna is a 1-inch lead-free ball valve built for the NIBCO Press System. The body is manufactured from HydraPure Performance Bronze alloy, which is dezincification resistant and fully compliant for use in potable water systems. End connections are female press by female press with an inboard bead and EPDM O-ring, allowing a licensed plumber to make a permanent, watertight copper-to-copper connection in seconds without flame, solder, or flux. When the press-fit tool is applied correctly, a unique N witness mark becomes visible, confirming a proper crimp. This valve is suited for residential and light commercial plumbing installations where lead-free compliance is required.

The nfb84hna is intended for use in potable water distribution systems, including domestic hot and cold water supply lines. The press-to-connect design eliminates open-flame work, making it well suited for retrofit and renovation projects in occupied spaces, tight chases, and fire-sensitive environments. It is part of the NIBCO Press System, which pairs with compatible NIBCO pressing tools, jaws, and chains. Plumbers and pipefitters handling copper distribution systems are the primary installers of this valve.

Key Features

• Lead-free HydraPure Performance Bronze construction meets potable water requirements
• Dezincification-resistant alloy for long-term durability in water service
• Female press by female press end connections with inboard bead and EPDM O-ring
• No flame, solder, or flux required — press connection made in seconds
• N witness mark confirms complete and proper crimp
• Backed by a 5-year limited warranty from NIBCO

Compatibility

Designed for use within the NIBCO Press System on copper tube applications. Compatible with NIBCO pressing tools, jaws, and chains designed for the Press System platform. Part of the PC-585-66-LF series.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code. Shut off the water supply and depressurize the line before installing or servicing this valve. Use only a compatible NIBCO press-fit tool and the correct jaw size for 1-inch connections. Refer to NIBCO technical data sheets and installation instructions for full engineering and assembly guidance.

Technical Specifications

• Valve Type: Ball
• Nominal Pipe Size: 1 inch x 1 inch
• End Connection Type: Female Press x Female Press
• Body Material: Lead-Free HydraPure Performance Bronze (dezincification resistant)
• Seal Material: EPDM O-ring
• Series: PC-585-66-LF
• Model: PC-585-66-LF-NS
• Lead-Free Compliant: Yes
• Warranty: 5-year limited

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: nfb84hna
