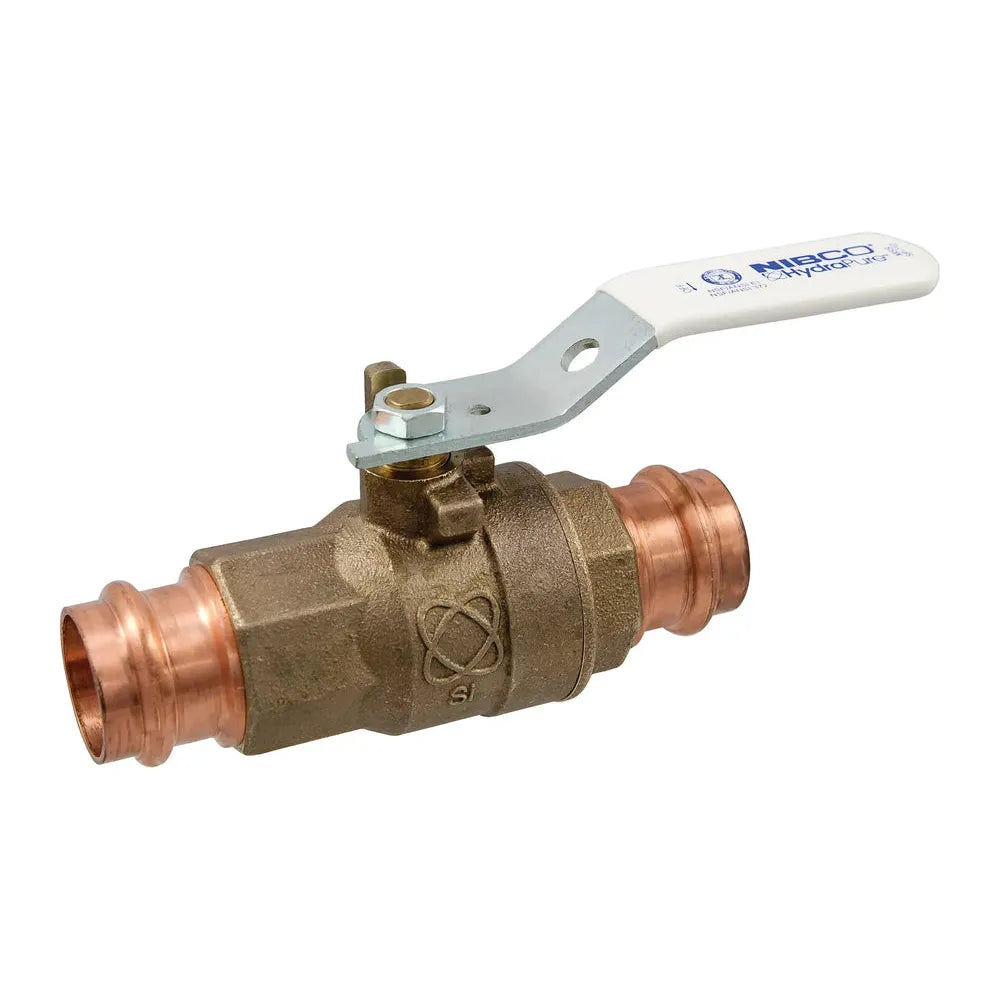

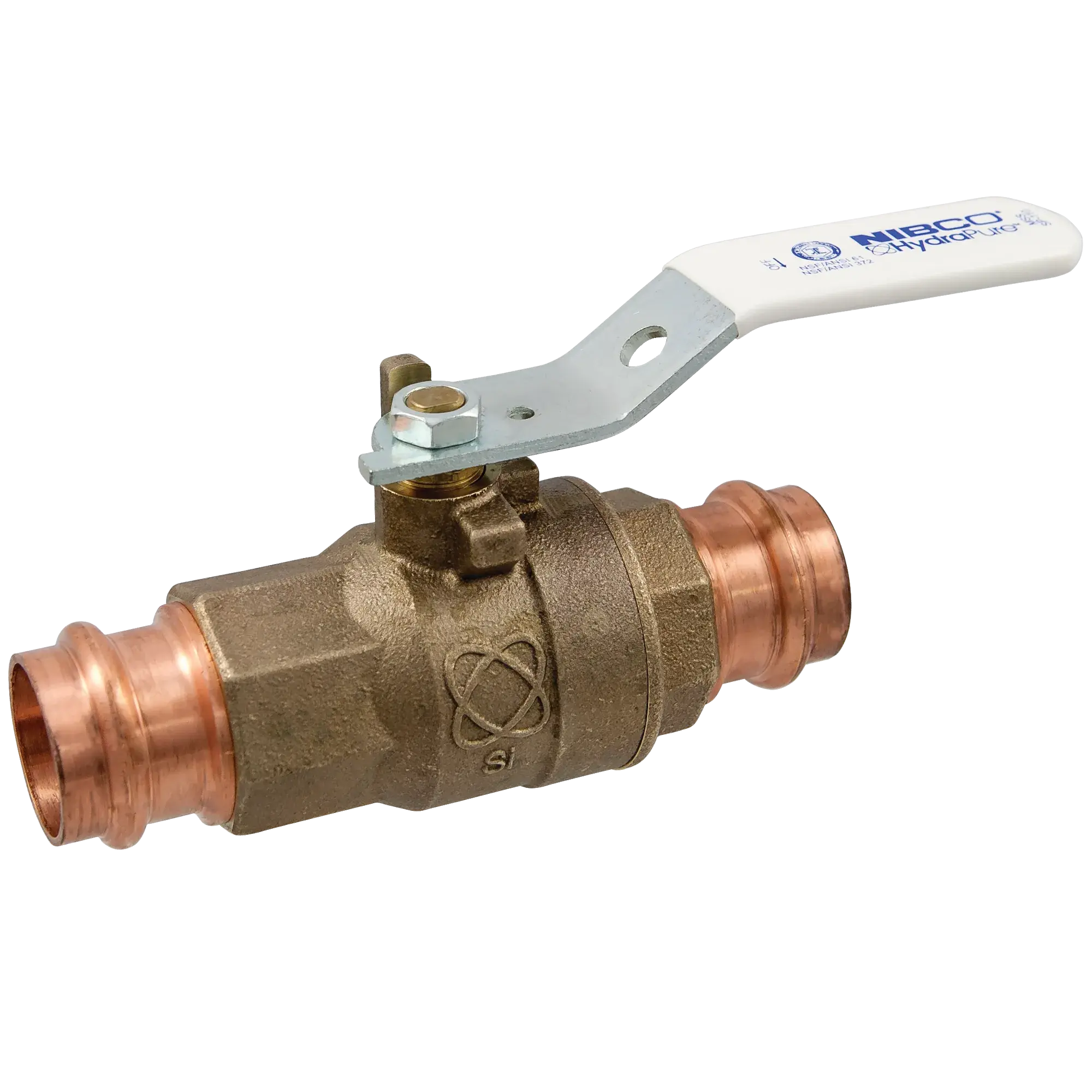

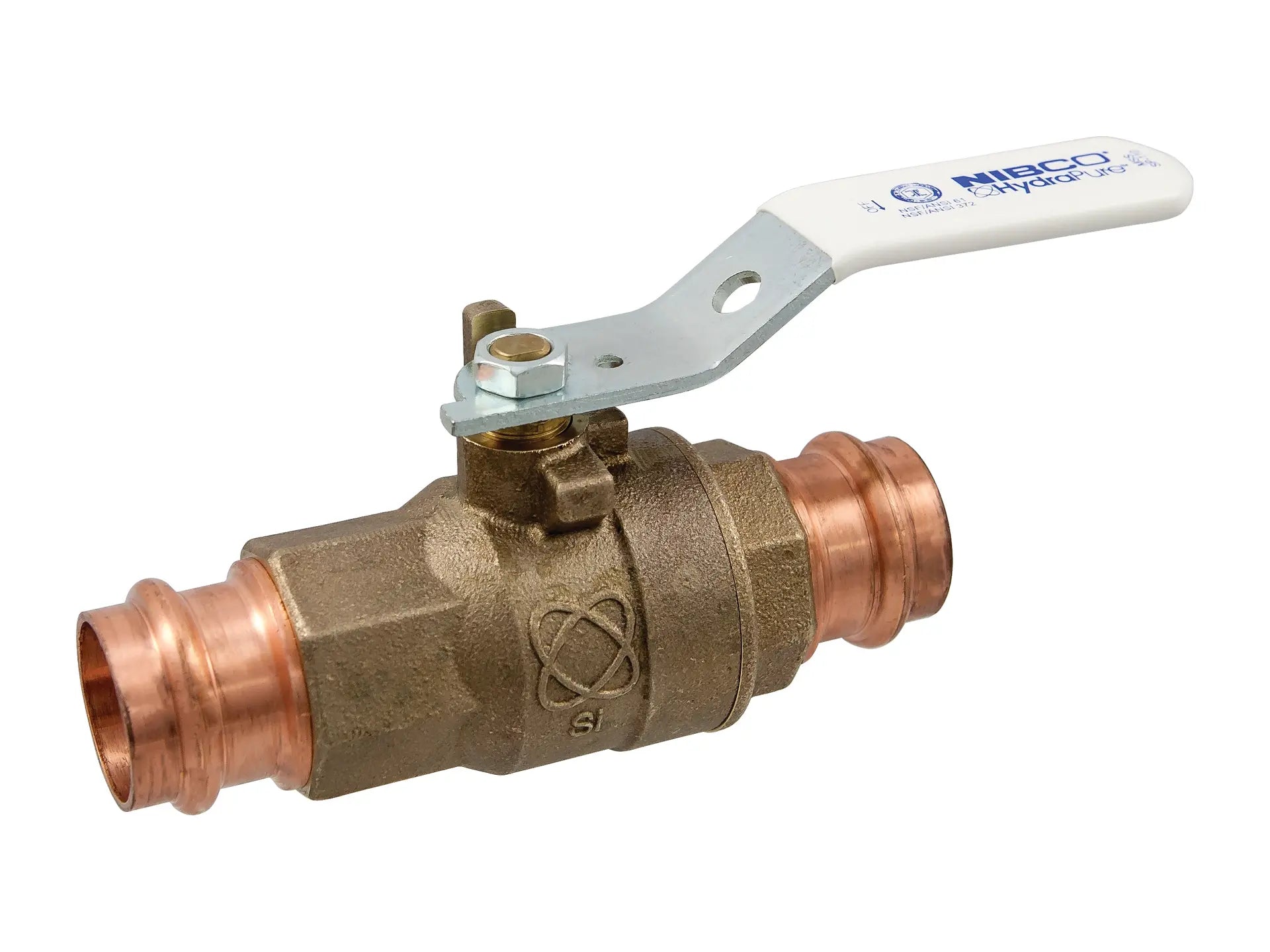

Nibco NFB84HN6 pc-585-66-lf 2-Piece Valve, 1/2 in Nominal, Female Press End Style, Full Port, Domestic

Product Description

The NIBCO NFB84HN6 Press System ball valve body is manufactured from lead free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Reinforced PTFE seat rings

Product Highlights

The valve ensures a clean, permanent, watertight seal in seconds, with no flame, solder or flux. It features a full port, stainless steel trim, and a blowout-proof stem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HN6
• Country of Origin: US

Technical Specifications

• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Female Press
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: PC-585-66-LF
• Temperature Rating: 250 deg F
• Trim Material: Stainless Steel
• Type: 2-Piece
• End connections: Press x press female end connections
• Resistant: Dezincification resistant
• Lead-free: Lead-free
• Conforms to: MSS SP-110
• Standards: NSF/ANSI/CAN-61, NSF/ANSI/CAN-372, IAPMO/ANSI Z1157
• Manufacturer: NIBCO
• Part Number: NFB84HN6
• Model: PC-585-66-LF-NS
• Type of Valve: Ball
• Nominal Pipe Size: 1/2" x 1/2"
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447791
• Length: 4.25"
• Width: 4.19"
• Height: 2.25"
