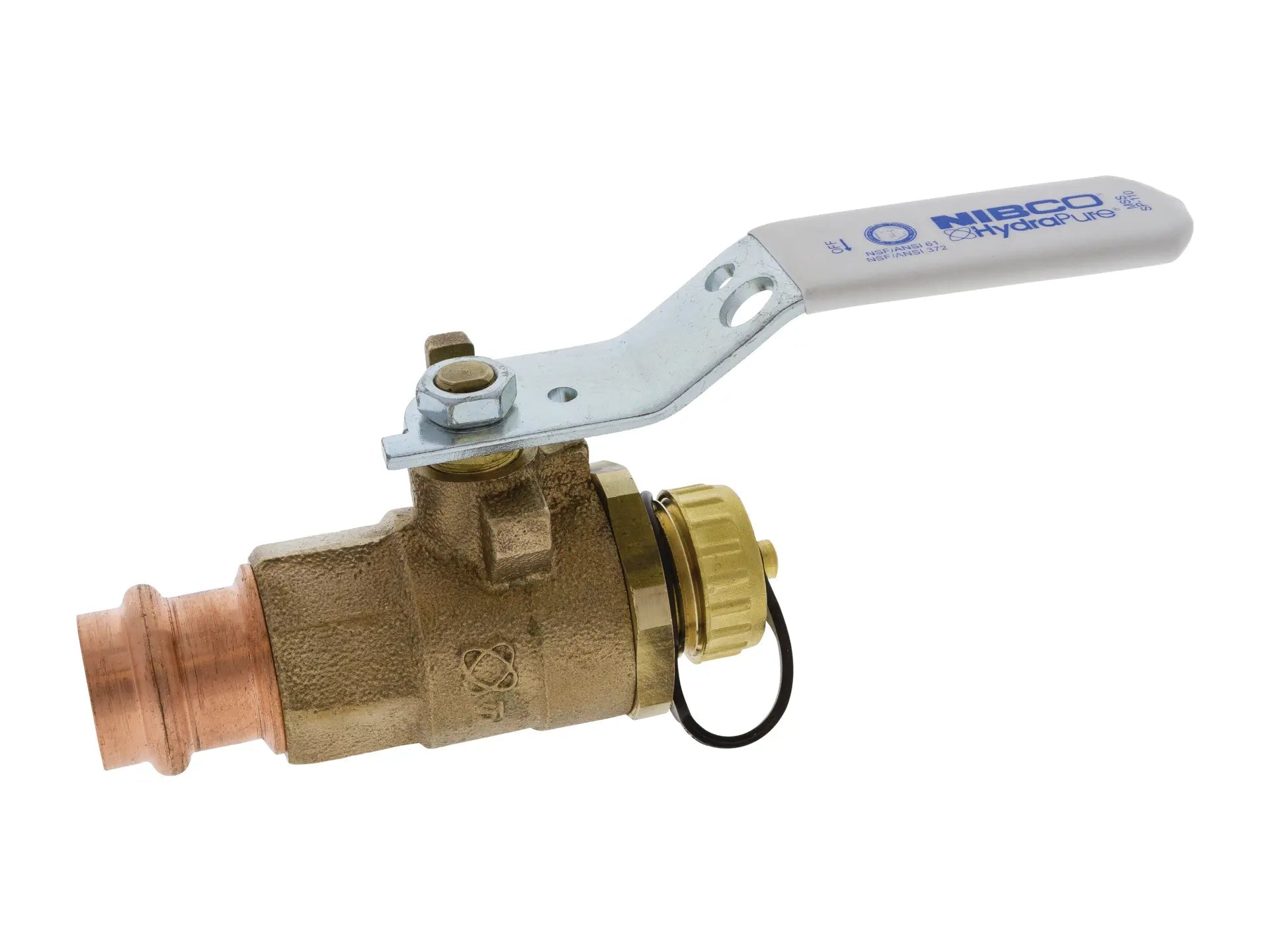

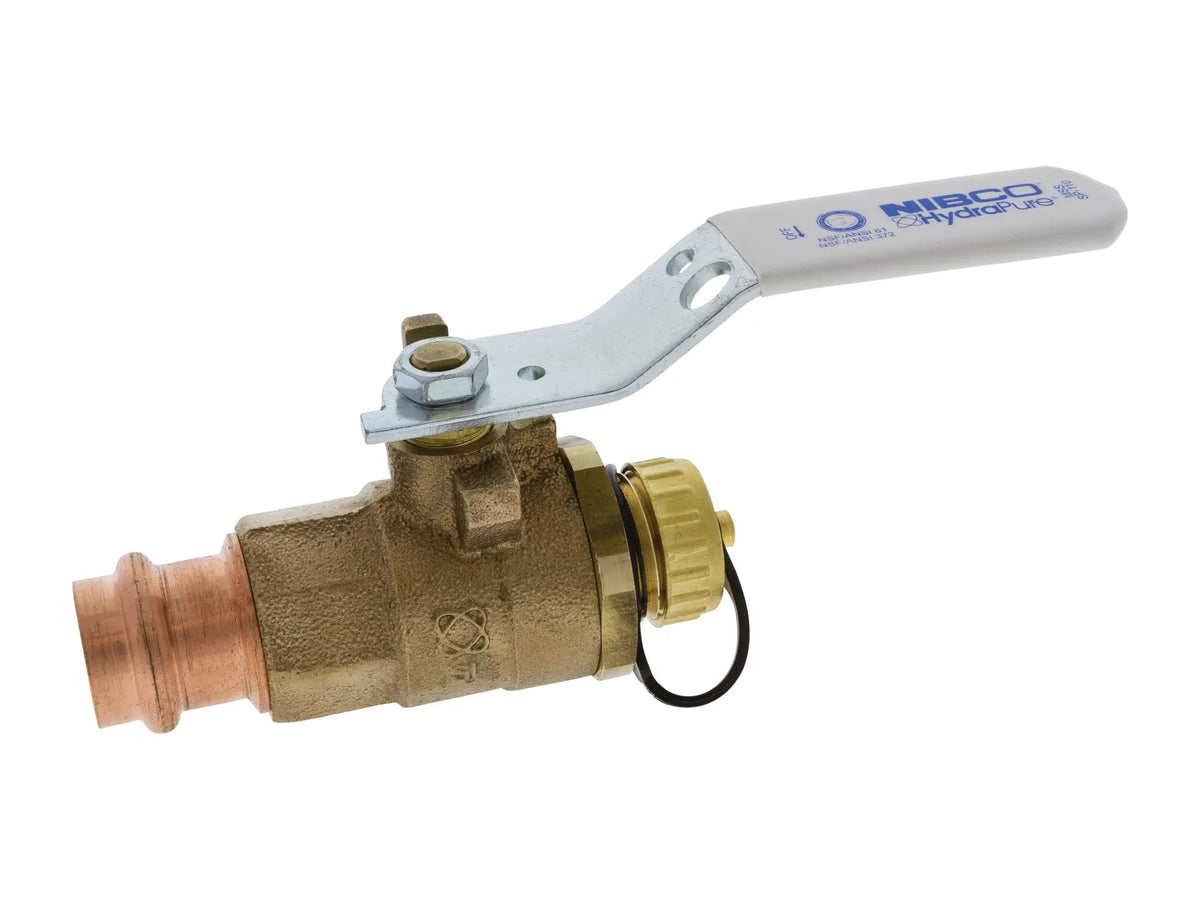

Nibco NFB84HH8 Press System Ball Valve 3/4 inches x 3/4 inches

Product Description

The NIBCO NFB84HH8 Press System ball valve includes a hose cap and chain attached to the valve. Manufactured from lead free HydraPure Performance Bronze alloy, it is dezincification resistant. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for a clean, permanent, watertight seal.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Copper-to-copper connections

Product Highlights

The NIBCO Press System ball valve features a full port, stainless steel trim, and a blowout-proof stem. It conforms to MSS SP-110, IAPMO-IGC-157, NSF/ANSI-61-8, and NSF/ANSI-372.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HH8
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NFB84HH8
• Model: PC-585-66-LF-HC
• Series: PC-585-66-LF-HC
• Type of Valve: Ball Valve
• Nominal Pipe Size: 3/4" x 3/4"
• End Connection Type: Female Press x Hose Cap & Chain
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447685
• Length: 7.28"
• Width: 3.1"
• Height: 1.75"
• End Connection 1: Press
• End Connection 2: GHT
• End Connections: Press x GHT
• FM Approved: No
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-145
• Maximum Temperature: 250
• NSF: NSF 372, NSF 61-8
• NSF Certified: Yes
• Pressure - High: 250
• Pressure Class: 250#
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Stem: Blowout-proof
• Valve Port Opening: Full Port
• Valve Size: 3/4 in
• Weight: 1.541
