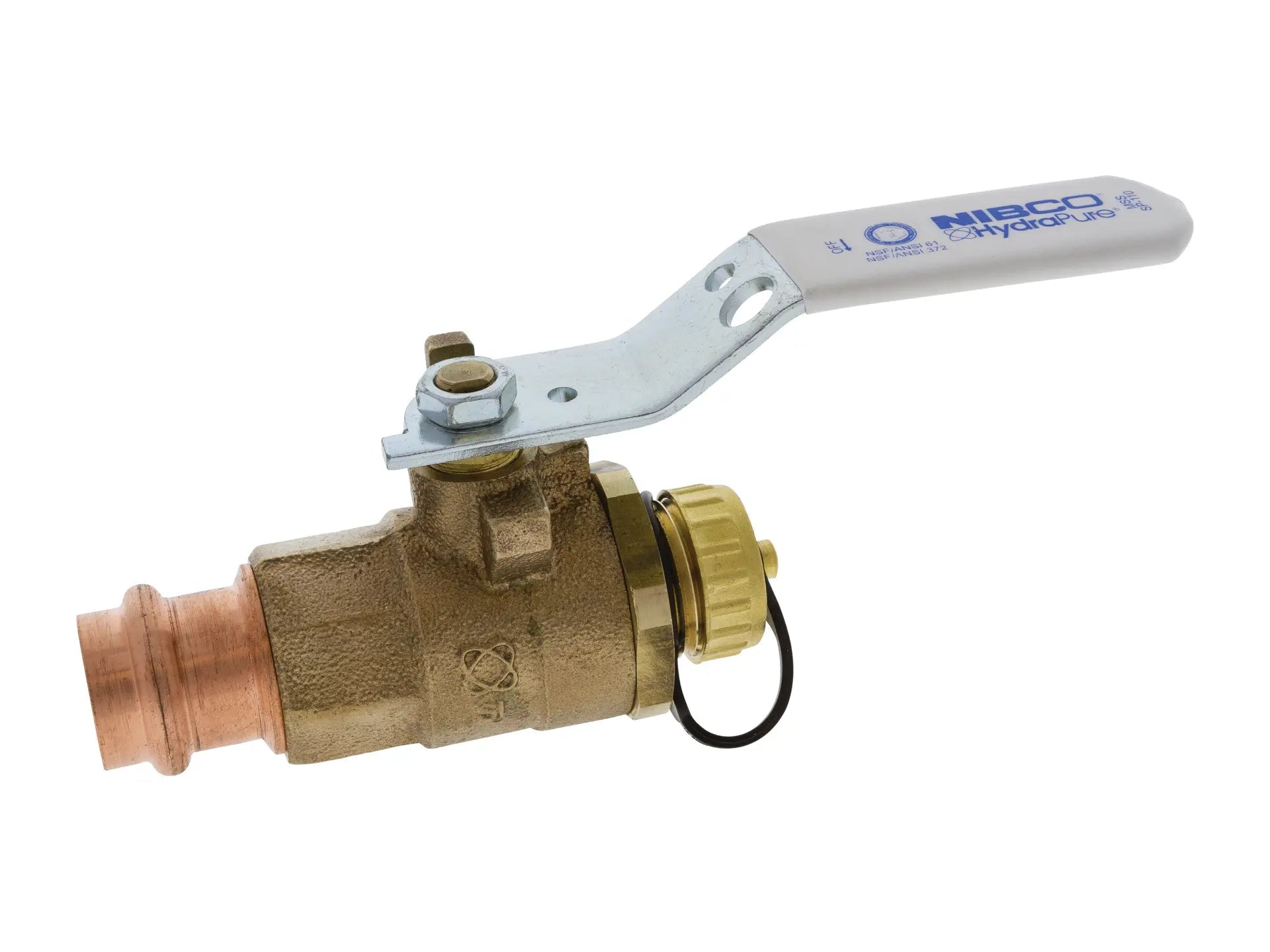

Nibco NFB843X8 Ball Valve 3/4 inches x 3/4 inches

Product Description

The NIBCO NFB843X8 Press System ball valve features a hose cap and chain. Constructed from lead-free HydraPure Performance Bronze alloy, it resists dezincification. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring, it ensures a watertight seal. The NIBCO Press System is user-friendly, quick, and easy to install.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Copper-to-copper connections

Product Highlights

Lead-free bronze ball valve with press-to-connect end connections for quick, easy, and reliable copper joinery.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB843X8
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NFB843X8
• Model: PC-585-80-LF-HC
• Series: PC-585-80-LF-HC
• Type of Valve: Ball
• Nominal Pipe Size: 3/4" x 3/4"
• End Connection Type: Female Press x Hose Cap & Chain
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447609
• Length: 7.28"
• Width: 3.1"
• Height: 1.75"
