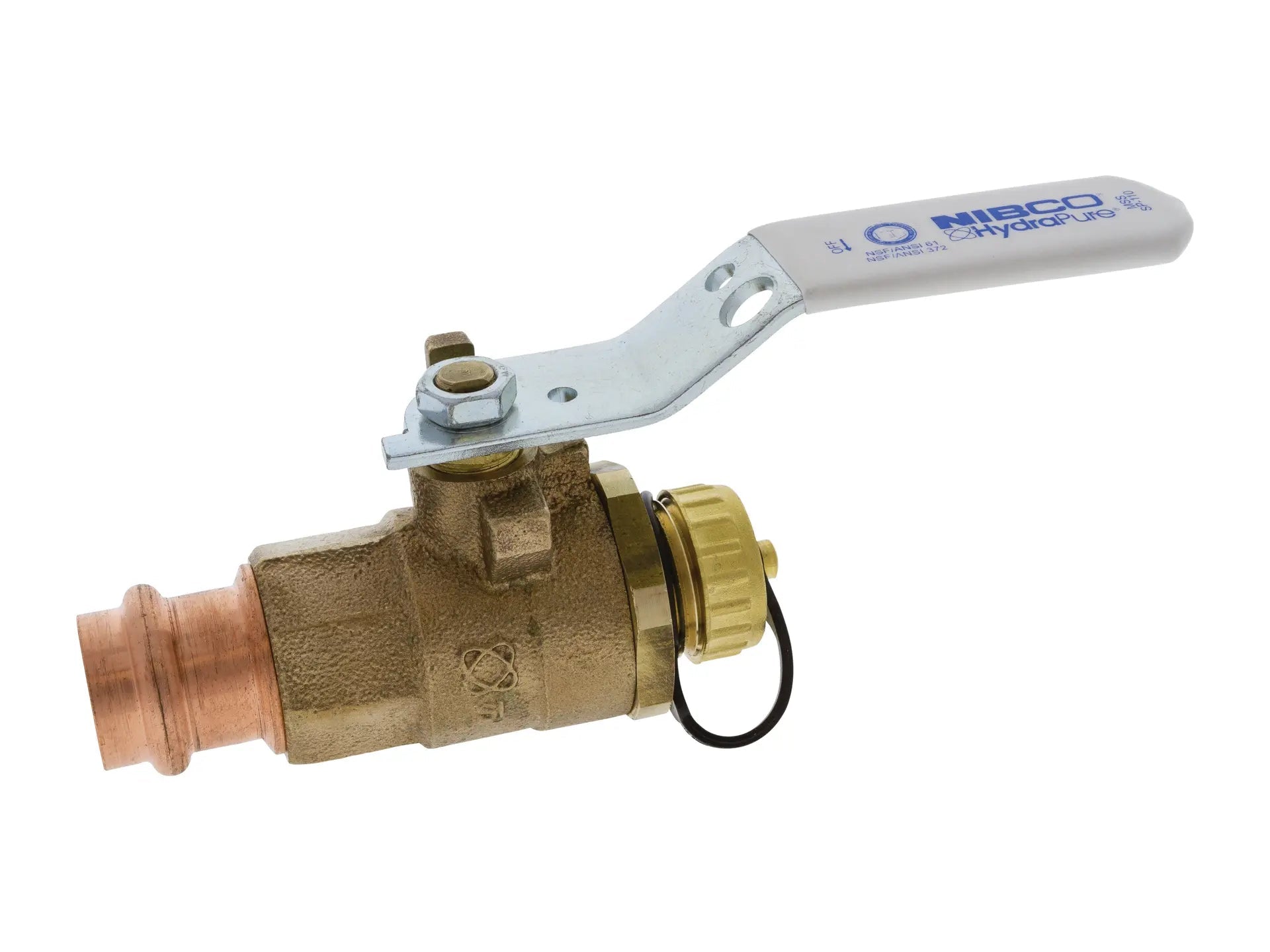

Nibco NFB843X6 Ball Valve 1/2 in. x 1/2 in.

Product Description

The NIBCO NFB843X6 Press System ball valve features a hose cap and chain. Constructed from lead-free HydraPure Performance Bronze alloy, it resists dezincification. Designed with press-to-connect copper end connections, it includes an inboard bead and EPDM O-ring for quick, watertight seals without flame, solder, or flux. This system provides user-friendly, rapid installation with a visible "N" witness mark when crimped.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Copper-to-copper connections

Product Highlights

The NIBCO Press System offers precision-engineered copper fittings, bronze valves, and accessories.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB843X6
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NFB843X6
• Model: PC-585-80-LF-HC
• Series: PC-585-80-LF-HC
• Type of Valve: Ball
• Nominal Pipe Size: 1/2" x 1/2"
• End Connection Type: Female Press x Hose Cap & Chain
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447593
• Length: 5.93"
• Width: 2.57"
• Height: 1.31"
• MPN: NFB843X6
