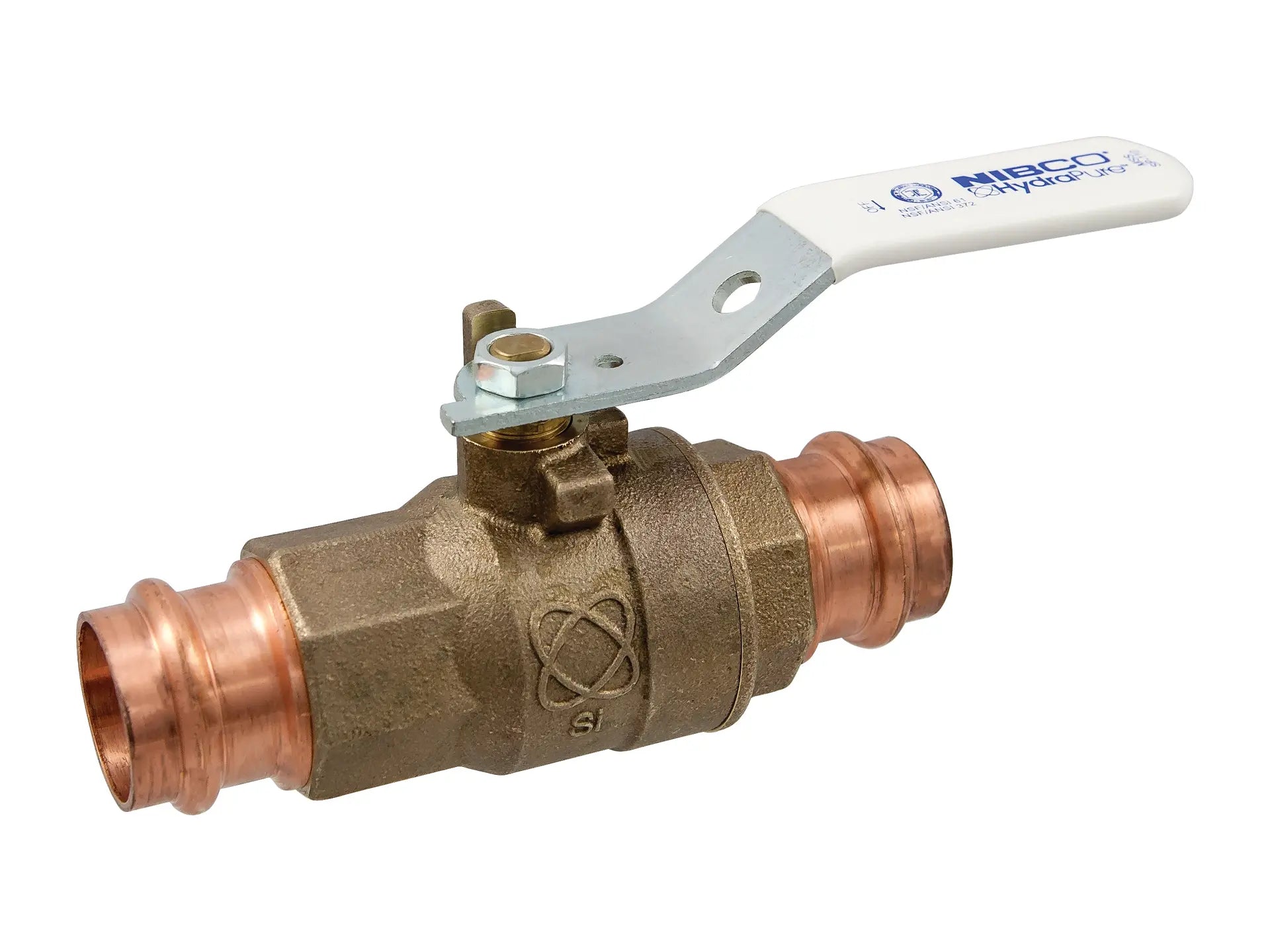

Nibco NFB842XC PC-585-80-LF 2-Piece Valve 1-1/2 in Nominal

Product Description

The NIBCO® NFB842XC PC-585-80-LF 2-Piece Valve is manufactured from lead free* HydraPure™ Performance Bronze™ alloy and is dezincification resistant. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure ensures a clean, permanent, watertight seal in seconds.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Reinforced PTFE seat rings

Product Highlights

The NIBCO 2-piece valve features press leak-detection, multiple handle options, and a blow-out proof stem actuator.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB842XC
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Press
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: PC-585-80-LF
• Temperature Rating: 250 deg F
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NF842XC
• Model: PC-585-80-LF-NS
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447586
• Length: 7.56"
• Width: 6.85"
• Height: 2.94"
