Nibco NFB842XB Ball Valve 1-1/4 x 1-1/4 in PC-585-80-LF

Product Description

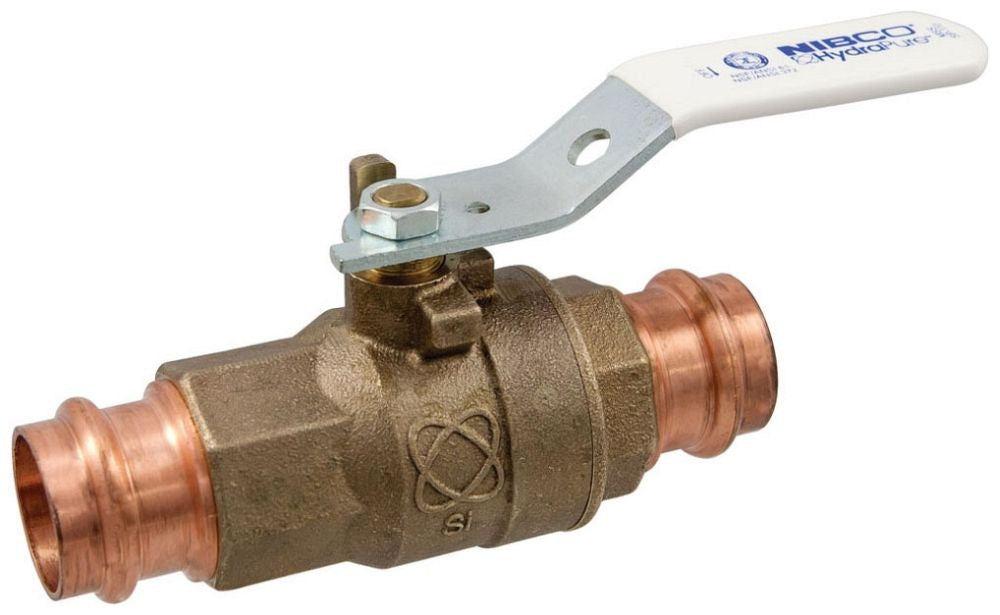

The NIBCO NFB842XB ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Blow-Out proof stem
• Reinforced PTFE seat rings

Product Highlights

This ball valve features press x press female end connections, multiple handle options, and is dezincification resistant. Maximum service temperature 250 deg F.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB842XB
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Insulated Handle
• Ball Material: Bronze
• Domestic/Import: Domestic
• End Style: Press
• Nominal Size: 1-1/4 x 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: PC-585-80-LF
• Temperature Rating: 250 deg F
• Brand Name: Nibco
• Mfg Part#: NFB842XB
• Applicable Standard: NSF/ANSI 61/372/Z1157, MSS SP-110, IAPMO
• Application: USE IN SYSTEMS THAT DELIVER WATER FOR HUMAN CONSUMPTION APPLICATION
• Inclusions/Features: BLOWOUT-PROOF STEM, BRONZE TRIM
• Body Material: DZR BRONZE
• End Connection: FEMALE PRESS X FEMALE PRESS
• Actuation Type: 1/4 TURN, EXTENDED INSULATED HANDLE
• Stem Material: SILICON BRONZE
• Lead-Free: LEAD-FREE
• Model: PC-585-80-LF
• Type: 2-PIECE
• Manufacturer: NIBCO INC
