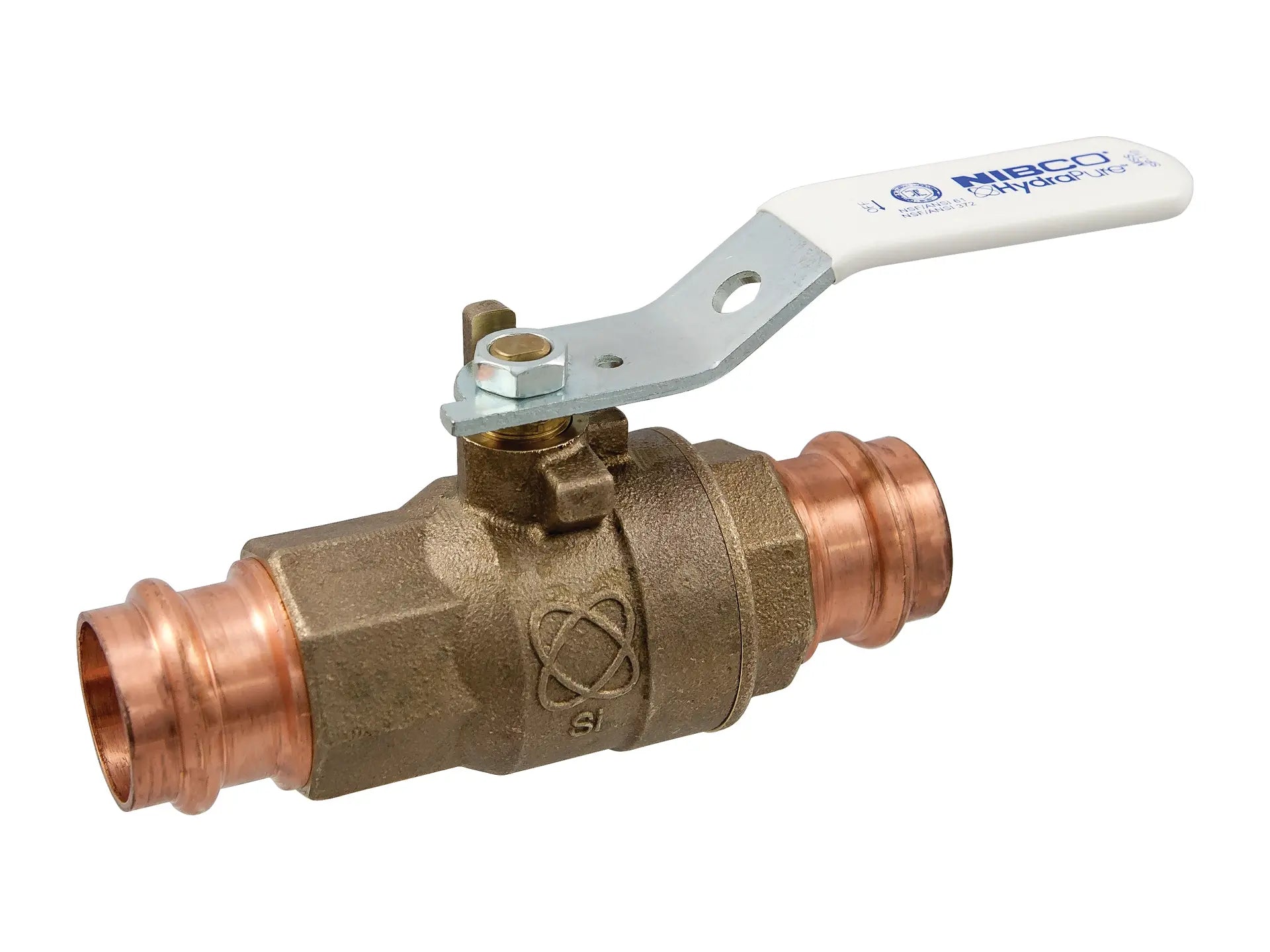

Nibco NFB842X8 PC-585-80-LF 2-Piece Valve, 3/4 in Female Press End Style

Product Description

The NIBCO NFB842X8 PC-585-80-LF 2-Piece Valve features a lead free HydraPure Performance Bronze alloy body that resists dezincification. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring, it ensures a clean, permanent, watertight seal. It has a pressure rating of 250 psi and a maximum service temperature of 250 deg F.

• Copper-to-copper connections
• Blow-Out proof stem
• Reinforced PTFE seat rings

Product Highlights

The NIBCO 2-Piece Valve offers reliable performance with its dezincification-resistant bronze alloy, secure press-to-connect design, and durable construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB842X8
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: NIB-SEAL Extended Insulated Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Female Press
• Inlet to Outlet Length: 5 in
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: PC-585-80-LF
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 250 deg F
• Manufacturer: NIBCO
• Part Number: NFB842X8
• Model: PC-585-80-LF-NS
• Type of Valve: Ball
• Nominal Pipe Size: 3/4" x 3/4"
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447555
• Length: 5"
• Width: 4.62"
• Height: 2.25"
