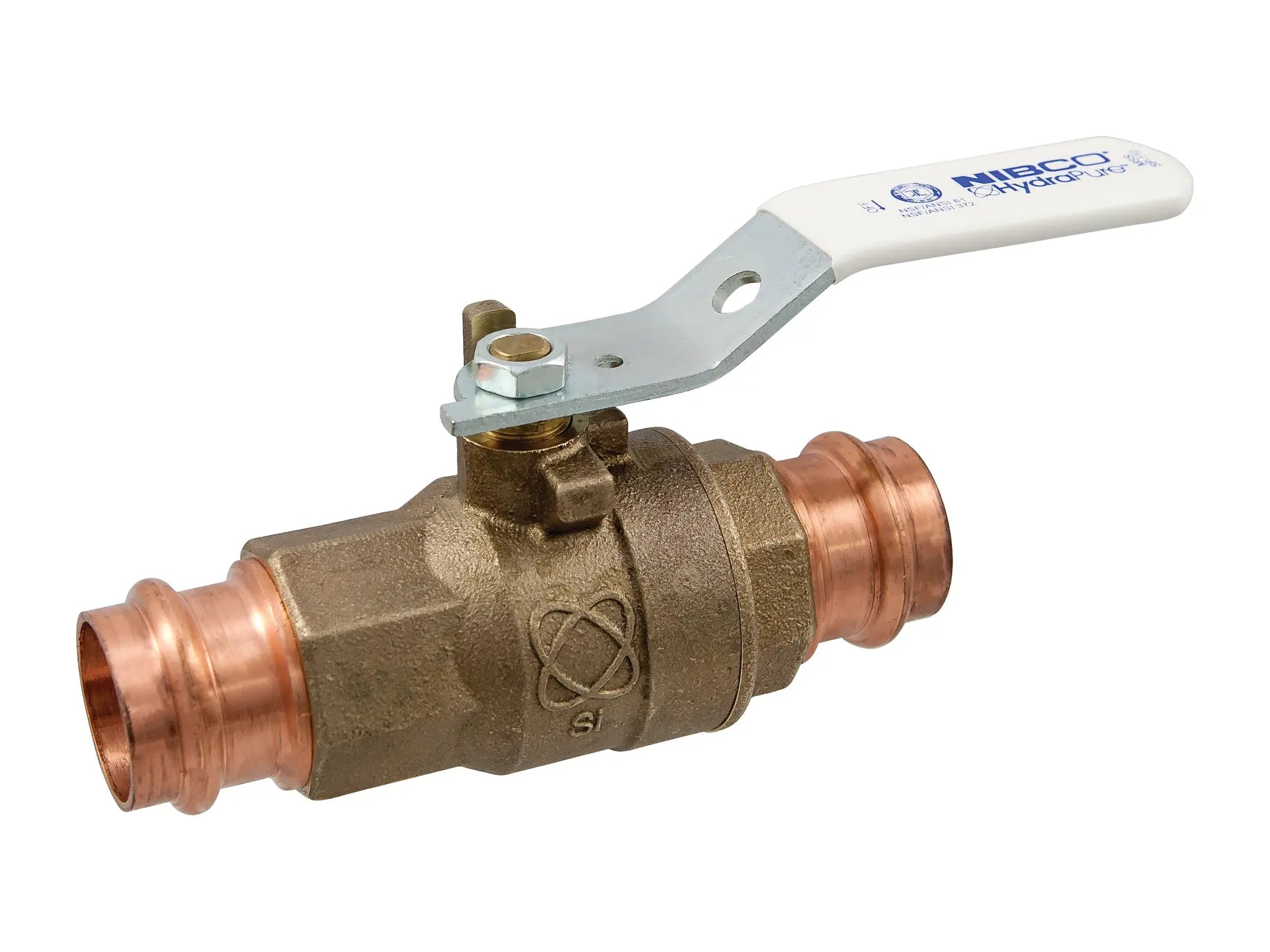

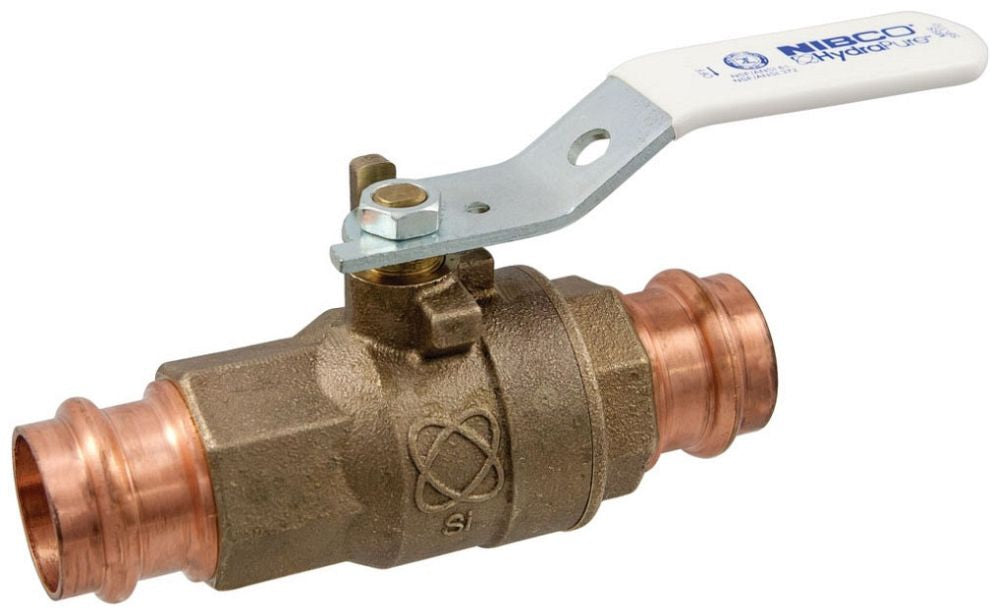

Nibco NFB840XC PC-585-80-LF Ball Valve

Product Description

The NIBCO NFB840XC is a Press System ball valve designed for quick and easy installation. This lead-free HydraPure Performance Bronze ball valve is specifically designed for use in systems that deliver water for human consumption. It applies the proven performance of press technology to NIBCO valves and fittings.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Blowout-proof stem

Product Highlights

The NIBCO Press System features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB840XC
• Country of Origin: US

Technical Specifications

• Actuator Type: Standard Lever Handle
• Ball Material: Bronze
• Body Material: Bronze
• End Connection: Press x Press
• Inlet to Outlet Length: 7.56 in
• Media: Water
• Nominal Size: 1-1/2 Inch
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 250 PSI Non-Shock CWP
• Series: PC-585-80-LF
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 Deg F
• Top to Inlet Center: 3.32 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Applicable Standard: MSS SP-145, NSF/ANSI 61/372, IAPMO IGC 157
• Application: Process Water System for Commercial, Industrial and Residential, HVAC, Potable Water
• Inclusions/Features: Blow-Out Proof Stem Design, Reinforced PTFE Seat Ring, Inboard Bead and EPDM O-Ring, Press Leak-Detection Feature, Dezincification Resistant
• Seal Material: PTFE Stem Packing
• Seat Material: RPTFE
• Stem Material: ASTM B371 C69300 Silicon Bronze Alloy
• VEN Product No: NF840XC
• Vendor UPC (12): 039923447456
• Vendor Short Name: 039923
• Brand: Nibco
• Model: NFB840XC
• Country of Origin: United States
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447456
• Length: 10.54"
• Width: 4.74"
• Height: 2.84"
• Construction: 2-Piece
• Dimensions: 2.84 in H x 4.74 in W x 10.54 in L
• Domestic/Import: Domestic
