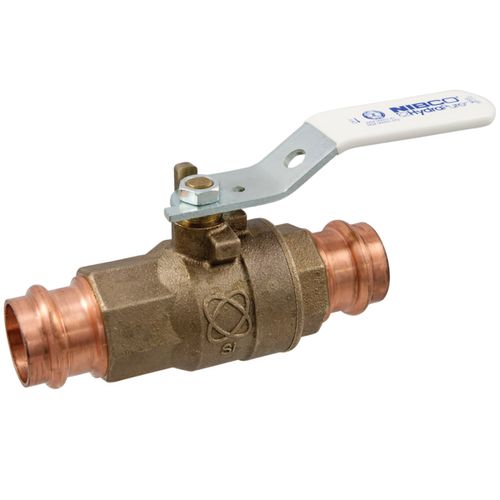

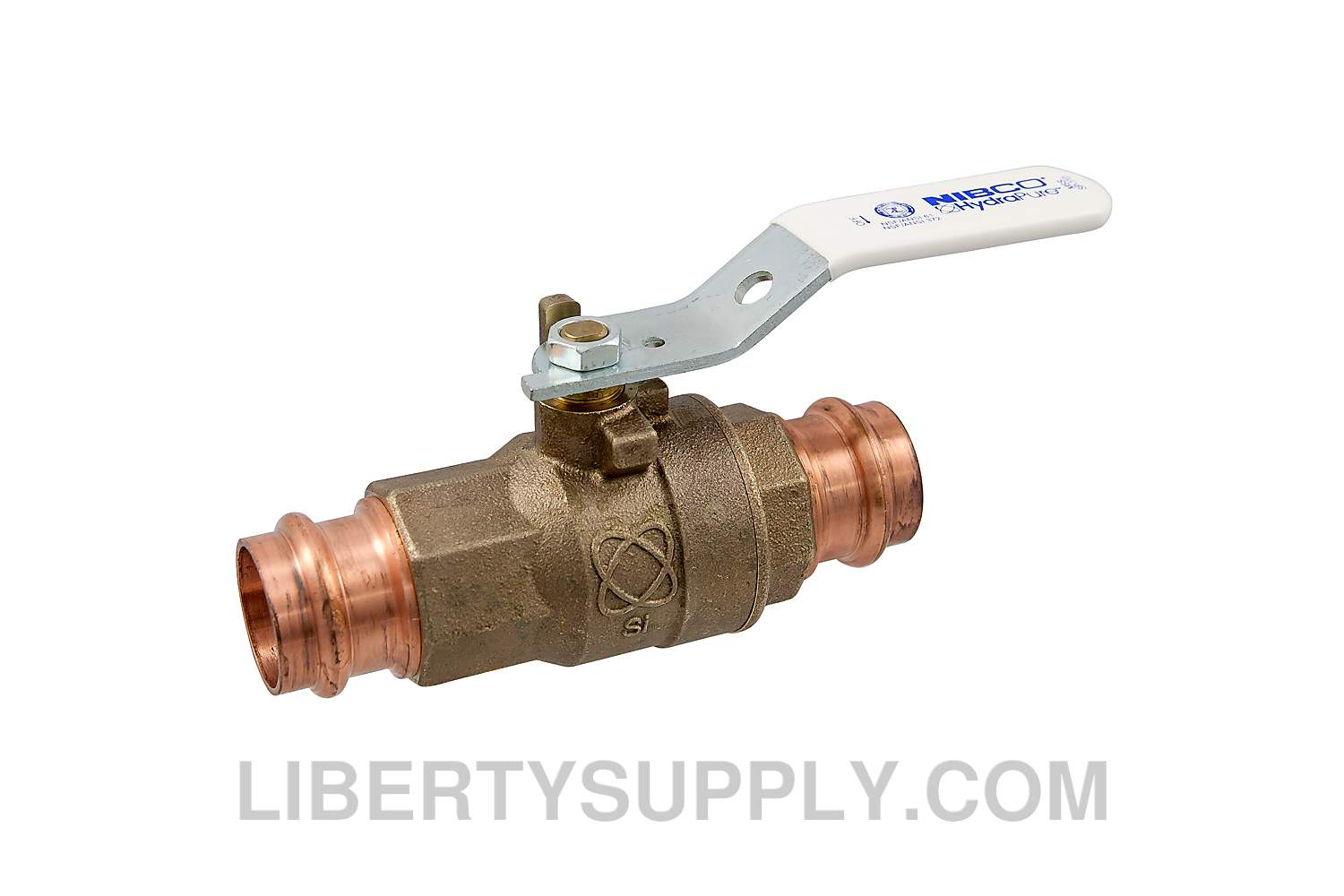

NIBCO NFB840XB Press System Ball Valve

Product Description

The NIBCO Press System ball valve NFB840XB has a lead-free HydraPure Performance Bronze alloy body. This material resists dezincification and is designed for copper connections. The valve uses press-to-connect copper end connections and EPDM O-rings for a watertight seal. Applying a press-fit tool secures the O-ring onto the tube, forming a permanent joint without flame, solder, or flux. Ideal for systems delivering water for human use.

• Press x press female end connections
• Full port design
• Meets LL Compliant NSF/ANSI 372 potable water code

Product Highlights

This valve ensures a safe and efficient means of connecting pipes with minimal effort and no additional tools.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NFB840XB

Technical Specifications

• Model: PC-585-80-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/4 x 1-1/4
• Connection Type: Press x Press
• Material: Lead-Free Bronze
• Ball Port Style: Full Port
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
