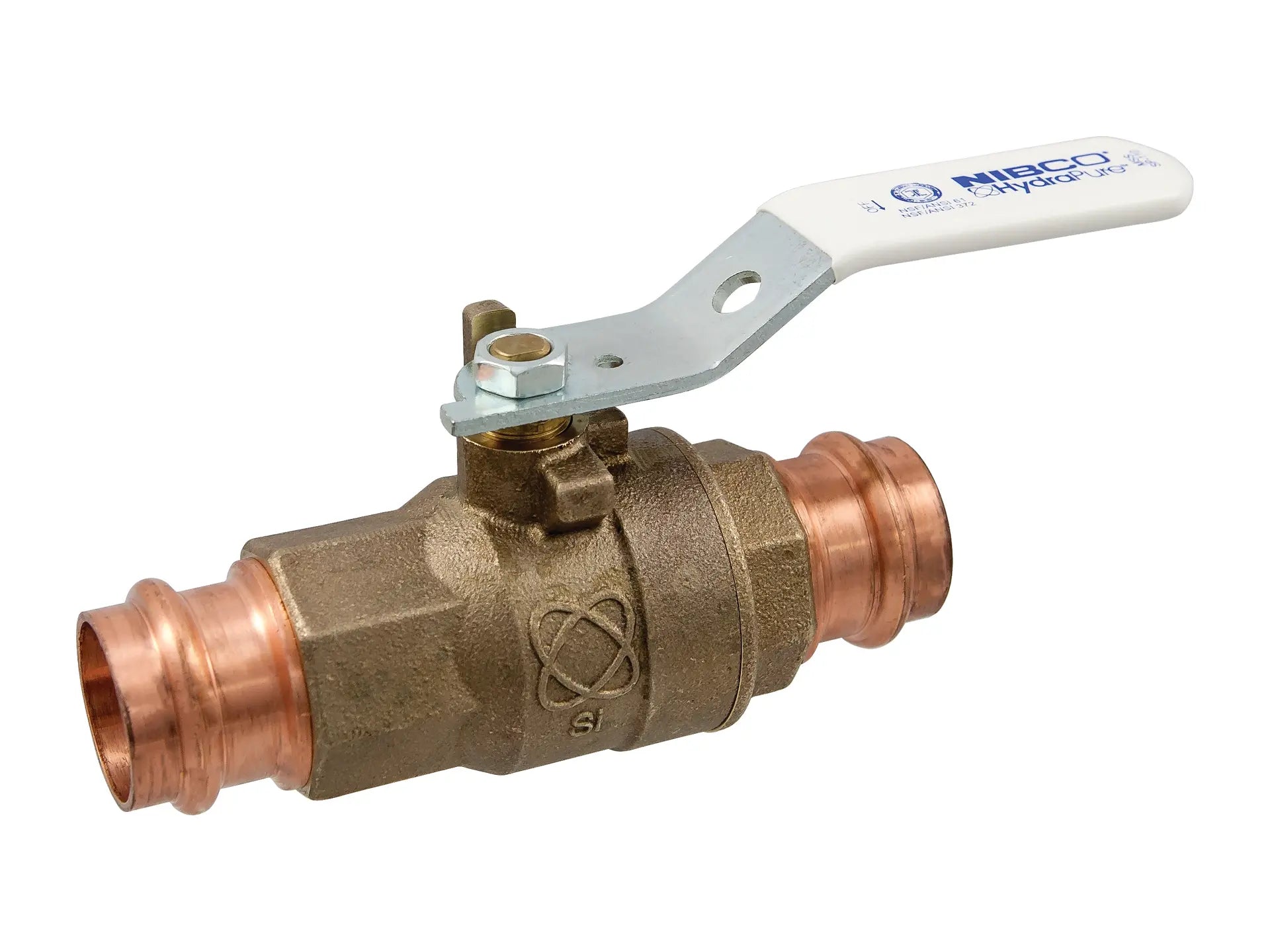

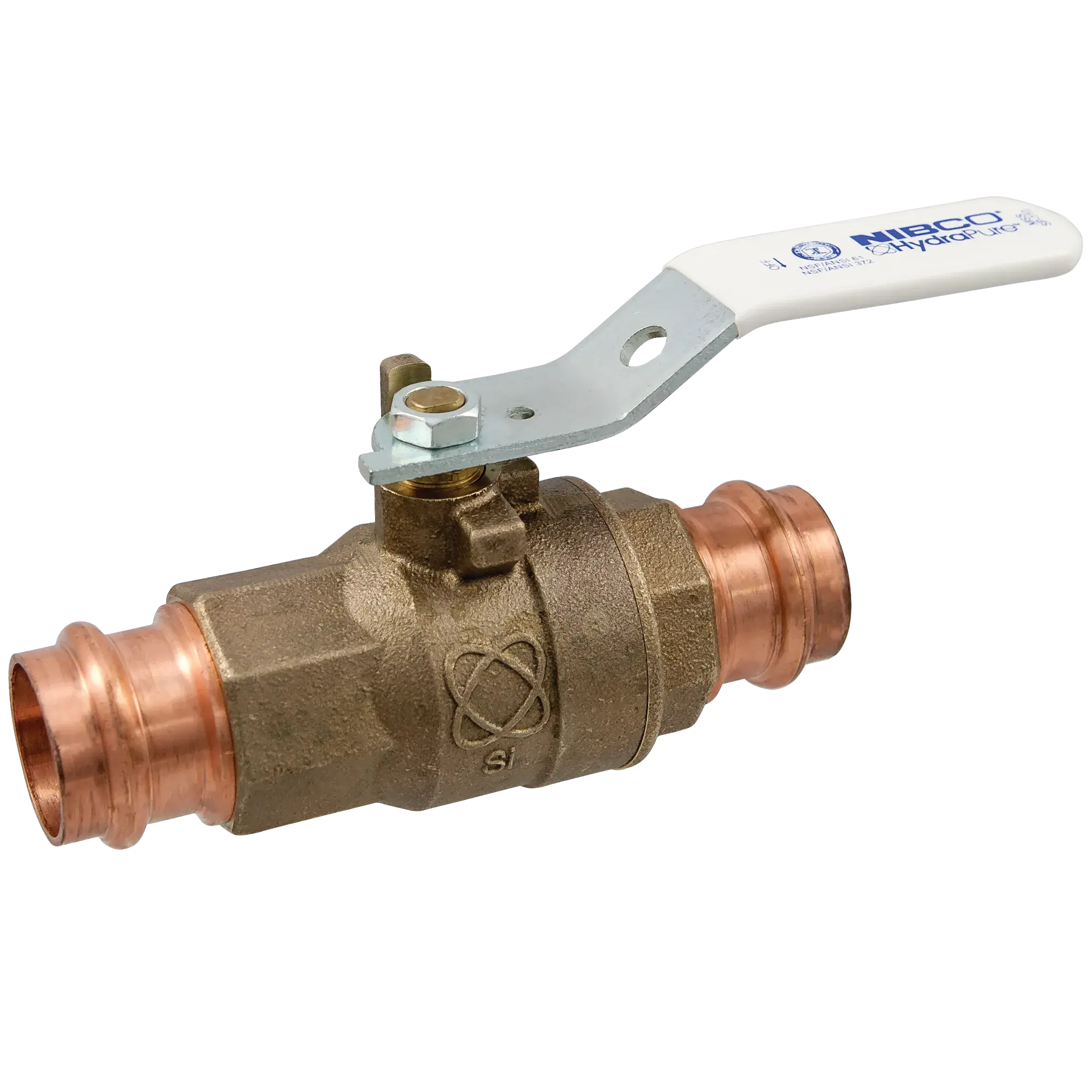

Nibco NFB840XA Ball Valve Lead-Free, Full Port, Press Ends, 250 PSI

Product Description

The NIBCO NFB840XA press system ball valve body is manufactured from lead free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery.

• Lead-free
• Full port
• Press Ends

Product Highlights

The NIBCO ball valve ensures a clean, permanent, watertight seal in seconds, with no flame, solder or flux. Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure. Maximum service temperature 250°F.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB840XA
• Country of Origin: United States

Technical Specifications

• Valve pressure rating: 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature: 250°F
• Connections: Copper-to-copper connections
• Port: Full port
• Stem: Blowout-proof stem
• Seat rings: Reinforced PTFE seat rings
• End connections: Press x press female end connections
• Feature: Press leak-detection feature
• Handle options: Multiple handle options, including NIB-Seal®
• Resistant: Dezincification resistant
• Material: Lead-free Bronze
• Conforms to: MSS SP-110
• NSF/ANSI/CAN: NSF/ANSI/CAN-372
• IAPMO/ANSI: IAPMO/ANSI Z1157
• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Dimensions: 2.09 in H x 3.46 in W x 7.57 in L
• Domestic/Import: Domestic
• End Style: Press
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 225 psi
• Series: PC-585-80-LF
• Temperature Rating: 250 deg F
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NFB840XA
• Model: PC-585-80-LF
• Nominal Pipe Size: 1" x 1"
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447432
• Length: 7.57"
• Width: 3.46"
• Height: 2.09"
• Brand: BALL
• MPN: PC585-80-LF
• Country of Origin: United States
