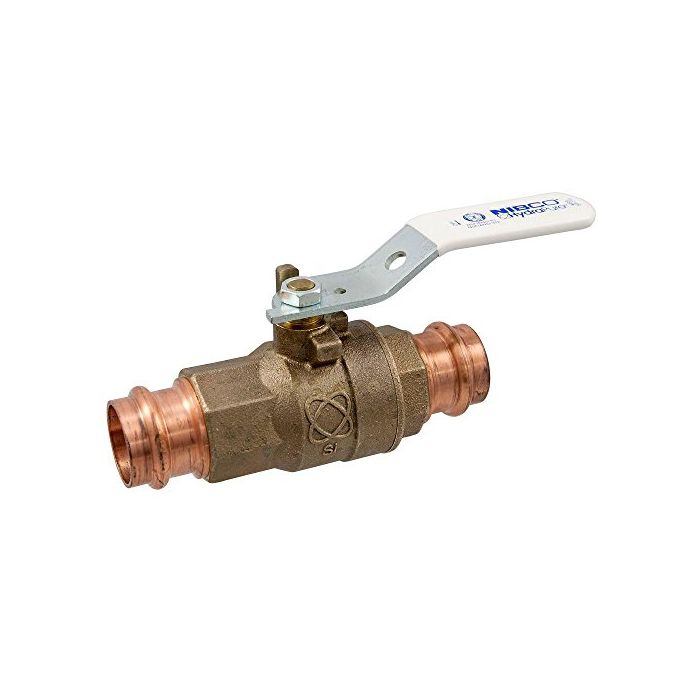

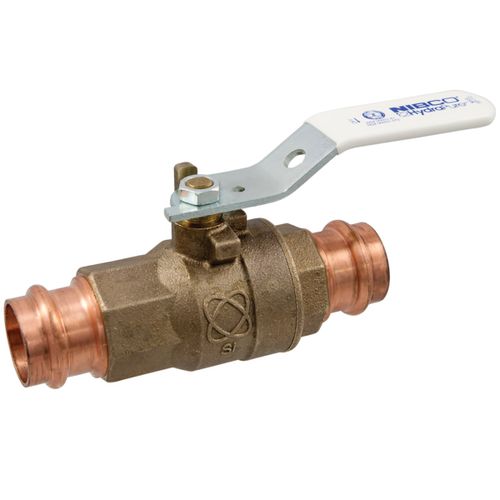

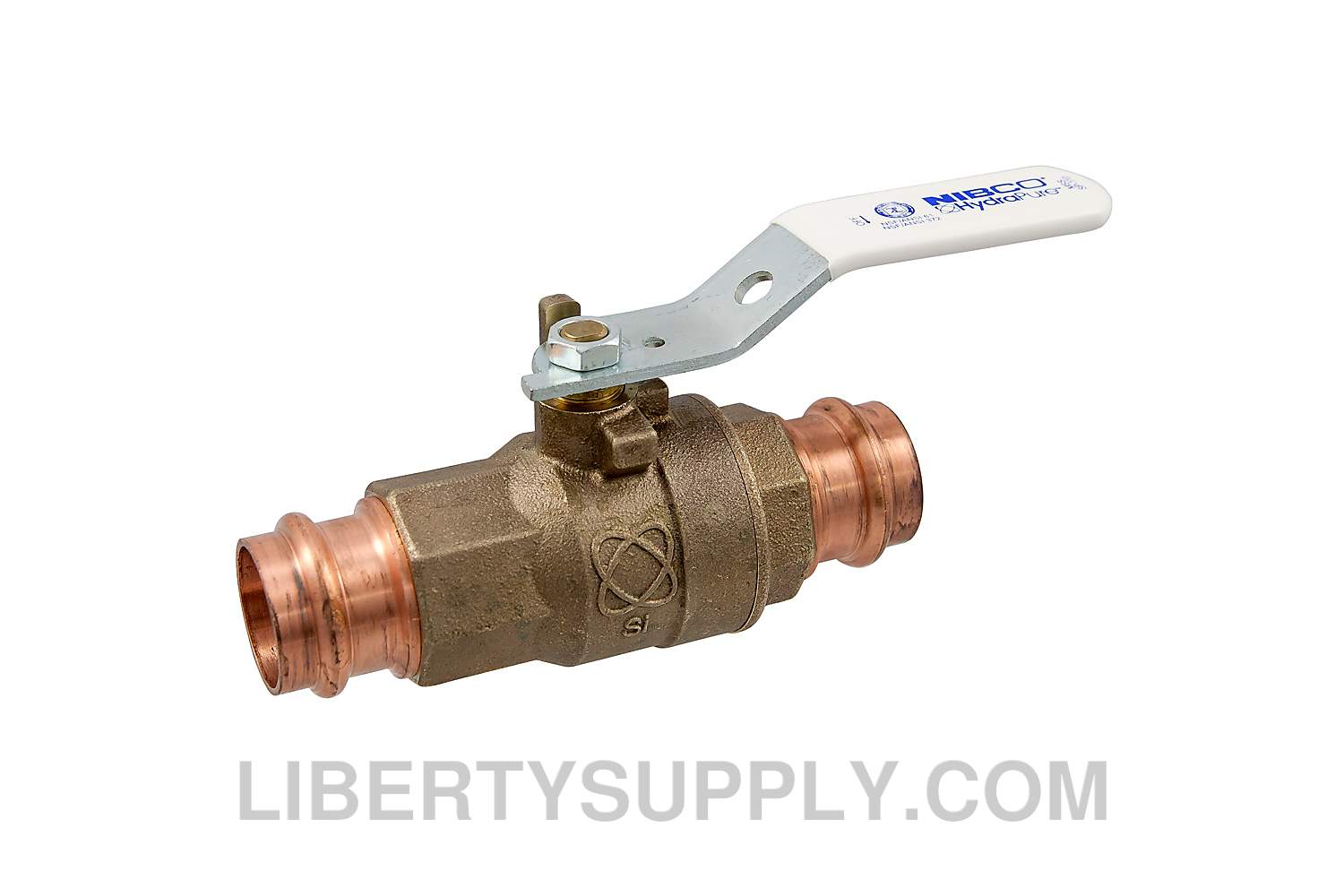

NIBCO NFB840X8 Ball Valve, 3/4 in, Press x Press, Lead-Free Bronze

Product Description

The NIBCO NFB840X8 ball valve features a lead-free bronze body designed for reliable use. This valve includes press-to-connect copper ends that simplify installation and ensure secure connections. The EPDM O-ring promotes a watertight seal when pressure is applied. The full port design allows for maximum flow, and the blowout-proof stem enhances safety and reliability.

• Lead-free bronze construction
• Quarter-turn operation with lever handle
• Press x press female connections

Product Highlights

This valve is ideal for water delivery systems, ensuring compliance with safety standards.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NFB840X8

Technical Specifications

• Model: PC-585-80-LF
• Series: PC-585-80-LF
• Valve Type: Ball
• Nominal Pipe Size: 3/4 x 3/4
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Full Port Style: Yes
• Ball Operator: CS Standard Lever Handle
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Operation Type: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447418
• Length: 7.31 inches
• Width: 3.06 inches
• Height: 1.56 inches
