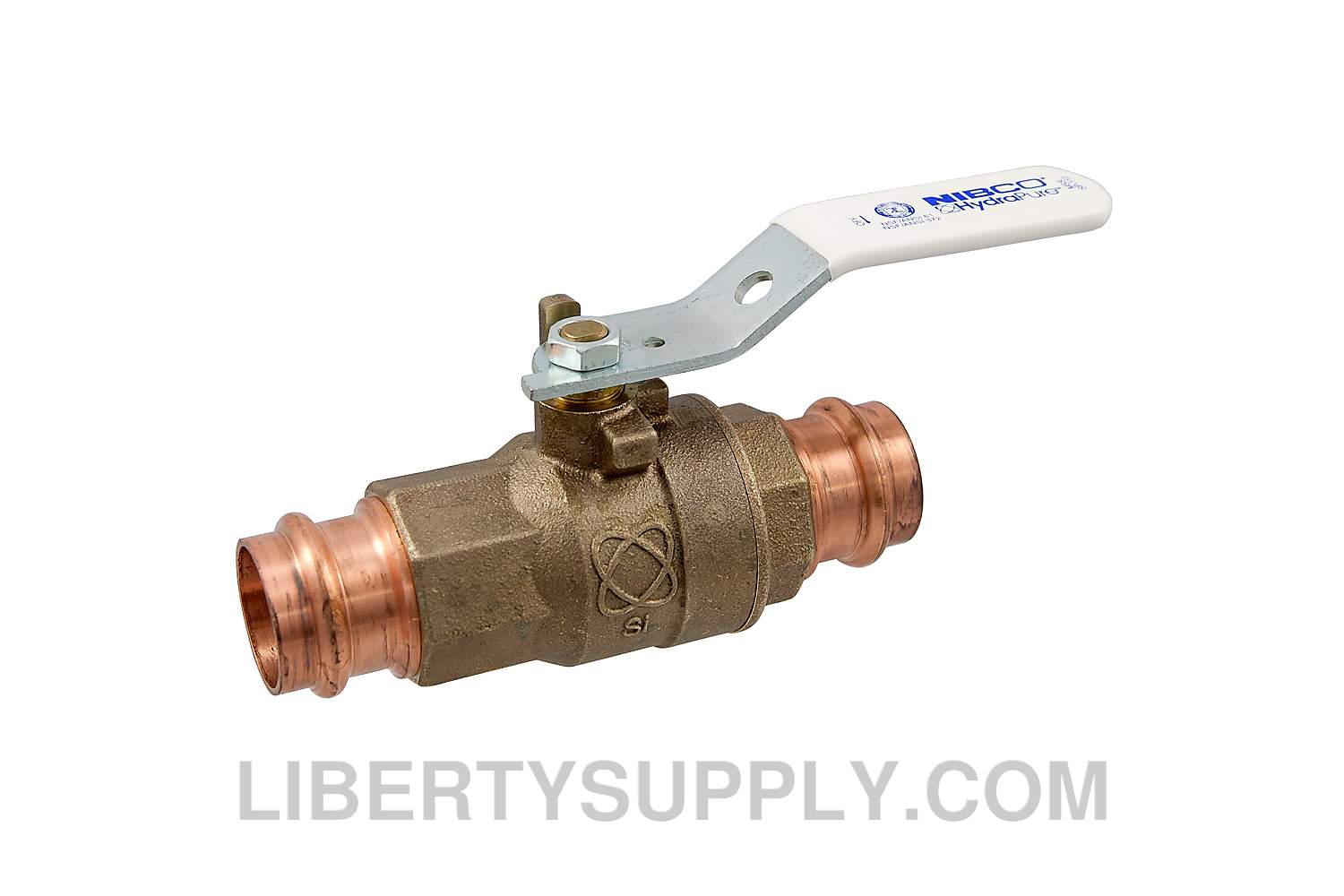

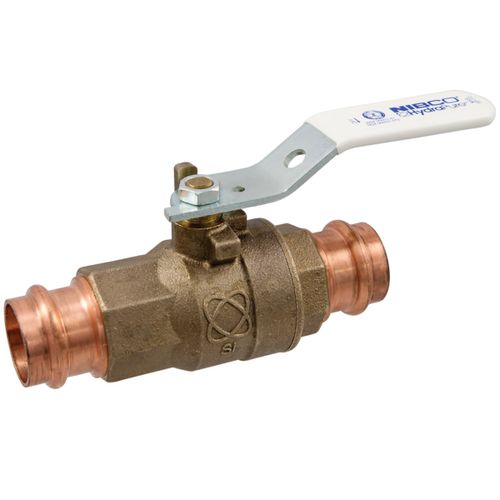

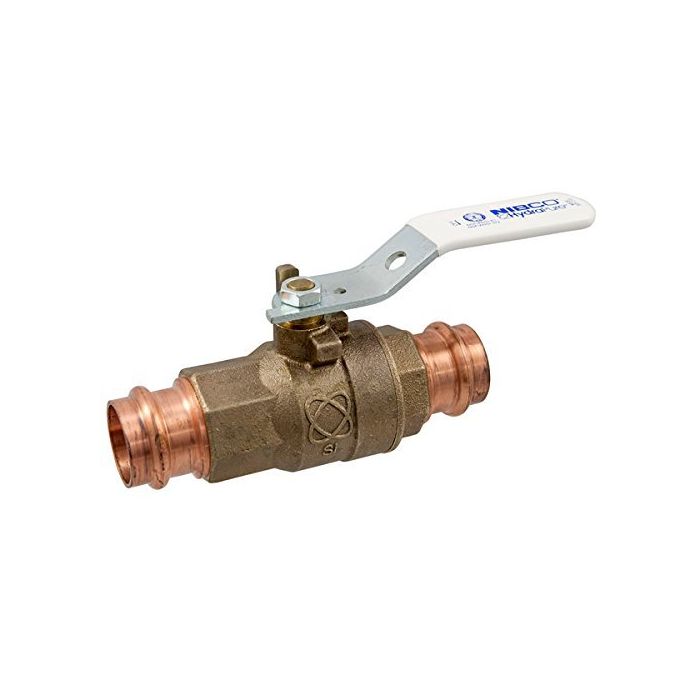

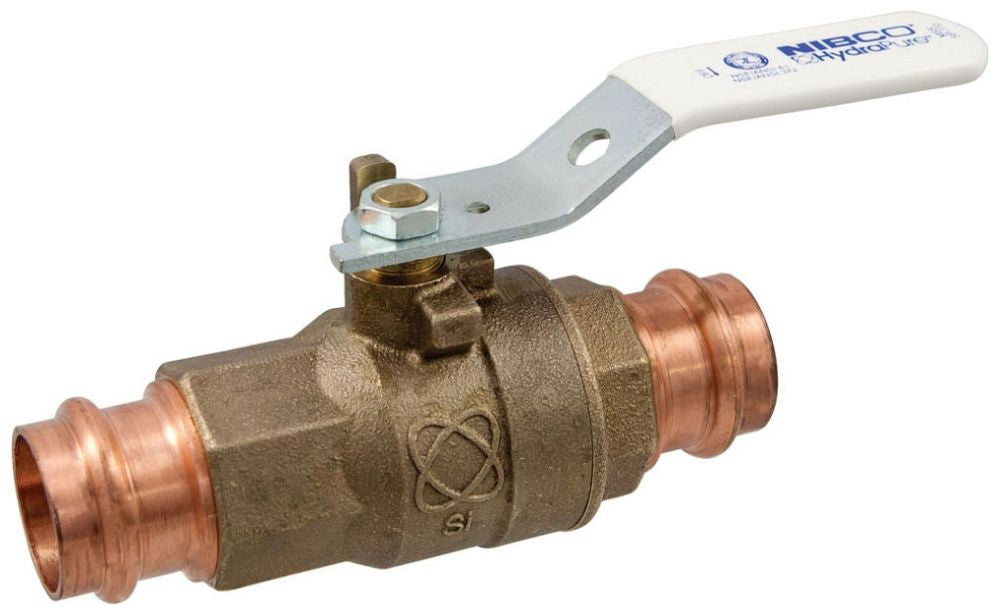

NIBCO NFB840X6 1/2 in. Press x Press Ball Valve

Product Description

The NIBCO NFB840X6 is a 1/2 inch press x press ball valve designed for reliable performance in water systems. This valve is made from lead-free HydraPure Performance Bronze alloy, known for its resistance to dezincification. It provides quick and easy connections using a press-to-connect system, ensuring a secure fit. The valve's design creates a permanent watertight seal without the need for flame, solder, or flux. It is ideal for potable water applications ensuring safe delivery for human consumption.

• Full port design for maximum flow.
• Temperature rating of two hundred fifty degrees Fahrenheit.
• Blowout-proof stem for increased safety.

Product Highlights

This valve features an inboard bead and EPDM O-ring that enhance its functionality, making it suitable for commercial, industrial, and residential water systems. Its design meets several applicable standards.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NFB840X6

Technical Specifications

• Model: PC-585-80-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1/2 inch
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Port Style: Full Port
• Pressure Rating: 250 PSI Non-Shock CWP
• Temperature Rating: 250 degrees Fahrenheit
• Application: Process Water System for Commercial, Industrial, and Residential, HVAC, Potable Water
