Nibco NF99KD8 PC-FP-600A-D-LF 3/4 in. Brass Full Port Female Press Ball Valve

Product Description

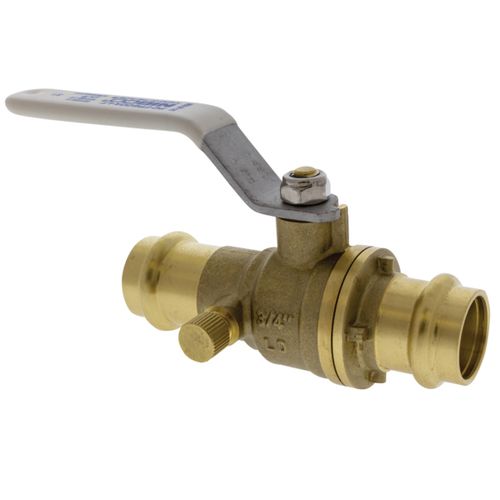

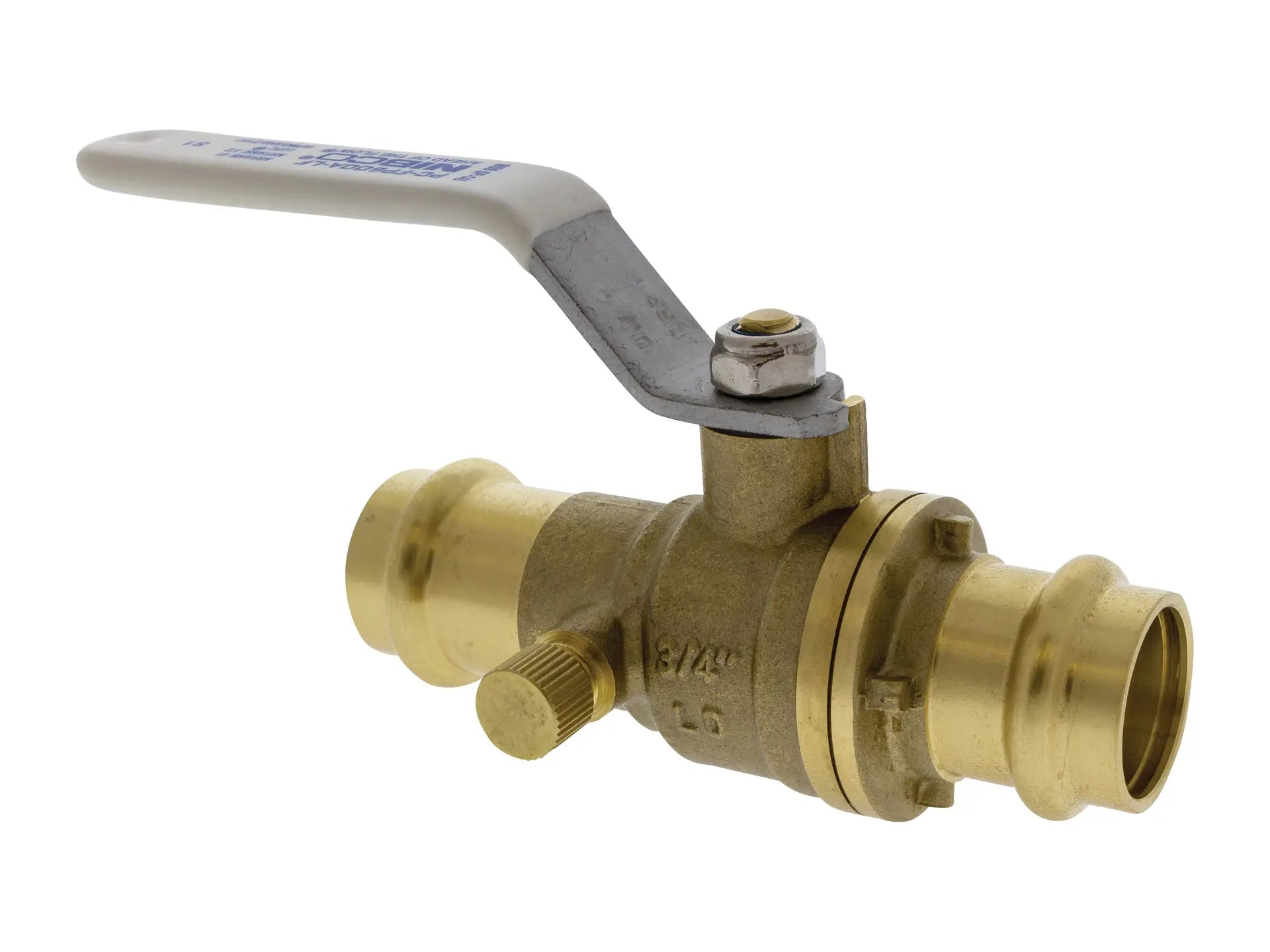

The NIBCO NF99KD8 PC-FP-600A-D-LF is a 3/4 in. brass full port female press ball valve. Designed with press-to-connect end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Features a blowout-proof stem, reinforced PTFE seat rings, and a press leak-detection feature. Dezincification resistant.

• Maximum service temperature 250° F
• Copper-to-copper connections
• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Full port
• Press leak-detection feature

Product Highlights

This NIBCO ball valve ensures a clean, permanent, watertight seal in seconds, with no flame, solder or flux. Lead-free and dezincification resistant.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF99KD8
• Country of Origin: CN

Technical Specifications

• Material: Brass
• Port Type: Full Port
• End Connection 1: Press
• End Connection 2: Press Female
• Size: 3/4 in.
• MPN: NF99KD8
• Brand: Nibco
• Lead Free: Yes
• Connection Type: Press x Press
• Handle Style: Lever
• Connection Method: Press
• Type: Ball Valve
• Valve Size: 3/4
• Valve Operator: CS Standard Lever Handle
• Body Material: Lead-Free Brass
• Connection Size: 3/4 in.
• Operator Type: Quarter-Turn Lever Handle
• Valve Type: Ball Valve
• Manufacturer: NIBCO
• Part Number: NF99KD8
• Model: PC-FP600A-D-LF
• Connection: 3/4" Female Press x Female Press
• Cold Working Pressure: 250 psi
• Maximum Temperature: 250°F
• Port Style: Full
• Stem Design: Blowout-Proof
• Seat Material: PTFE
• Valve Ball Body Type: Two-Piece
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 6.05"
• Width: 2.85"
• Height: 2.22"
