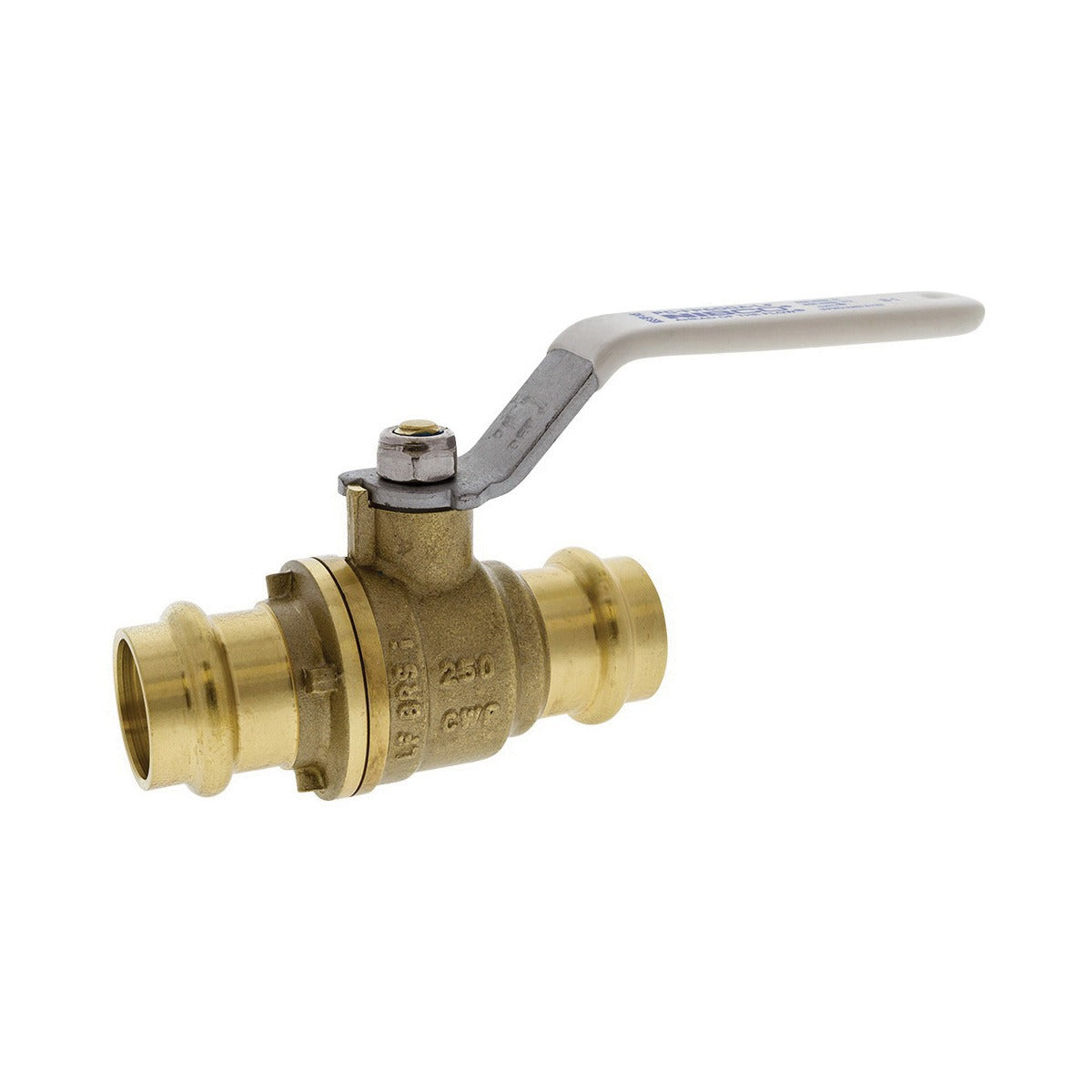

Nibco NF998X8 3/4 Inch Female Press Ball Valve Brass

Product Description

The NIBCO NF998X8 is a 3/4 inch nominal full port ball valve designed for press-fit installation in plumbing and hydronic systems. The brass body provides corrosion resistance in potable water and heating applications. EPDM/PTFE softgoods deliver reliable sealing performance across a range of operating temperatures. The female press end style allows tool-based installation without open flame, making it well suited for residential and light commercial work where soldering is restricted or impractical. Licensed plumbers and hydronic technicians are the primary installers of this valve type.

This valve is configured for female press connections on both ends, compatible with standard press-fit copper tubing systems. The full port design minimizes flow restriction, which is important in hydronic loops, domestic water distribution, and other applications where pressure drop must be kept low. The low-lead brass construction aligns with lead-free requirements for potable water service. It is appropriate for use in residential and commercial plumbing systems where a shutoff or isolation point is needed.

Key Features

• 3/4 inch nominal full port design for minimal flow restriction
• Female press end style for flame-free, tool-based installation
• Brass body construction for durability in water service applications
• EPDM/PTFE softgoods for dependable sealing performance
• Low-lead construction suitable for potable water systems

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4 inch press-fit copper piping systems in residential and commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the water supply before installing or servicing this valve. Press connections require an approved press tool and the correct jaw or ring for the fitting size. Verify that the piping system is fully depressurized and drained before completing the press joint to ensure a proper seal.

Technical Specifications

• Nominal Size: 3/4 inch
• End Style: Female Press
• Body Material: Brass
• Softgoods Material: EPDM/PTFE
• Port Type: Full Port
• Lead-Free Compliant: Yes

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF998X8
