NIBCO NF998KB PC-FP-600A-LF 1-1/4 in DZR Copper Alloy Full Port Press 250# Ball Valve

Product Description

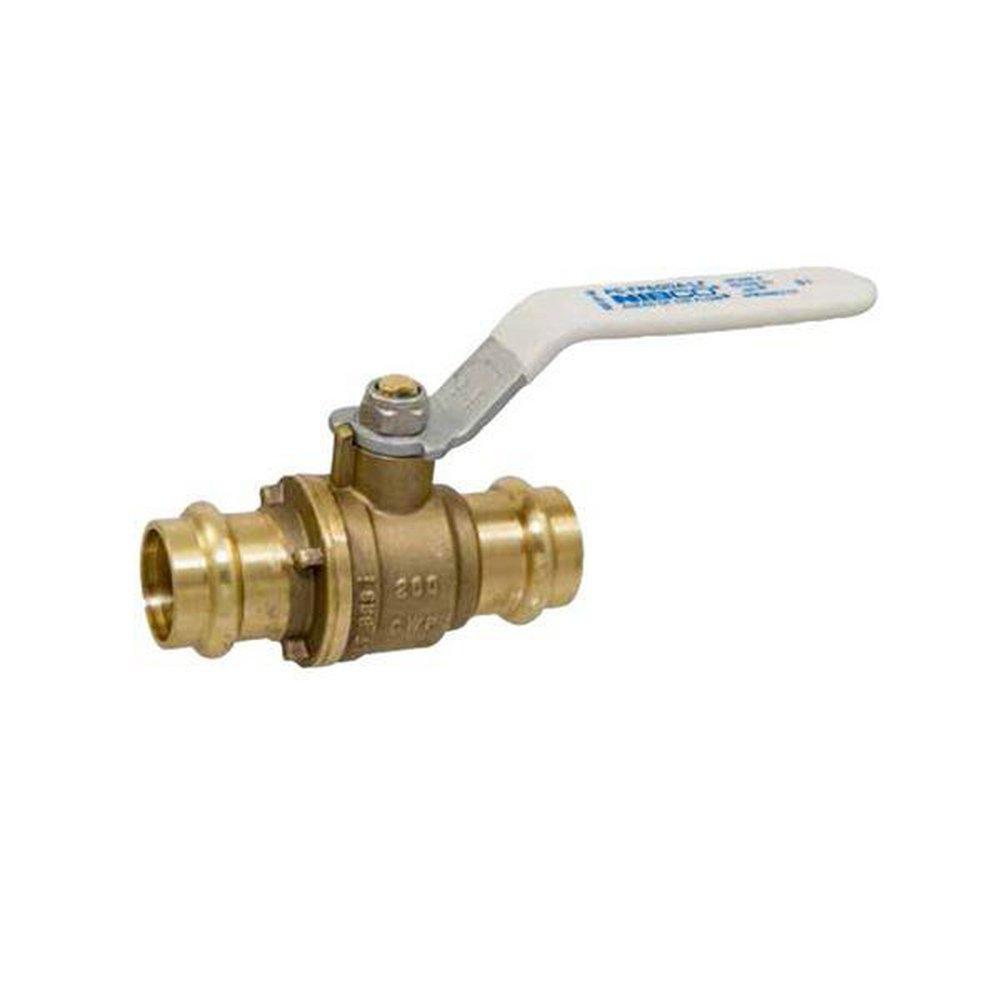

The NIBCO PC-FP-600A-LF 1-1/4 in DZR Copper Alloy Full Port Press 250# Ball Valve, MPN NF998KB, provides reliable control for hot and cold water systems. The valve is designed for press-fit installation, ensuring a secure connection without the need for soldering. It meets a pressure rating of 250 psi, suitable for various plumbing and HVAC applications.

• Full port design for optimal flow.
• Lead-free and dezincification resistant materials.
• Standard lever handle for ease of operation.

Product Highlights

This valve is useful in drinking water systems, HVAC systems, and for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model Number: NF998KB

Technical Specifications

• Nominal Size: 1-1/4 in
• Pressure Rating: 250 psi CWP
• Temperature Rating: 250 deg F
• Orifice Size: 1.386 in
• Media: Hot and Cold Water
• Dimensions: 7.06 in L x 2.24 in W x 3.54 in H
• Body Material: Forged DZR Brass
• Ball Material: Polished Chrome Brass
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM/PTFE
• Inlet to Outlet Length: 4.43 in
• Top to Inlet Center: 2.52 in
• Actuator Type: Standard Lever Handle
• End Style: Female Press
• Port Type: Full
