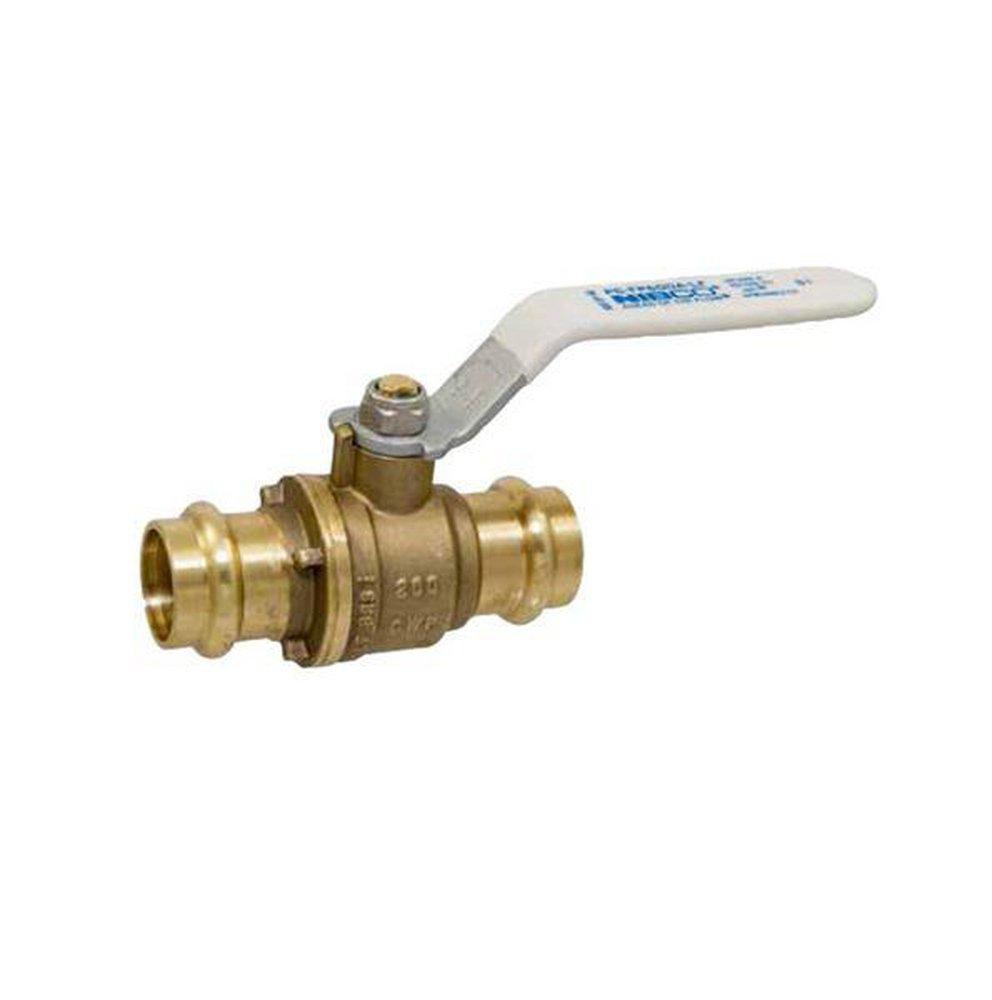

NIBCO NF998K8 PC-FP-600A-LF Full Port Press Ball Valve 250#

Product Description

The NIBCO PC-FP-600A-LF, MPN NF998K8, is a three quarter inch DZR copper alloy full port press ball valve. This valve is designed for reliable connections in hot and cold water systems. It features a blowout-proof stem and is compliant with low lead regulations.

• Certified for hot and cold water applications
• Compatible with copper-to-copper connections
• Full port design for maximum flow

Product Highlights

This valve is ideal for HVAC applications and provides a leak-detection feature. It ensures a strong, dependable connection while allowing for easy isolation and throttling.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer: NIBCO INC

Technical Specifications

• MPN: NF998K8
• Nominal Size: 3/4 in
• Pressure Rating: 250 psi
• Body Material: Forged DZR Brass
• Actuator Type: Standard Lever Handle
• Orifice Size: 0.883 in
• Dimensions: 5.69 in L x 1.56 in W x 2.75 in H
• Media: Hot and Cold Water
• Temperature Rating: 250 deg F
• End Style: Female Press
• Softgoods Material: EPDM/PTFE
