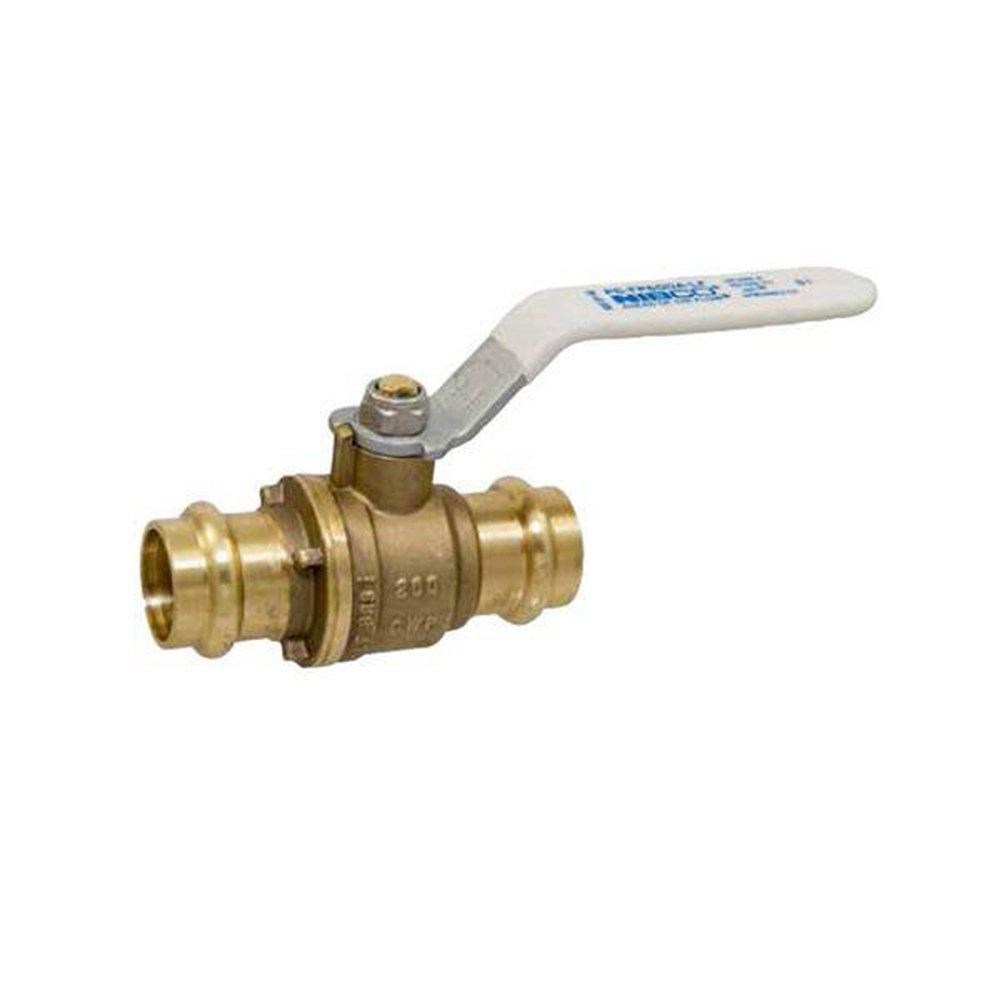

NIBCO NF998K6 PC-FP600A-LF 1/2 in. DZR Copper Alloy Full Port Press 250# Ball Valve

Product Description

The NIBCO NF998K6 PC-FP600A-LF is a 1/2 inch DZR copper alloy ball valve designed for reliable fluid control in various applications. This valve features a full port design for optimal flow and is rated for a maximum pressure of 250 psi. It is suitable for hot and cold water services and is compliant with industry standards.

• Full port design for maximum flow.
• Lead-free and dezincification resistant.
• Blowout-proof stem for enhanced safety.

Product Highlights

The NIBCO press system ensures copper-to-copper connections, making it ideal for general plumbing applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NF998K6

Technical Specifications

• Nominal Size: 1/2 inch
• Pressure Rating: 250 psi
• Body Material: Forged DZR Brass
• Ball Material: Polished Chrome Brass
• Port Type: Full
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 2.87 inches
• Top to Inlet Center: 2.09 inches
• Orifice Size: 0.631 inches
