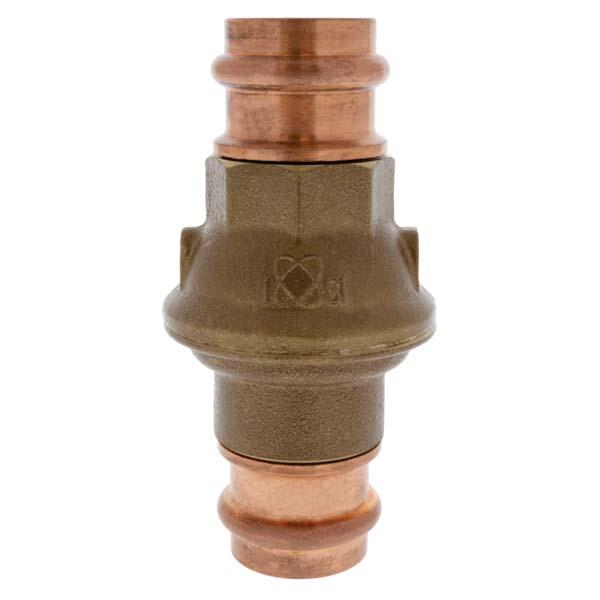

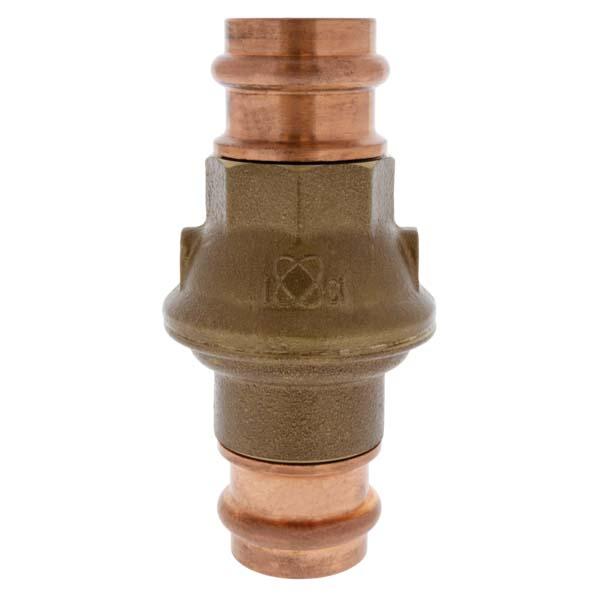

Nibco nf932xa 1 Inch Press Spring Check Valve Lead Free

Product Description

The NIBCO nf932xa is a lead-free bronze in-line spring check valve designed for press-fit copper piping systems. It uses press x press female end connections with an inboard bead and EPDM O-rings that compress to form a permanent, watertight seal when a press-fit tool is applied. No flame, solder, or flux is required. The valve features a resilient disc and spring actuation to control flow direction, operating at up to 250 psi cold working pressure and withstanding temperatures up to 300 degrees F at 100 psi. Licensed plumbers and pipefitters install this valve in residential and light commercial potable water lines.

This valve is suited for in-line installation on 1-inch copper press piping systems in residential and commercial plumbing applications. Its spring-actuated lift design prevents backflow without requiring a horizontal installation orientation. The lead-free bronze construction and NSF/ANSI/CAN-61 and 372 certification make it appropriate for potable water service. It is particularly useful in situations where open flame is restricted or where speed of installation is a priority.

Key Features

• Press x press female end connections eliminate the need for flame, solder, or flux
• EPDM O-rings with inboard bead create a permanent, watertight seal under press-fit tool pressure
• Spring-actuated resilient disc provides reliable backflow prevention
• 250 psi cold working pressure rating with 300 degrees F maximum temperature rating at 100 psi
• Dezincification-resistant lead-free bronze body
• NSF/ANSI/CAN-61 and 372 certified for potable water systems
• Conforms to MSS SP-139

Compatibility

Designed as an OEM-style replacement or new-install check valve for 1-inch copper press piping systems in potable water applications where press-fit end connections are specified.

Installation Notes

Installation must be performed by a licensed plumber using a compatible press-fit tool. Shut off the water supply and relieve system pressure before installing or servicing this valve. Ensure the pipe end is clean, deburred, and properly marked to the insertion depth before pressing. Follow all applicable local plumbing codes and ASTM B88 tube standards when selecting pipe for use with press-fit fittings.

Technical Specifications

• Cold Working Pressure: 250 psi (17.2 bar) non-shock
• Maximum Temperature: 300 degrees F at 100 psi
• End Connections: Press x press female
• Valve Type: In-line lift type spring check
• Disc Type: Resilient
• Actuation: Spring actuated
• Body Material: Lead-free dezincification-resistant bronze
• Seat Material: Teflon
• Seal Material: EPDM O-rings
• Certifications: NSF/ANSI/CAN-61 and 372, MSS SP-139
• Size: 1 inch

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: nf932xa
