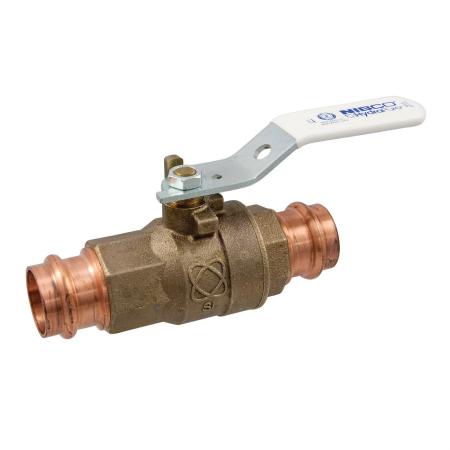

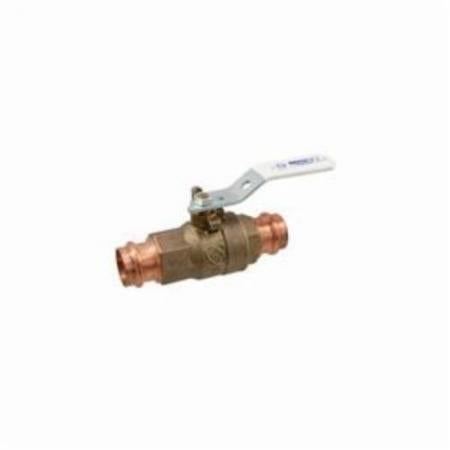

NIBCO NF84HXC PC-585-66-LF 1-1/2 PRESS BV PXP SS TRIM

Product Description

The NIBCO NF84HXC is a PC-585-66-LF Ball Valve. It features a two-piece design and is suitable for systems delivering water for human consumption. The valve has a nominal size of one and a half inches and connects female press to female press. It operates under a pressure rating of 250 psi and can handle temperatures up to 250 degrees Fahrenheit.

• Features a blowout-proof stem
• Includes a press leak-detection feature
• Dezincification resistant with copper-to-copper connections

Product Highlights

This valve is essential for various plumbing systems, offering reliable connections and safety features. The reinforced PTFE seat rings ensure durability and efficiency.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UOM: EACH

Technical Specifications

• Actuator Type: Standard Lever
• Ball Material: Stainless Steel
• Body Material: Silicon Bronze
• End Style: Female Press
• Inlet to Outlet Length: 7.56 inches
• Media: Water
• Nominal Size: 1-1/2 inches
• Orifice Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Series: PC-585-66-LF
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 250 degrees Fahrenheit
• Top to Inlet Center: 3.32 inches
• Trim Material: Stainless Steel Stem
• Type: 2-Piece
